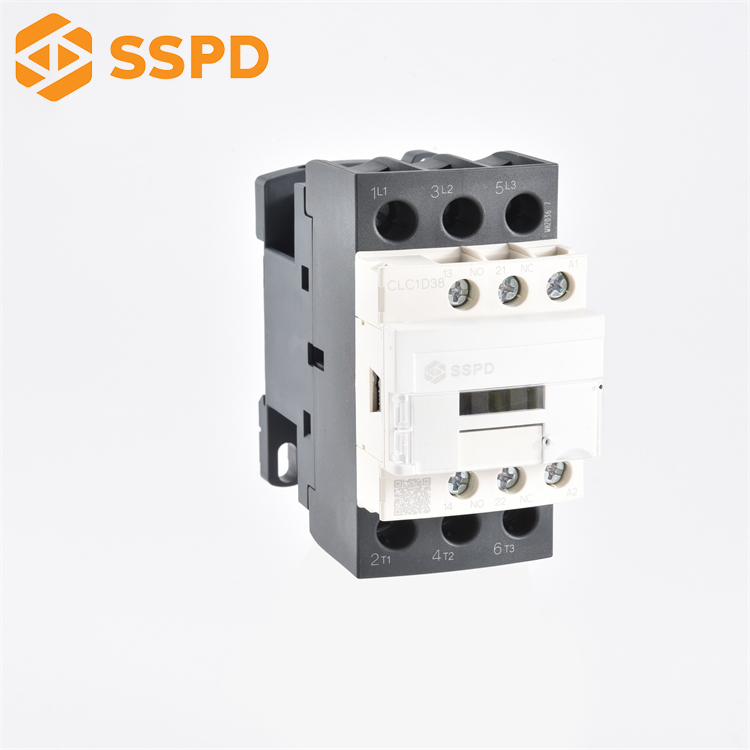

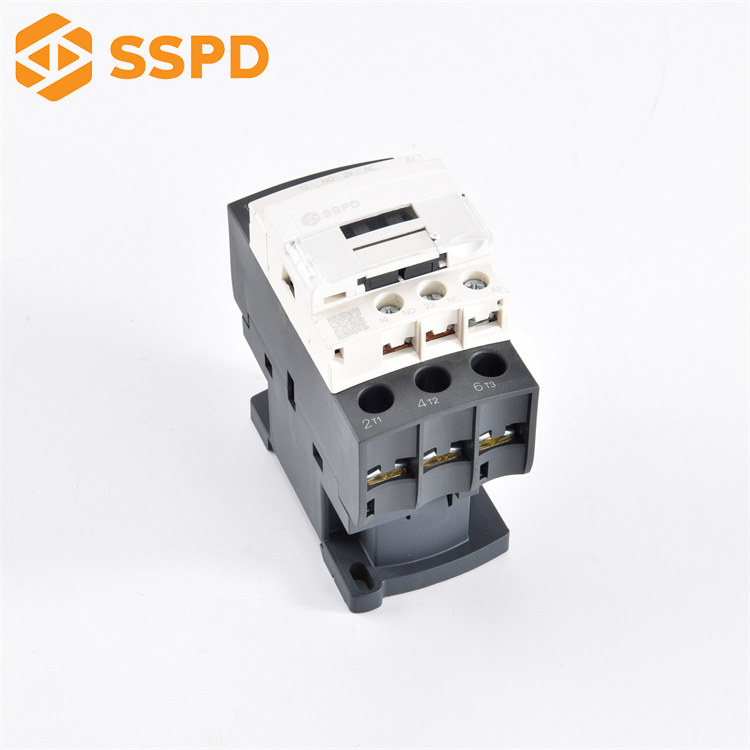

AC Contactor 9-95A
This AC contactor series is suitable for use in circuits up to 690V AC, 50/60Hz, with a rated current of up to 95A. It can be combined with appropriate thermal overload relays to protect load circuits.
Technical Specifications
Product Overview
Professional AC Contactor Series
The CLC1D series AC contactors are designed for robust performance in circuits up to 690V AC at 50/60Hz. Ranging from 9A to 95A, these units are engineered for efficient motor control, power switching, and circuit protection when paired with thermal overload relays. With high electrical endurance and a compact design, they provide a reliable solution for demanding industrial and commercial electrical environments.
Technical Specifications
Control Circuit Voltages
24V AC110V AC220V AC380V AC415V AC
Key Performance Metrics
6 kV
Impulse Withstand Voltage (Uimp)
32 A
Rated Current (Ith)
- Rated Operational Current (AC-3, 440V)
- 9A12A18A25A32A38A40A50A65A80A95A
- Standards & Certifications
- IEC 60947VDEGBCE
Power Ratings
3-Phase Motor Power Ratings (kW) - AC-3
| Voltage | D09 | D18 | D32 | D95 |
|---|---|---|---|---|
| 220V/230V | 2.2 | 4 | 7.5 | 25 |
| 380V/400V | 4 | 7.5 | 15 | 45 |
| 415V | 4 | 9 | 15 | 45 |
