AC Contactor
This AC contactor is applicable for circuits up to 1000V AC. It can be used for long distance breaking circuits and frequently starting or controlling motors.
Technical Specifications
Overview
High-Performance AC Contactor

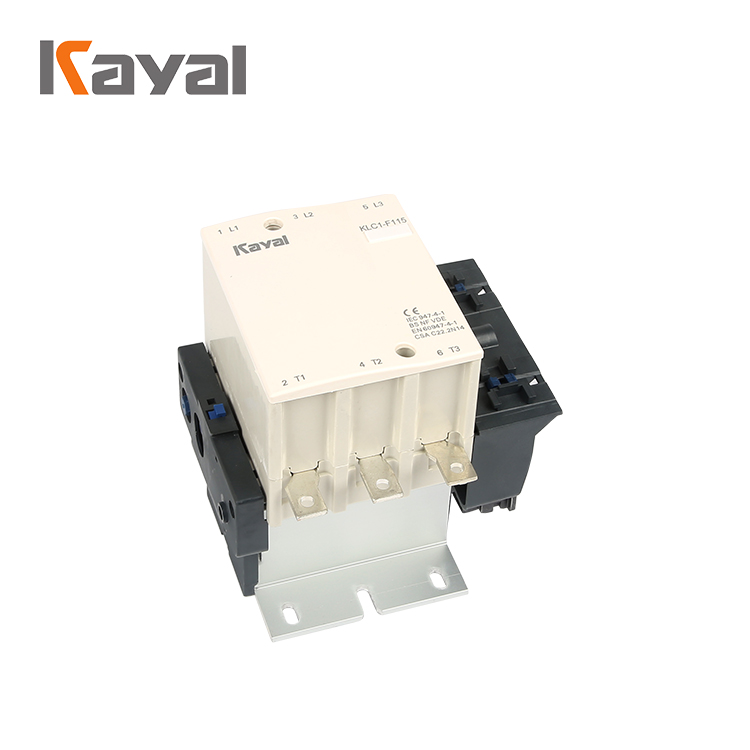

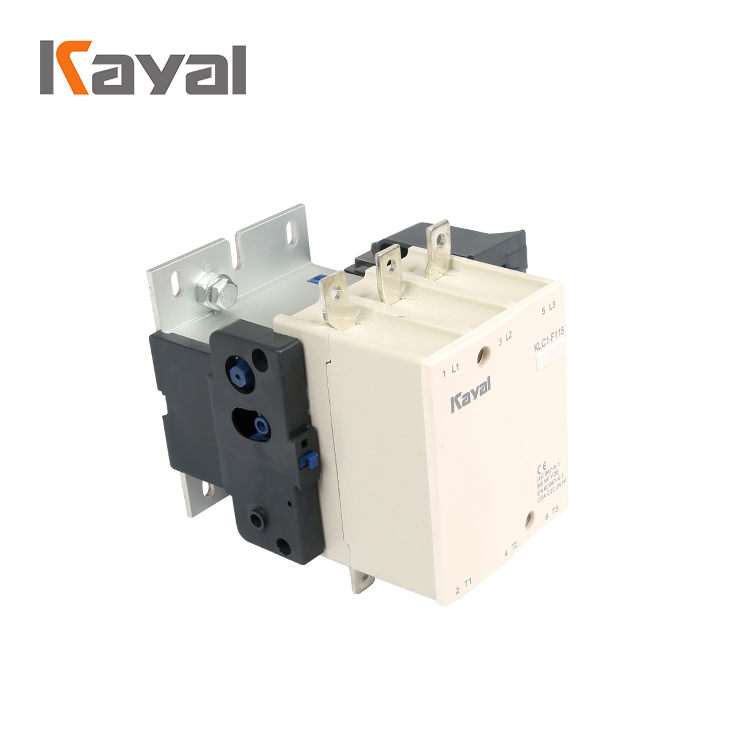

The LC1-F series AC contactor is a professional-grade electrical switching device designed for reliable control of AC power circuits. It is suitable for applications up to 1000V AC at 50Hz or 60Hz, supporting motor starting and power distribution control. With robust construction and compliance with international safety standards, this contactor ensures long-term operational stability in demanding industrial environments.
Technical Specifications
- Rated Voltage
- Up to 1000V AC
- Frequency
- 50Hz60Hz
- Rated Current Range
- Up to 780A
- Standards Compliance
- IEC 947-4-1EN 60947-4-1BS NF VDECSA C22.2N14
Performance Data
Model Performance Metrics
| Model | AC-3 Current (A) | AC-1 Current (A) |
|---|---|---|
| LC1-F115 | 115 | 200 |
| LC1-F150 | 150 | 250 |
| LC1-F185 | 185 | 275 |
| LC1-F225 | 225 | 315 |
| LC1-F265 | 225 | 350 |
3-Phase Motor Power Ratings (AC-3 kW)
| Voltage | F115 | F150 | F185 | F225 | F265 |
|---|---|---|---|---|---|
| 220/230V | 30 | 40 | 55 | 110 | 75 |
| 380/400V | 55 | 75 | 90 | 110 | 132 |
| 415V | 59 | 80 | 100 | 110 | 140 |
