AC Contactor
AC contactors are electromechanical devices used to switch electrical circuits. They are commonly employed in motor control and power distribution systems for controlling high-current loads with a low-current control signal.
Technical Specifications
Product Overview
High-Performance AC Contactor
This AC contactor is engineered for reliable electrical circuit switching in industrial and commercial environments. Designed for AC 50/60Hz systems, it supports rated insulation voltages up to 660V and operating voltages up to 690V. It is an essential component for long-distance circuit breaking and motor control, offering robust construction for demanding applications.
Technical Specifications
- Rated Insulation Voltage
- 660 V
- Max Operating Voltage
- 690 V
- Operating Frequency
- 50Hz60Hz
Performance Data
AC-1 Duty Current Ratings
| Model | Current |
|---|---|
| GMC-9 | 20A |
| GMC-12 | 20A |
| GMC-18 | 25A |
| GMC-22 | 32A |
| GMC-32 | 50A |
| GMC-40 | 60A |

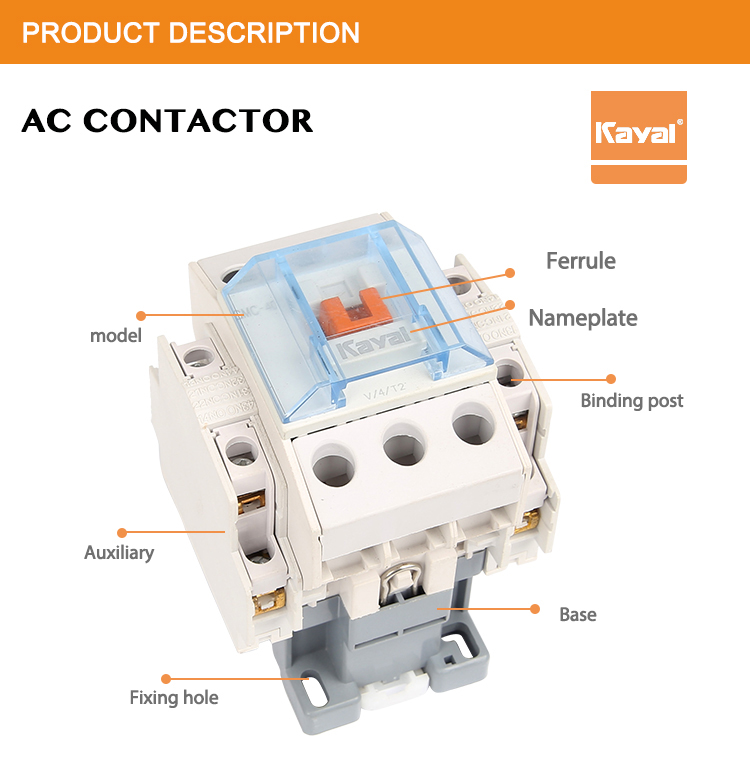

Construction & Design
Key Design Features
- Robust mounting base
- Clearly labeled binding posts
- Integrated auxiliary contact
- Compact form factor
- Secure wire termination ferrules
Applications
Typical Applications
- Industrial automation control
- HVAC systems
- Building automation
- Elevator control systems
- Power distribution boxes
- Electronic medical equipment
