AC Contactor
This AC contactor is an electrical switching device used for controlling AC power circuits. It is suitable for various industrial applications requiring reliable and safe switching of electrical loads.
Technical Specifications
Product Overview

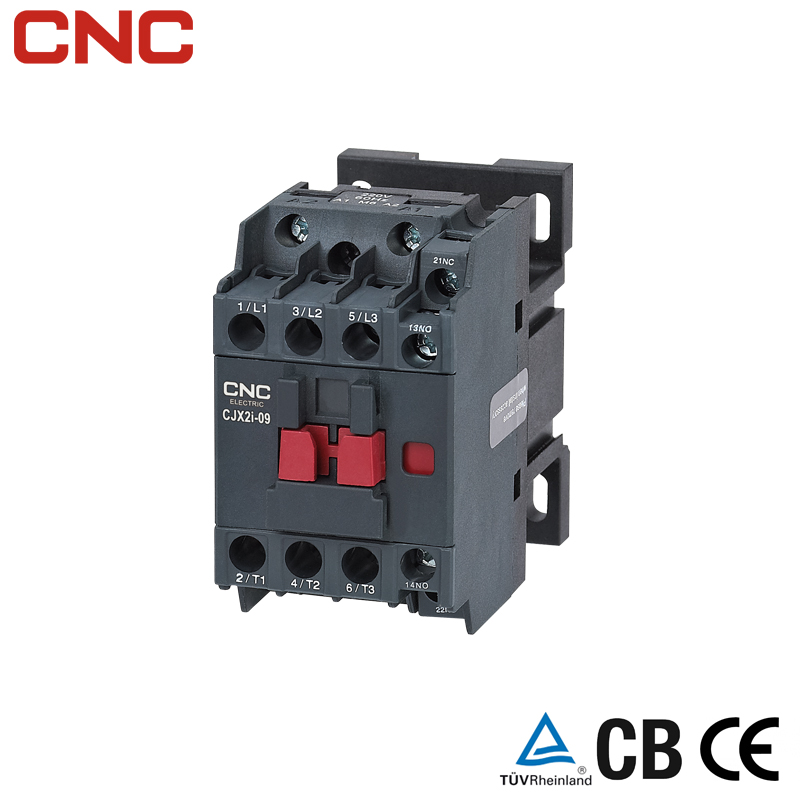

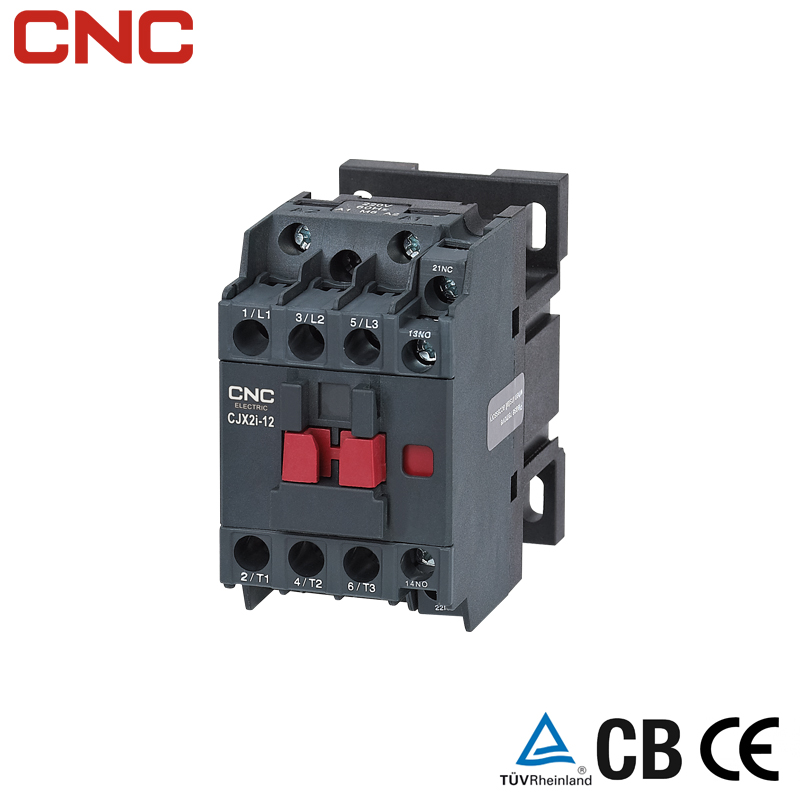

CJX2i Series AC Contactor
The CJX2i series AC Contactor features a novel, compact structure designed for frequent starting and controlling of AC motors. It allows for efficient switching of circuits at long distances and can be combined with thermal relays to form a magnetic motor starter. This robust device is engineered for reliable performance in industrial and commercial settings, ensuring safe operation across various electrical loads.
Technical Standards
- Compliance
- IEC 60947-1IEC 60947-4-1CETÜV Rheinland
Technical Specifications
Available Models
- CJX2i-09
- CJX2i-12
- CJX2i-18
Terminal Layout
| Connection Type | Terminals |
|---|---|
| Main Power Input | 1/L1, 3/L2, 5/L3 |
| Main Power Output | 2/T1, 4/T2, 6/T3 |
| Auxiliary Contacts | 13NO, 14NO, 21NC |
Applications
Suitable Applications
AC Motor ControlHeating SystemsLighting CircuitsCapacitor BanksIndustrial Switching
