AC Contactor
This AC contactor is designed for switching electrical circuits in various applications. It is suitable for use in HVAC systems, motor control, and lighting systems.
Technical Specifications
Overview

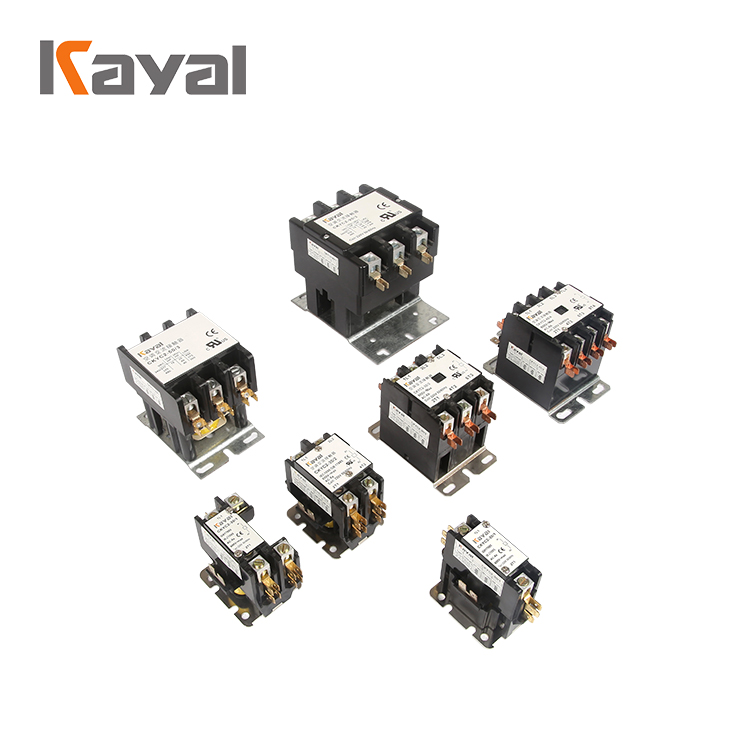

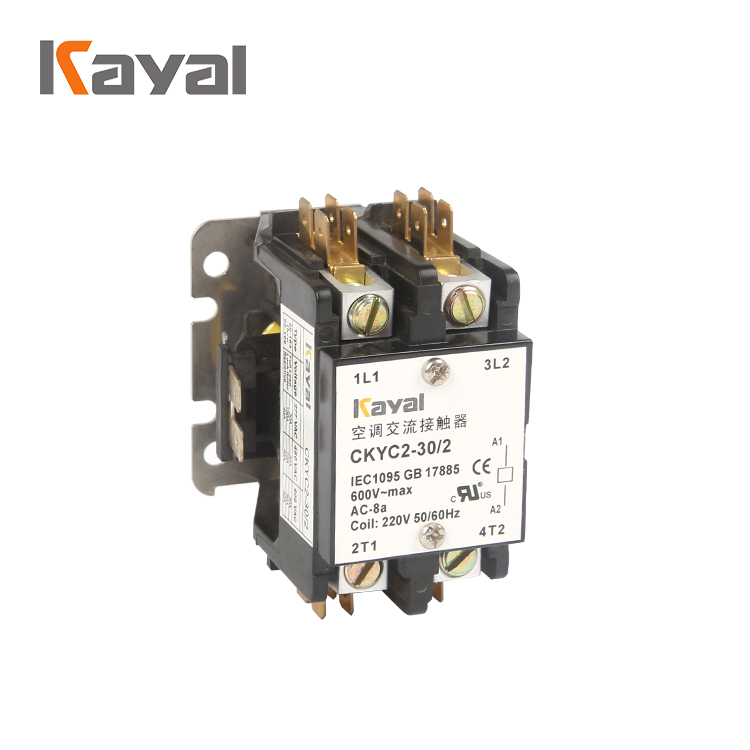

Definite Purpose AC Contactor
This DP AC Contactor is specifically designed for high-demand HVAC applications, including air conditioning and heating equipment. It features a low VA coil for cooler operation and extended service life, alongside a universal mounting bracket for easy installation in existing systems. Engineered for reliability, it utilizes double break contacts to ensure positive make and break actions across 1 to 4 pole configurations.
Key Features
Performance Features
- Low VA coil for cooler operation
- Quiet operational performance
- Universal style mounting bracket
- Double brake contacts for positive switching
- Screw terminal or pressure connectors
- Double 1/4 inch quick connects
Technical Specifications
Coil Insulation
- Rated Current Range
- 20A thru 90A
- Poles
- 1-4 Pole
- Coil Frequency
- 50Hz60Hz
- Maximum Voltage
- 600 V
Environmental & Materials
- Operating Temperature
- -40°F to 150°F
- Insulating Material
- Electrical-grade thermosetting resin
Operational Data
Endurance Ratings
Conforms to ARI specifications. Select models achieve 200,000 cycles (make LRA at .5pf, break 125% of FLA at .75pf), while others achieve 100,000 cycles at rated voltage.
- Duty Cycle
- Continuous
- Pickup Voltage
- 85% of nominal coil voltage
Compliance
- Standards & Certifications
- IEC1095GB 17885CEARI Specifications
Application Areas
Typical Installation Sites
- HVAC Systems
- Industrial Control Panels
- Elevator Control Rooms
- Telecommunications Rooms
- Data Centers
- Hospital Operating Rooms
