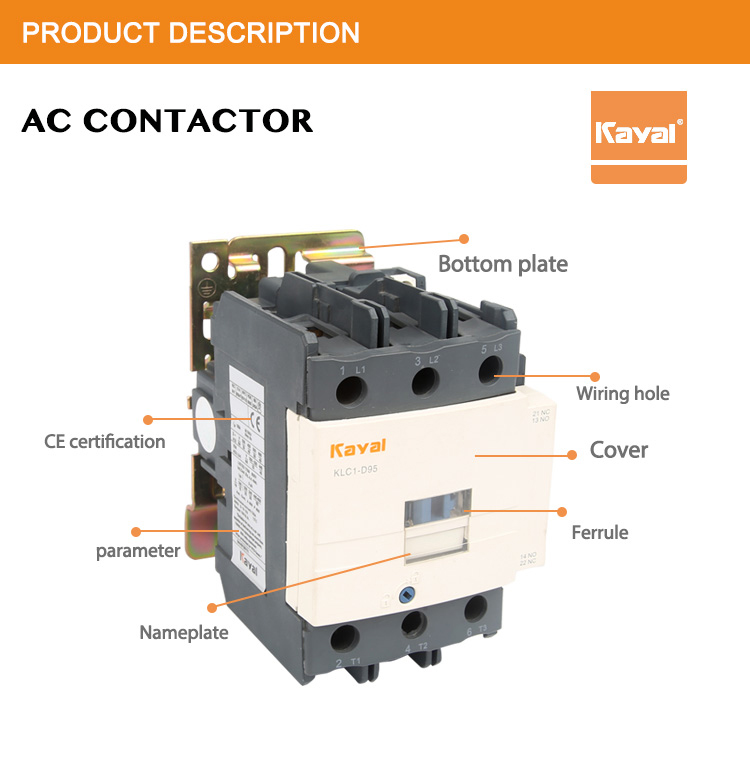

AC Contactor
This AC contactor is suitable for circuits up to 660V AC. It is used for making, breaking, frequently starting, and machine-interlocking devices.
Technical Specifications
Overview

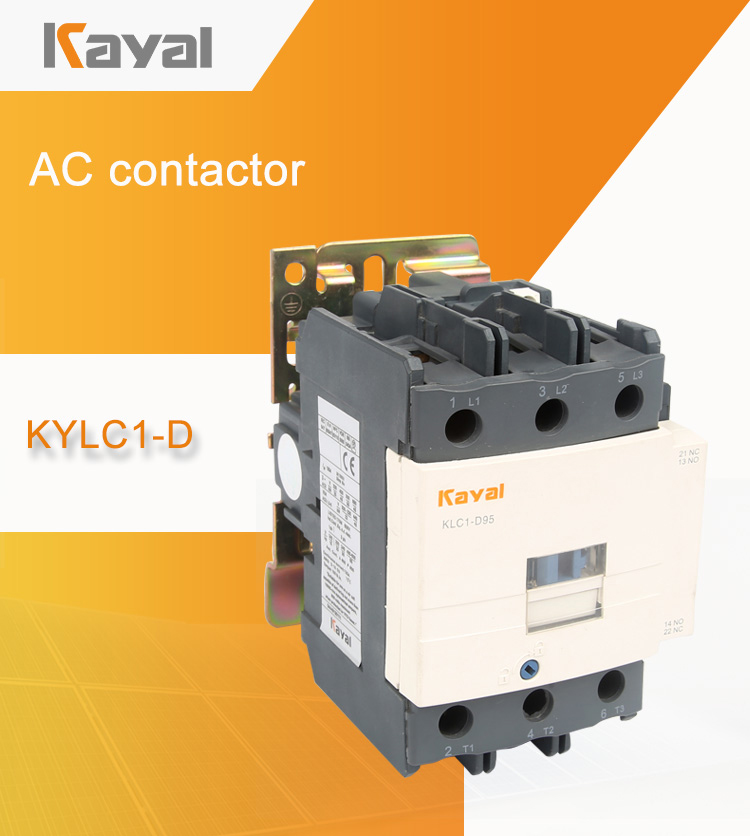

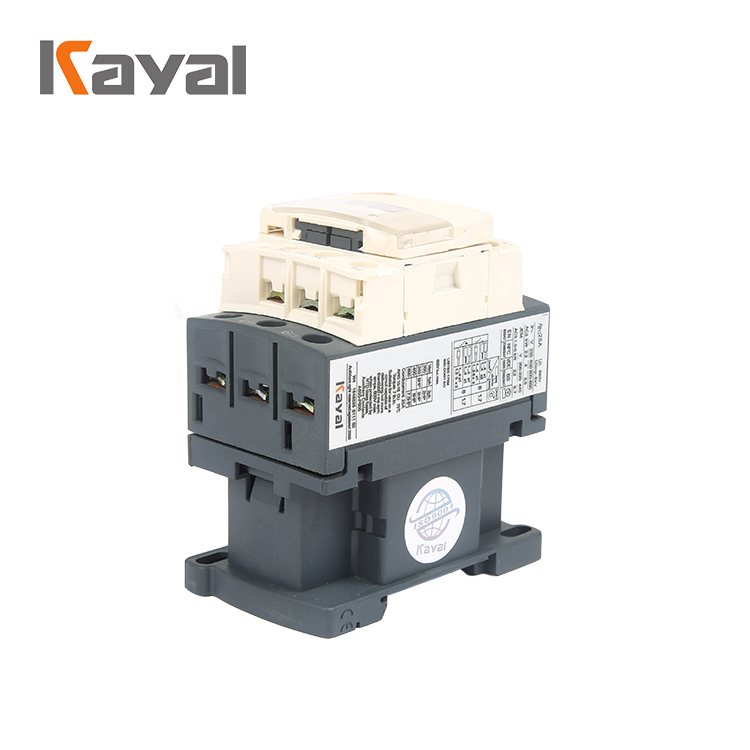

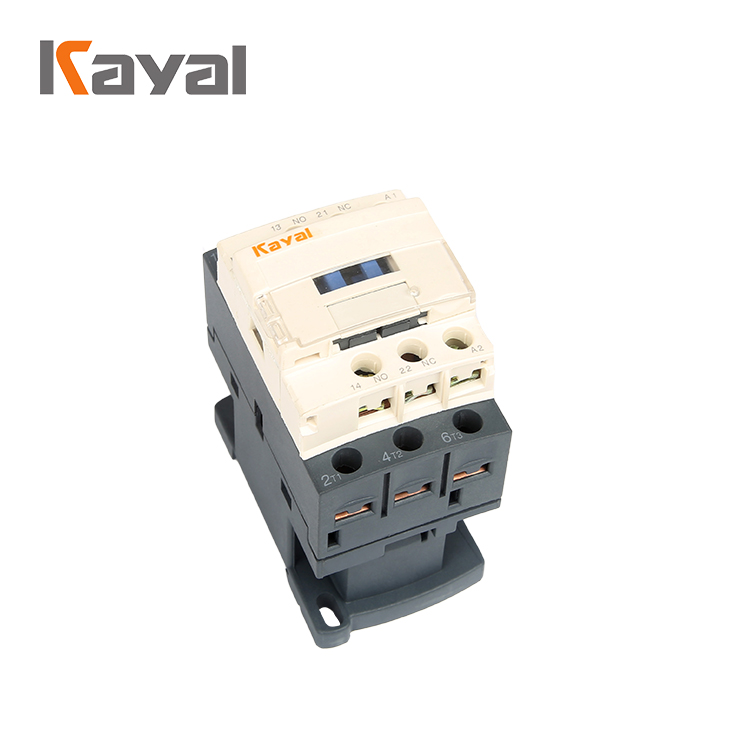

LC1-D Series AC Contactor
The LC1-D series AC contactor is a versatile electrical switching device engineered for reliable performance in industrial and commercial circuits. Supporting rated voltages up to 660V and frequencies of 50/60Hz, it is designed for frequent starting, breaking, and interlocking of electrical equipment. This unit is compatible with thermal relays for electromagnetic starter configurations and adheres to international standards including IEC947-2, VDE0660, and BS5442.
Technical Specifications
Rated Working Current (AC-3)
9 A
LC1-D09
12 A
LC1-D12
18 A
LC1-D18
25 A
LC1-D25
Motor Power Ratings (AC-3)
| Voltage | LC1-D09 (kW) | LC1-D12 (kW) | LC1-D18 (kW) | LC1-D25 (kW) |
|---|---|---|---|---|
| 220/230V | 2.2 | 3 | 4 | 5.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 |
| 415V | 4 | 5.5 | 9 | 11 |
| 500V | 5.5 | 7.5 | 10 | 15 |
| 660/690V | 5.5 | 7.5 | 10 | 15 |
Application & Features
Key Advantages
- Compact design for space-saving installation
- Overload protection capability
- Double wire disconnect feature
- High switching capacity
- Suitable for star-delta starter configurations
- Suitable Environments
- Distribution BoxesComputer CentersTelecommunications RoomsElevator ControlBuilding AutomationIndustrial ControlMedical Facilities
