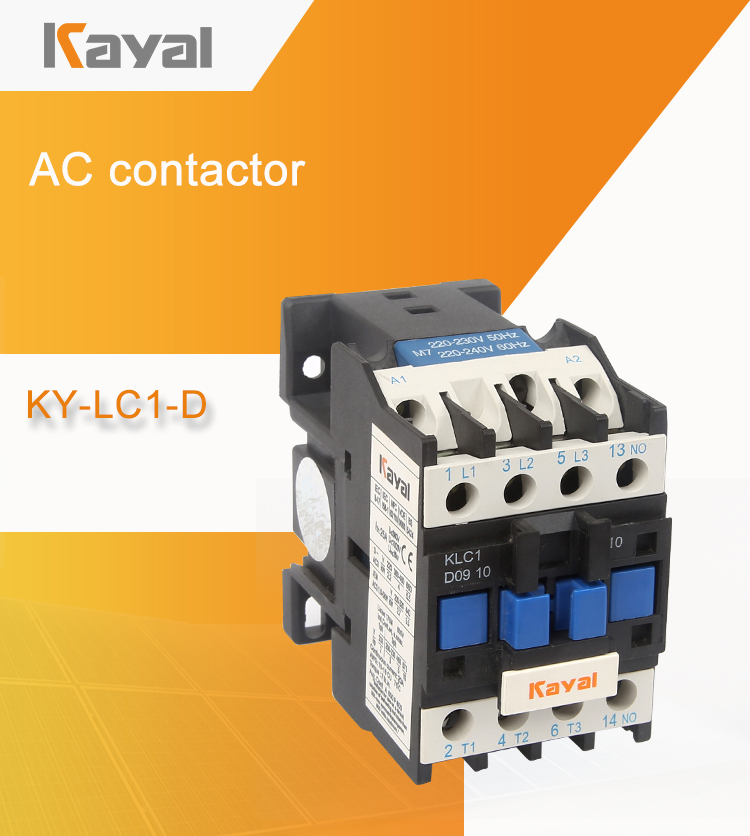

AC Contactor
This AC contactor is designed for circuits up to 660V, AC 50/60Hz, and rated current up to 95A. It is suitable for frequent starting, breaking, and machine-interlocking applications, and can be combined with a thermal relay to form an electromagnetic starter.
Technical Specifications
Overview
Professional Grade AC Contactor
The LC1-D series AC Contactor is designed for reliable switching in circuits up to 660V. It is an essential component for industrial and commercial motor control, supporting frequent starting and machine-interlocking applications. Built to international standards, this contactor offers robust performance for demanding electrical environments, including motor control, lighting, and heating systems.
Technical Specifications
Coil Voltage
- 220-230V (50Hz)
- 220-240V (60Hz)
- Compliance Standards
- IEC947-2VDE0660BS5442CE Certified
- Rated Voltage
- 660 V
- Frequency
- 50Hz60Hz
Performance Metrics
Standard Power Ratings (3-Phase Motors)
| Voltage | LC1-D09 (kW) | LC1-D12 (kW) | LC1-D18 (kW) | LC1-D25 (kW) |
|---|---|---|---|---|
| 220/230V | 2.2 | 3 | 4 | 5.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 |
| 415V | 4 | 5.5 | 9 | 11 |
| 500V | 5.5 | 7.5 | 10 | 15 |
Rated Working Current (AC-3)
9 A
LC1-D09
12 A
LC1-D12
18 A
LC1-D18
25 A
LC1-D25
Features
Key Features
- Compact, space-saving design
- Screw terminal connections
- Auxiliary contacts included
- Suitable for star-delta starters
- Compatible with thermal relays
