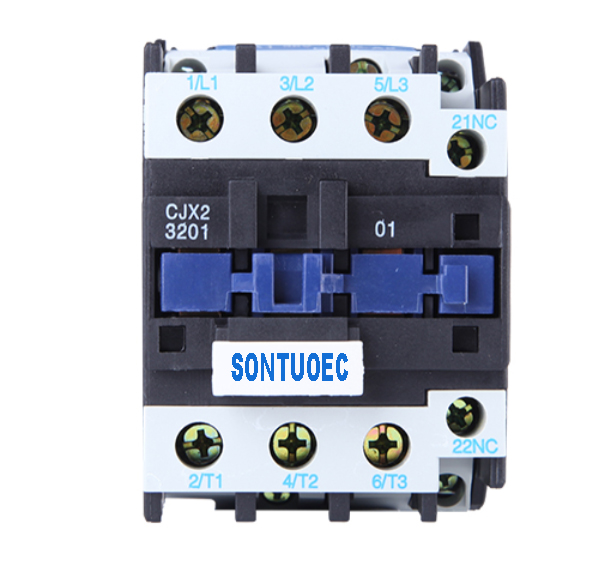

AC Contactor
AC contactors are used to switch AC power in electrical applications. They feature main poles and corresponding load terminals, along with auxiliary contacts for control circuit integration.
Technical Specifications
Overview

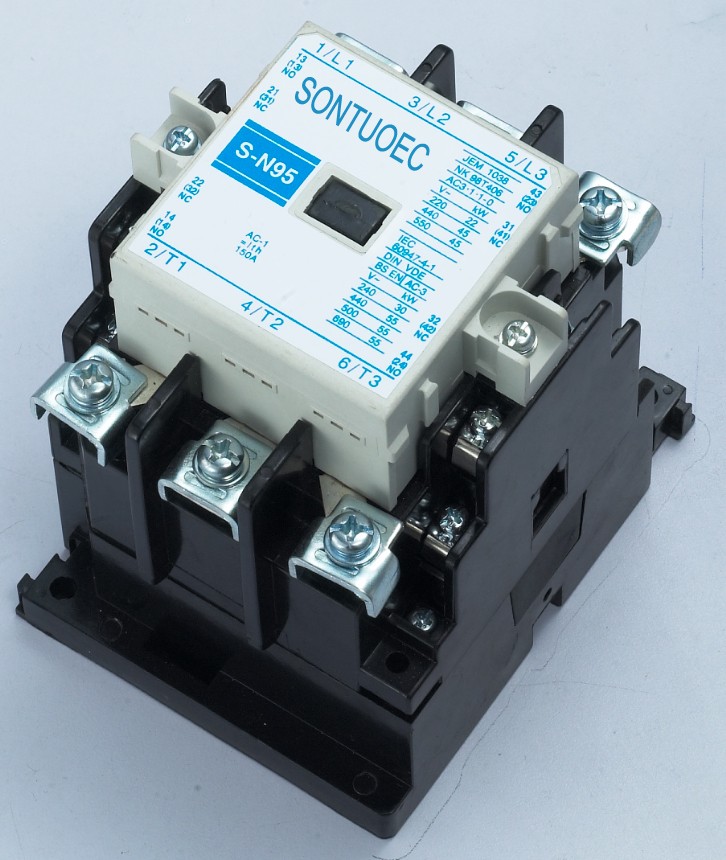

Industrial AC Contactor
This high-performance AC contactor is engineered for reliable circuit control in industrial environments, supporting rated voltages up to 660V AC. Designed for frequent starting and control of AC motors, it provides versatile integration options, including compatibility with auxiliary contact blocks, timer delays, and mechanical interlocking devices. Built to comply with international standards like IEC 60947-1, this unit ensures robust performance and safety in demanding electrical applications.
Technical Specifications
Compliance Standards
IEC 60947-1IEC 60947-4-1DIN VDEBS EN AC-3
- Rated Voltage
- 660 V
- Max Rated Current
- 95 A
- Operating Frequency
- 50Hz60Hz
Performance Metrics
Key Performance Ratings
150 A
AC-1 Rated Thermal Current
55 kW
Max Power Capacity (690V)
Power Ratings by Voltage
| Voltage | Power |
|---|---|
| 220V | 22kW |
| 240V | 30kW |
| 440V | 45kW |
| 500V | 55kW |
| 690V | 55kW |
Physical Dimensions
Dimensions (CJ20-100)
- Height: 147mm
- Width: 122mm
- Depth: 154mm
