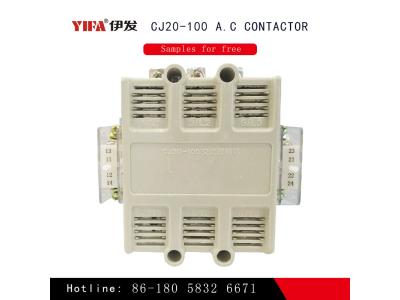

AC Contactor 100A 690V 3-Pole
This AC contactor is rated to 690V with a current of 100A. It is designed with 3 poles for controlling AC power circuits.
Technical Specifications
Overview
Reliable Industrial AC Contactor

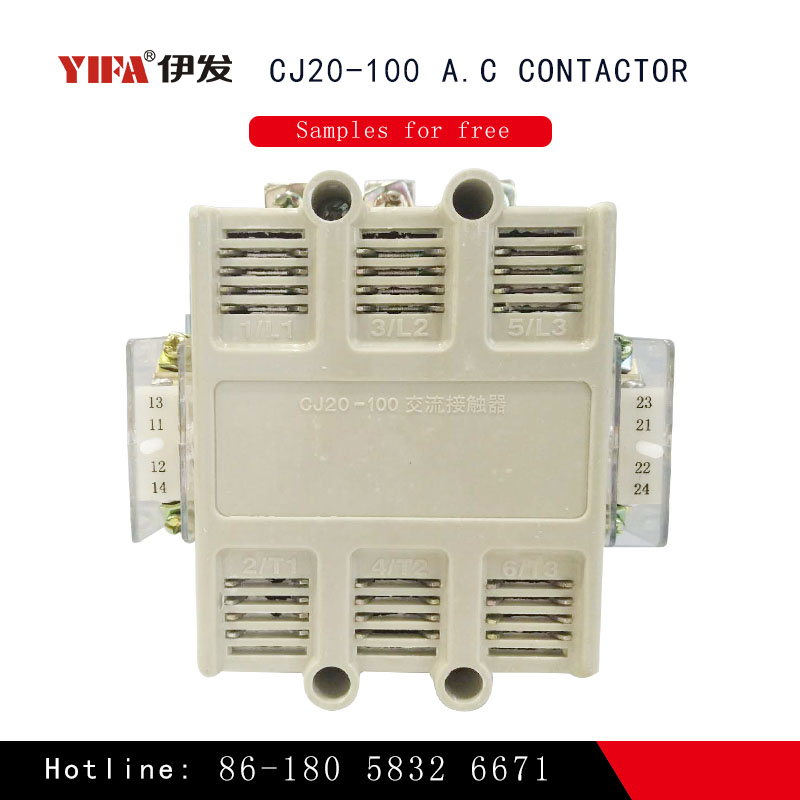

The CJ20 series AC contactor is a robust switching device designed for frequent starting and controlling of AC motors in industrial environments. Engineered for circuits up to 690V, it provides dependable making and breaking of electrical paths at a distance. This versatile component can be integrated with auxiliary contact blocks, thermal overload relays, and mechanical interlocking devices to serve as a star-delta starter or delay contactor.
Key Performance Metrics
Technical Highlights
100 A
Rated Current
690 V
Rating Voltage
3 P
Poles
Electrical Specifications
- Electricity Type
- AC
- Phase
- 3

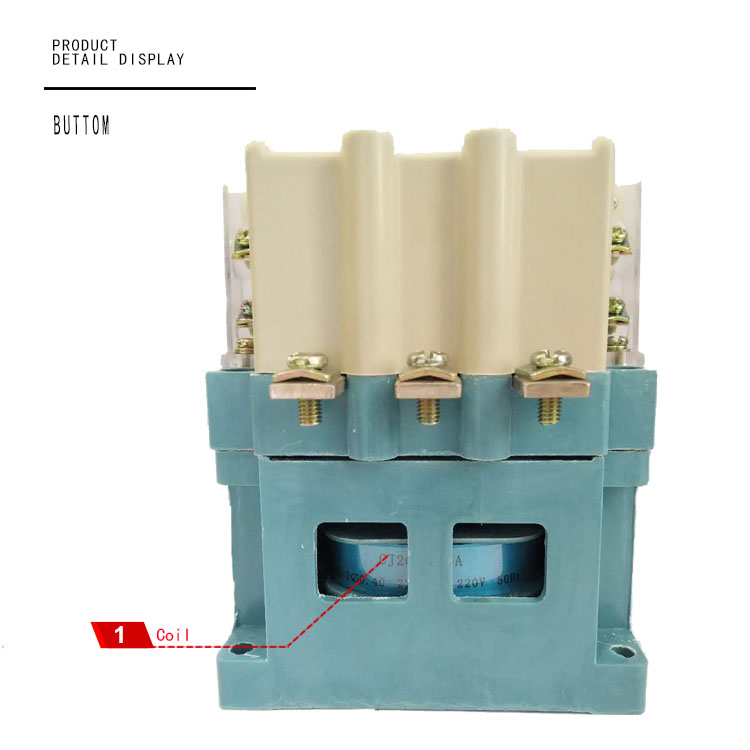

- Coil Voltage
- 220 V
- Frequency
- 50 Hz

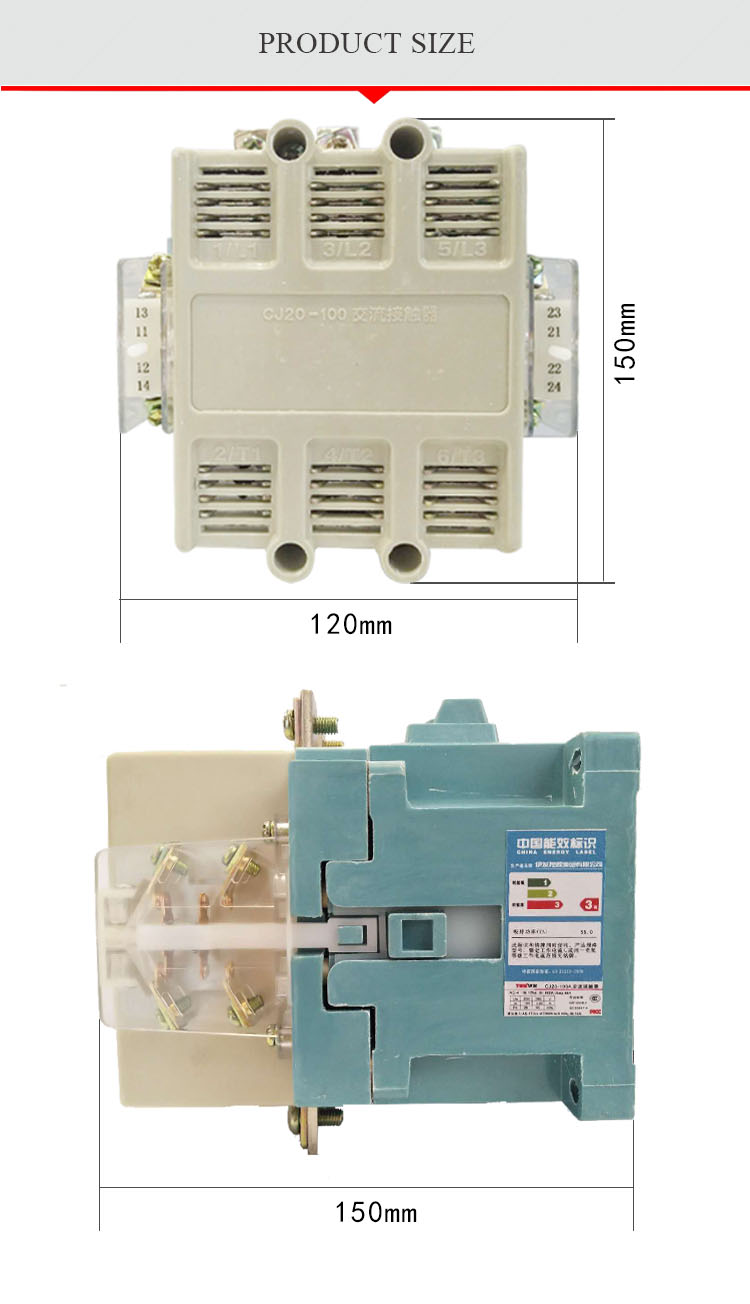

Physical Dimensions
Device Dimensions
| Dimension | Measurement |
|---|---|
| Height | 150mm |
| Width | 120mm |
| Depth | 150mm |
Compliance & Standards
- International Standards
- IEC 60947-4-1ISO 9001:2000CECCC
Application & Features
Compatible Modules

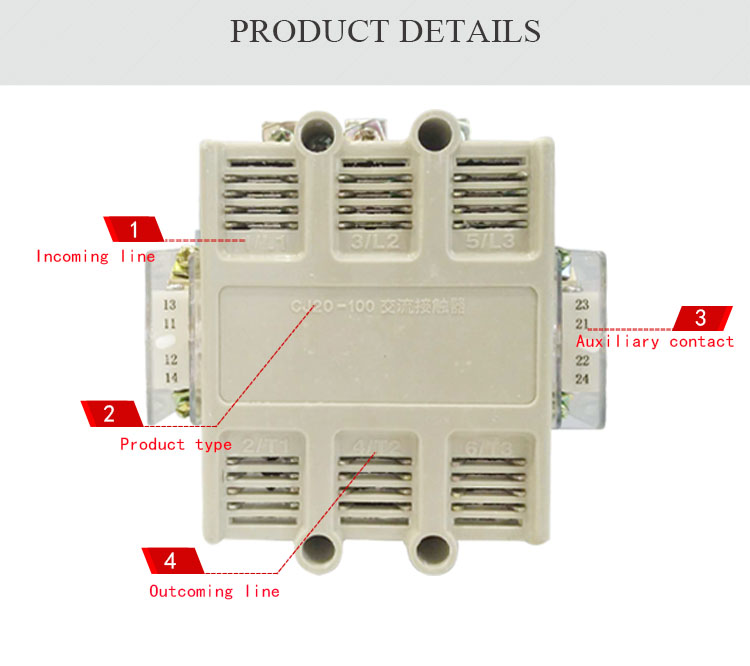

- Auxiliary contact blocks
- Thermal overload relays
- Machine-interlocking devices
- Star-delta starters
Primary Applications
- Motor control
- Lighting systems
- Power distribution
- Remote circuit switching
Logistics
- Place of Origin
- China (Zhejiang)
