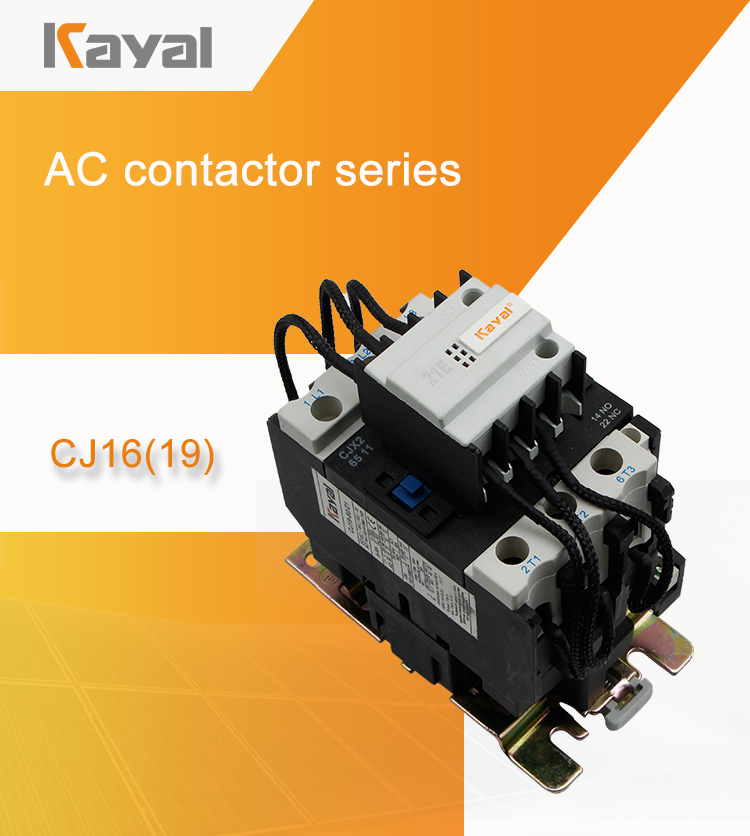

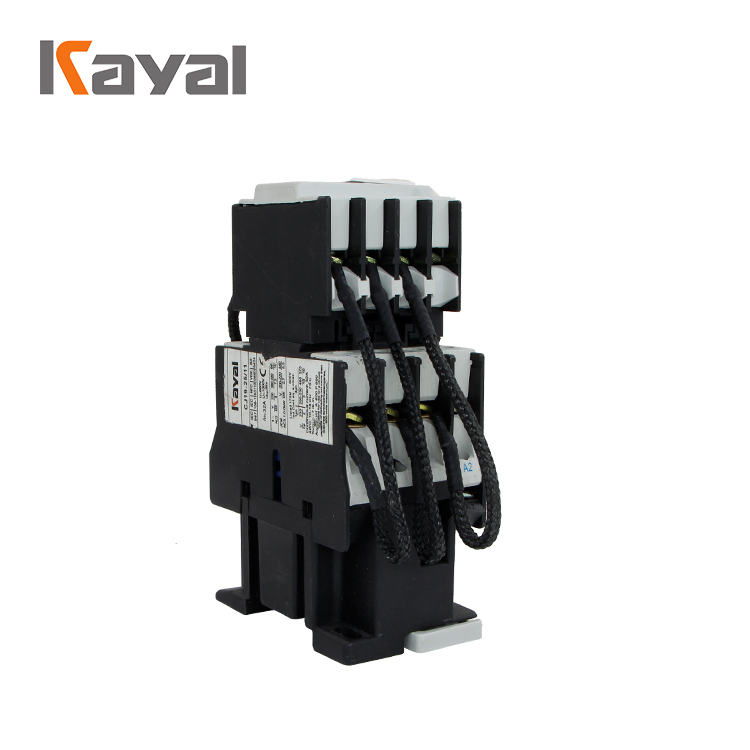

AC Capacitor Switching Contactor
This AC contactor is designed for electric power systems to make and break self-coupling low-voltage parallel capacitors. It effectively reduces the impulse of switching rush current to the capacitor and controls the over-voltage when starting the circuit.
Technical Specifications
Overview
High-Performance Capacitor Switching Contactor
The CJ19(16) series is specifically designed for switching self-coupling low-voltage parallel capacitors within power factor compensation devices. These contactors effectively suppress high inrush currents during switching and control over-voltage when starting circuits, ensuring the longevity of your capacitor banks. Engineered for reliability, they are suitable for AC 50Hz or 60Hz systems with main circuit voltages up to 380V.
Technical Specifications
- Rated Main Circuit Voltage
- 380 V
- Frequency
- 50Hz60Hz
- Maximum Controlled Capacity
- 30 kvar
Performance Metrics
Key Performance Ratings
660 V
Insulation Voltage (Ui)
6 kV
Impulse Withstand (Uimp)
40 A
Thermal Current (Ith)
Model Comparison
Model Capacity and Current Ratings
| Model Type | Controlled Capacity (400V) | Rated Current (A) | Working Current (1.3In) |
|---|---|---|---|
| CJ19B-32 | 15 kvar | 21.6 | 28.1 |
| CJ19B-32 (High) | 20 kvar | 29 | 37.7 |
| CJ19B-63 | 32 kvar | 46 | 59.8 |

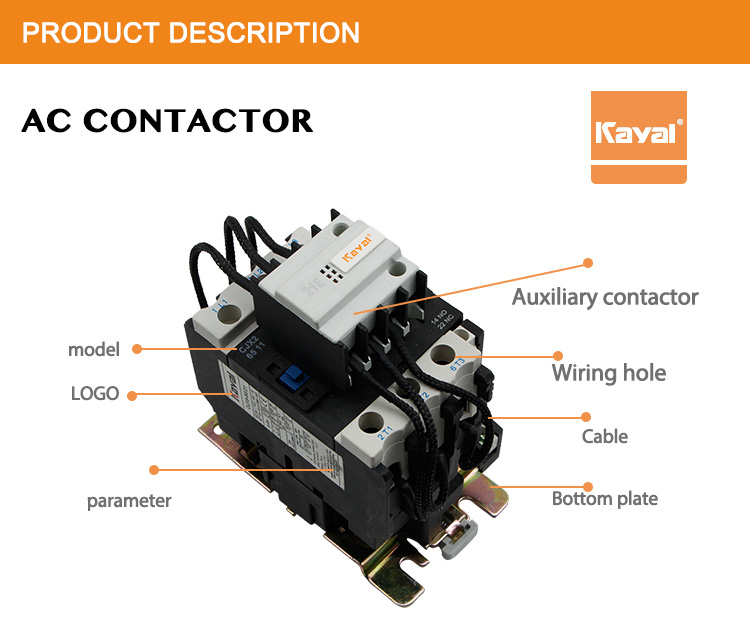

Design Features
Key Advantages
- Inrush current suppression for capacitor protection
- Over-voltage control during circuit startup
- Compact size for space-efficient installation
- Integrated auxiliary contactor for control signaling
- Robust wiring holes and secure bottom plate mounting
- Overload protection for enhanced safety
Applications
- Suitable Installation Environments
- Power Factor Compensation DevicesIndustrial Automation ControlTelecommunications RoomsElevator Control SystemsFire CentersHospital Operating Rooms
Compliance
Standards & Certifications
CEIEC/EN60947-4-1GB14048.4
