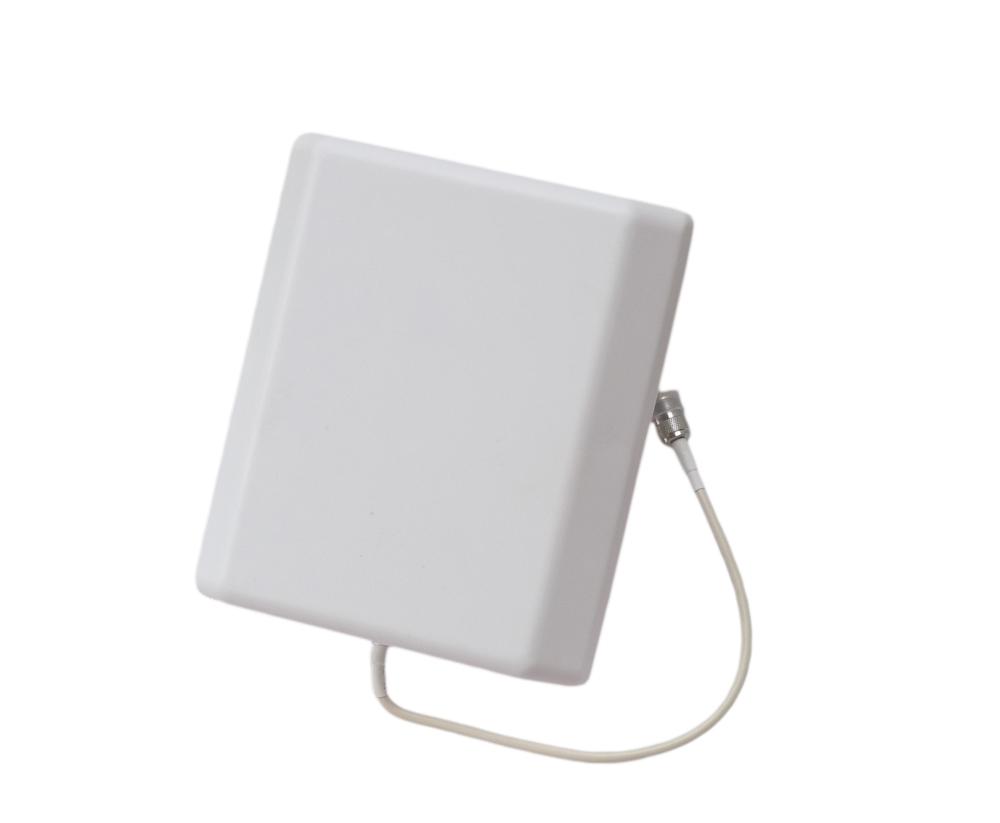

9 dBi Wall Mount Wireless Network Antenna
This is a directional WLAN/WiFi antenna. It operates in the 2400-2500 MHz frequency range with a 9 dBi gain and supports vertical/horizontal polarization.
Technical Specifications
Overview
High-Performance 2.4GHz Connectivity
This 9 dBi wall-mount antenna is engineered to extend the range and improve signal strength for wireless networks operating in the 2400-2500 MHz band. Featuring a durable, weather-resistant ABS enclosure, it is suitable for both indoor and outdoor deployments. The antenna offers reliable performance with a 110-degree horizontal beam width, making it an ideal solution for enhancing wireless coverage in professional environments.
Electrical Specifications
Beam Width
110 º
Horizontal
30 º
Vertical
- Frequency Range
- 2400-2500 MHz
- Gain
- 9 dBi
- VSWR
- 1.5
- Maximum Input Power
- 100 W
- Impedance
- 50 Ω
Mechanical Specifications
Connector Type
N-Female
- Dimensions
- 210 x 180 x 45 mm
- Weight
- 0.5 kg
- Radome Material
- ABS
- Rated Wind Velocity
- 60 m/s
- Protection Features
- DC GroundWeatherproof
