6kA DPN Miniature Circuit Breaker
This Miniature Circuit Breaker (MCB) provides both thermal and electromagnetic overcurrent protection. It features an independent contact position indicator and a DIN rail latch with a double fixed position.
Technical Specifications
Overview

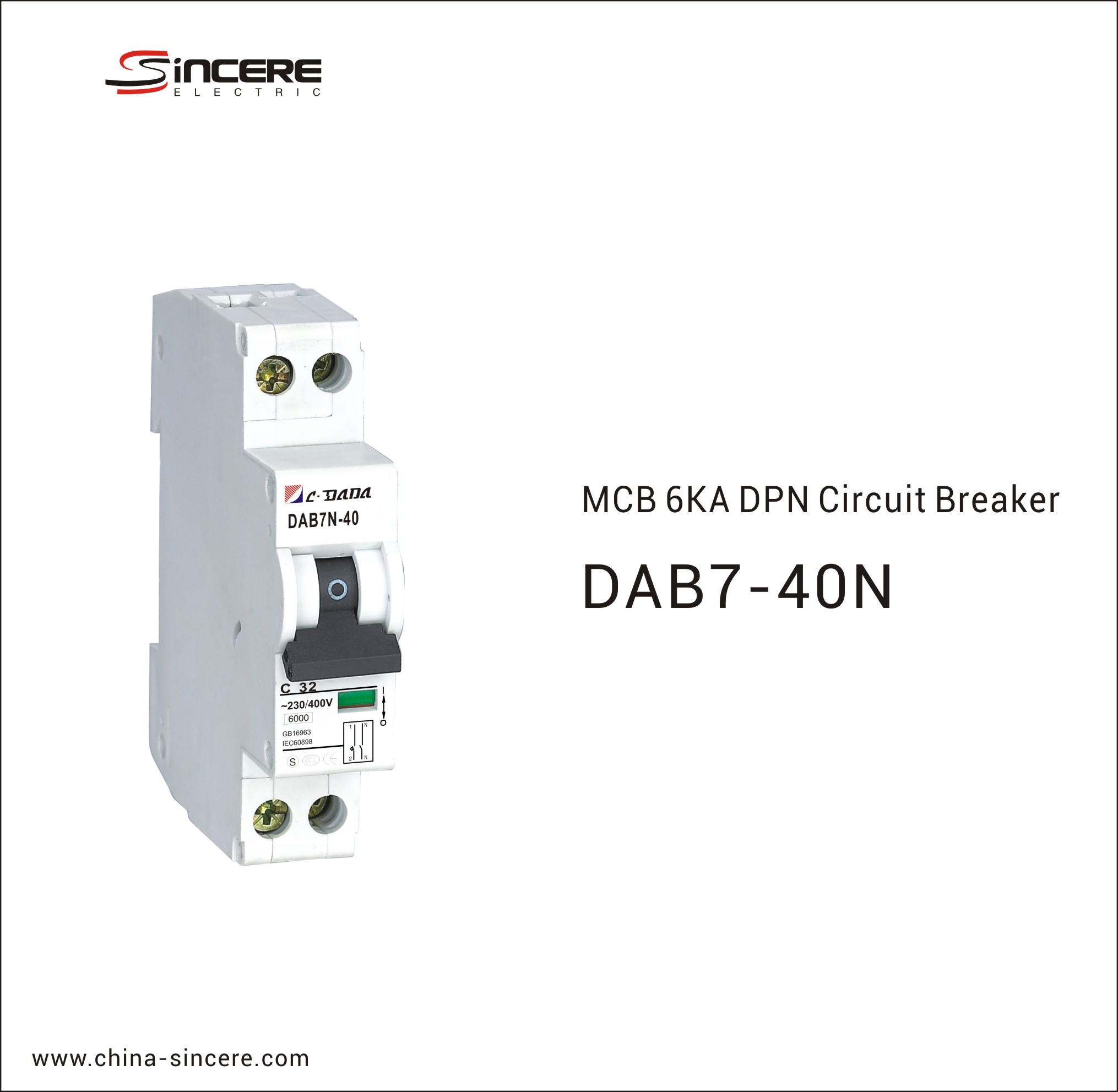

DAB7N-40 Series DPN Miniature Circuit Breaker
The DAB7N-40 series is a high-performance DPN miniature circuit breaker designed for reliable circuit protection. Featuring a double-break point 1P+N design, it ensures synchronous operation where the neutral pole breaks later to guarantee arc-breaking capacity and equipment safety. This unit provides comprehensive thermal and electromagnetic overcurrent protection, making it an essential component for safe electrical distribution.
Electrical Specifications
Rated Breaking Capacity
6 kA
Breaking Capacity
Instantaneous Tripping Type
BC
- Rated Current
- 40 A
- Rated Voltage
- 230 V
- Rated Insulation Voltage
- 500 V
- Impulse Withstand Voltage
- 4 kV
Mechanical Specifications
Terminal Connection Ability
- Conductor: 1-25mm²
- Bus bar thickness: 0.8-2mm
- Protection Grade
- IP20
- Operating Temperature Range
- -40 to +50°C
- Mechanical Endurance
- 180,000 cycles
Compliance & Standards
- Standards of Conformity
- IEC60898GB10963
