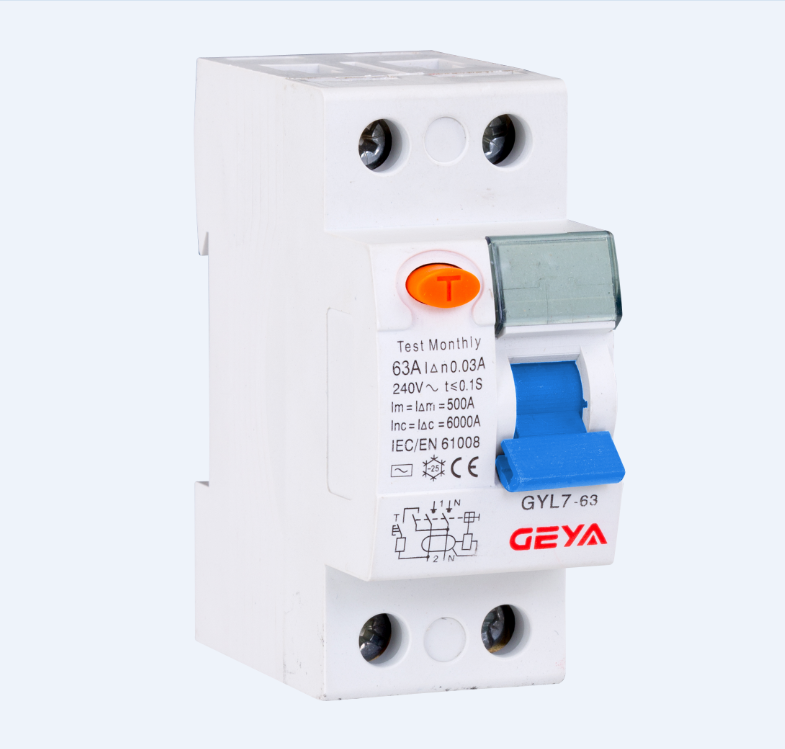

63A Residual Current Circuit Breaker
This residual current circuit breaker is designed for electrical safety. It has a 63A current rating with 0.03A residual current sensitivity, and a tripping time of ≤0.1 seconds.
Technical Specifications
Product Overview
Professional Electrical Safety
This residual current circuit breaker is engineered for high-performance electrical circuit protection. It is designed to detect and interrupt dangerous residual currents within a maximum of 0.1 seconds, ensuring reliable safety for electrical installations. Built to international standards, it offers a robust solution for maintaining system integrity and preventing fault-related hazards.
Technical Metrics
Key Performance Metrics
63 A
Rated Current
0.03 A
Residual Current Sensitivity
6,000 A
Short-Circuit Current
0.1 S
Max Tripping Time
Operating Voltage Options
- 240V
- 415V
Compliance and Standards
- Certifications
- IEC/EN 61008CE
Operation and Maintenance
Operational Features
- Monthly test button functionality
- Impulse withstand current (Im) of 500A
