Product Overview
Reliable Circuit Protection

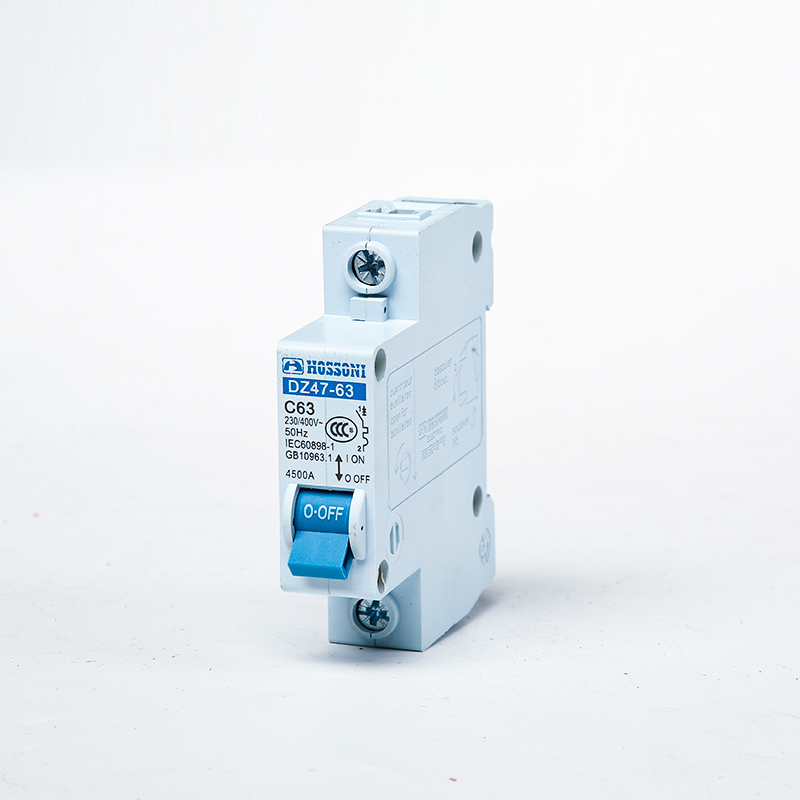

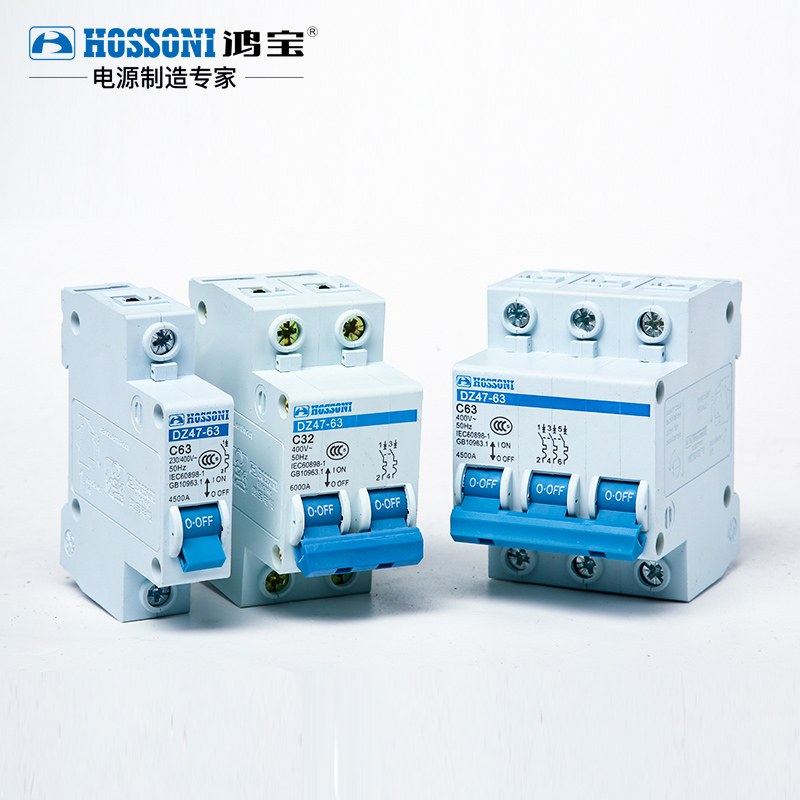

This Miniature Circuit Breaker (MCB) is designed for robust protection against overloads and short circuits in both residential and commercial electrical systems. It is suitable for AC 50Hz circuits and supports diverse configurations from single-pole to four-pole setups. Engineered for durability and performance, it ensures safe power distribution in environments ranging from high-rise buildings to industrial enterprises.
Technical Specifications
Rated Voltage
- 230V (Single pole)
- 400V (Double, Three, Four poles)
Breaking Capacity
4,500 A
Standard Capacity
6,000 A
High Capacity
- Rated Current
- 63 A
- Rated Frequency
- 50Hz / 60Hz
Compliance & Standards
- Certified Standards
- IEC60898IEC60898-1GB10963.1
Application
Typical Applications
- Industrial enterprises
- Commercial districts
- High-rise buildings
- Dwelling houses
- Lighting distribution systems
- Motor distribution systems
