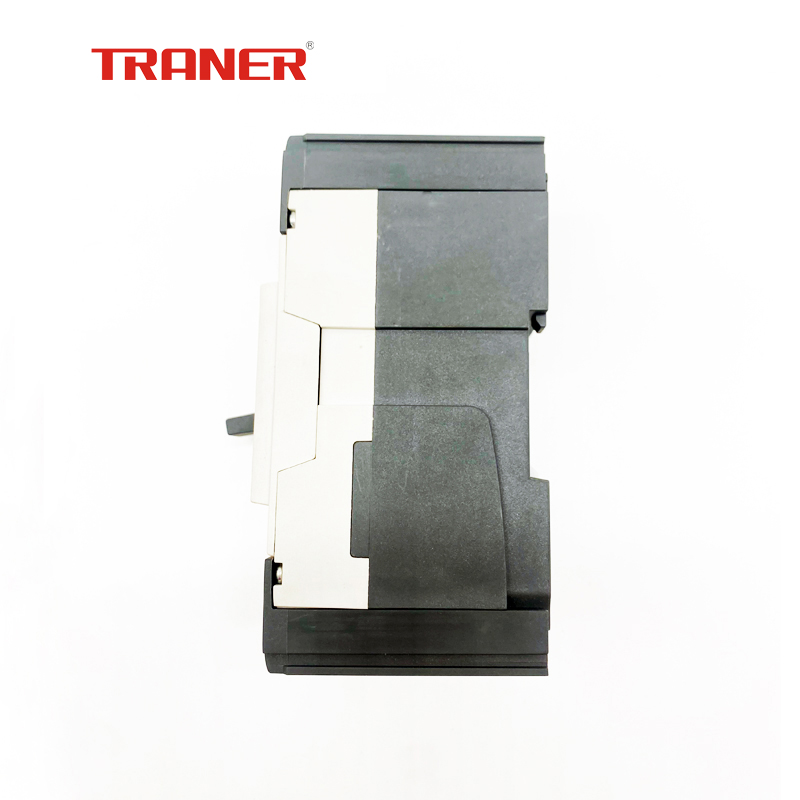

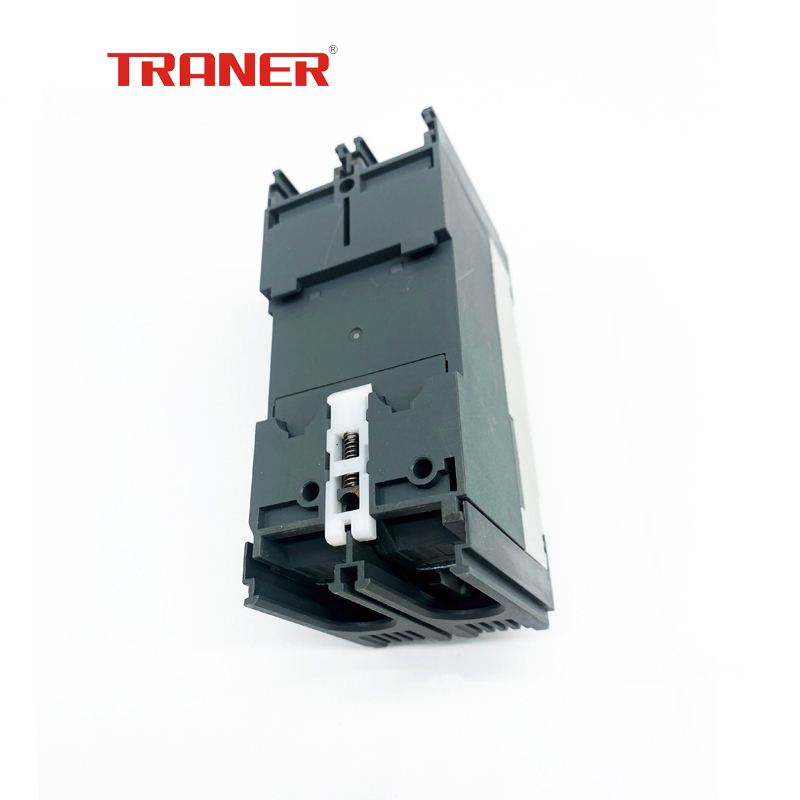

63A 2-Pole MCCB for DIN Rail/Screw Mounting
This MCCB is designed for DIN rail and screw mounting applications. It has a 63A frame size and 2-pole configuration, offering high breaking capacity.
Technical Specifications
Product Overview
Professional Circuit Protection
The TRM series 2-pole Molded Case Circuit Breaker (MCCB) is engineered for robust electrical distribution and control system protection. Featuring a 63A frame size, it supports flexible installation via DIN rail or screw mounting. This series ensures high-performance safety, adhering to international IEC/EN 60947 standards to deliver reliable operation in industrial and commercial environments.
Technical Specifications
Rated Current (In)
- 15
- 20
- 30
- 40
- 50
- 63
Key Electrical Metrics
415 V
Max Operational Voltage
1,000 V
Insulation Voltage
8 kV
Impulse Withstand
100 %
Ics/Icu Ratio
Performance & Compliance
Short-Circuit Breaking Capacity (Icu)
| Voltage | S-Type (kA) | H-Type (kA) |
|---|---|---|
| 240V | 14 | 25 |
| 415V | 5 | 7.5 |
- Compliance Standards
- IEC/EN 60947-1IEC/EN 60947-2
Environmental Conditions
Operational Limits
- Ambient Temperature: -5°C to +55°C
- Relative Humidity: 45% to 85%
- Altitude: up to 2000m
