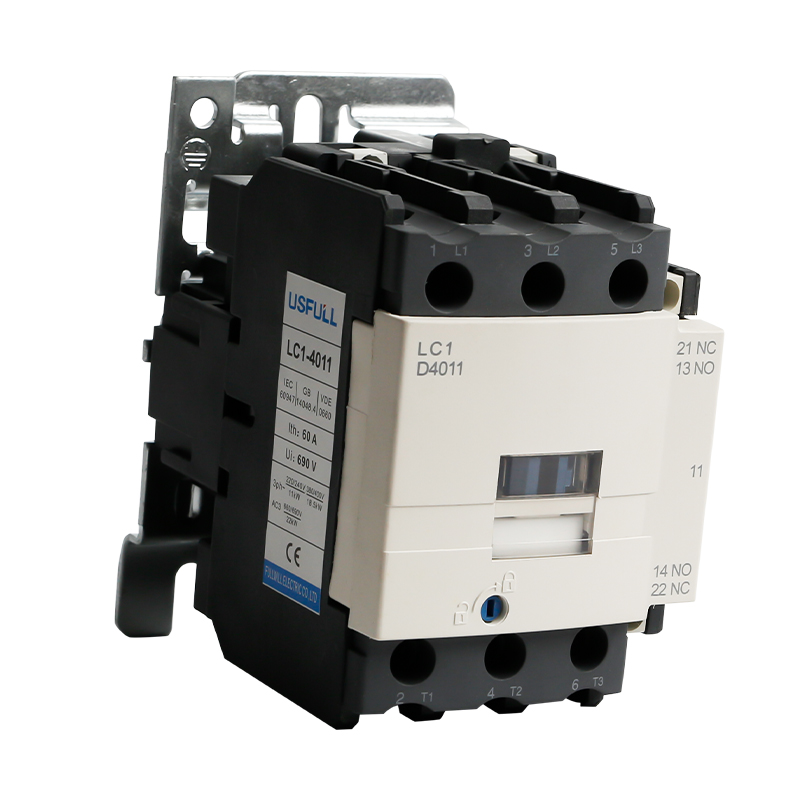

60A 690V AC Contactor
This AC contactor is designed for various electrical applications, ensuring dependable switching and control of electrical circuits. It features a 60A rated operational current and a 690V rated insulation voltage and complies with IEC, GB, and VDE standards.
Technical Specifications
Overview
High-Performance AC Contactor
This robust AC contactor is engineered for reliable power switching in demanding industrial environments. Designed for circuits with rated load currents exceeding 10A, it provides dependable control for high-power electrical appliances and motors. Its durable construction ensures consistent performance, making it an essential component for central air conditioning systems and other complex electrical setups.
Electrical Ratings
- Rated Operational Current (Ith)
- 60 A
- Rated Insulation Voltage (Ui)
- 690 V
- Control Coil Voltage
- 220 V
Compliance & Standards
- Certifications & Standards
- IEC 60947-1GB 4048.4VDE 0660CE
Control & Integration
Auxiliary Contact Configuration
- 21 NC
- 13 NO
- 11
- 14 NO
- 22 NC
Terminal Configuration
| Line Terminals | Load Terminals |
|---|---|
| 1 L1 | 2 T1 |
| 3 L2 | 4 T2 |
| 5 L3 | 6 T3 |
