Technical Specifications
Product Overview

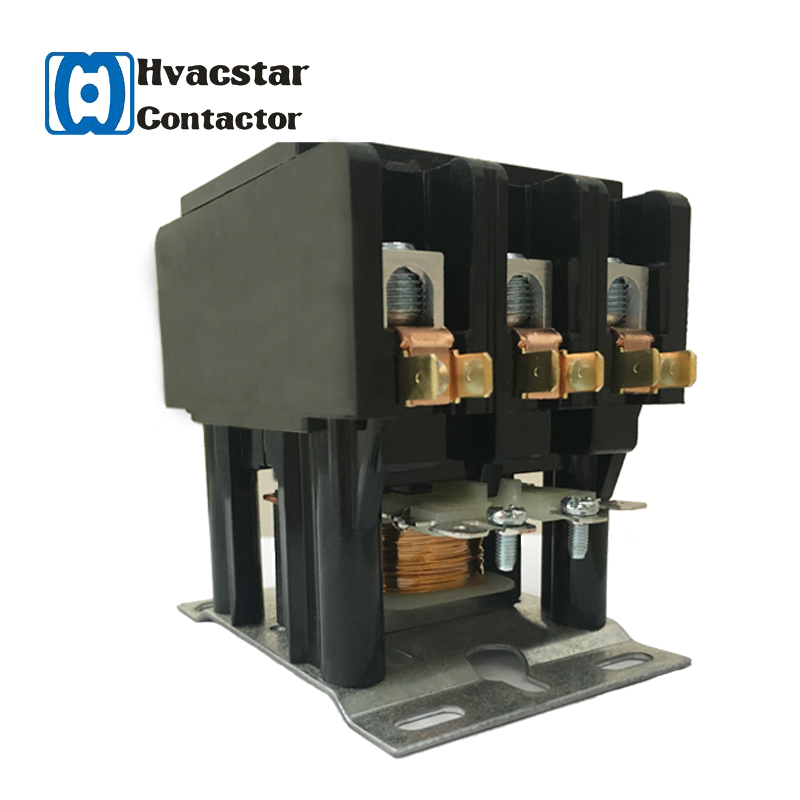

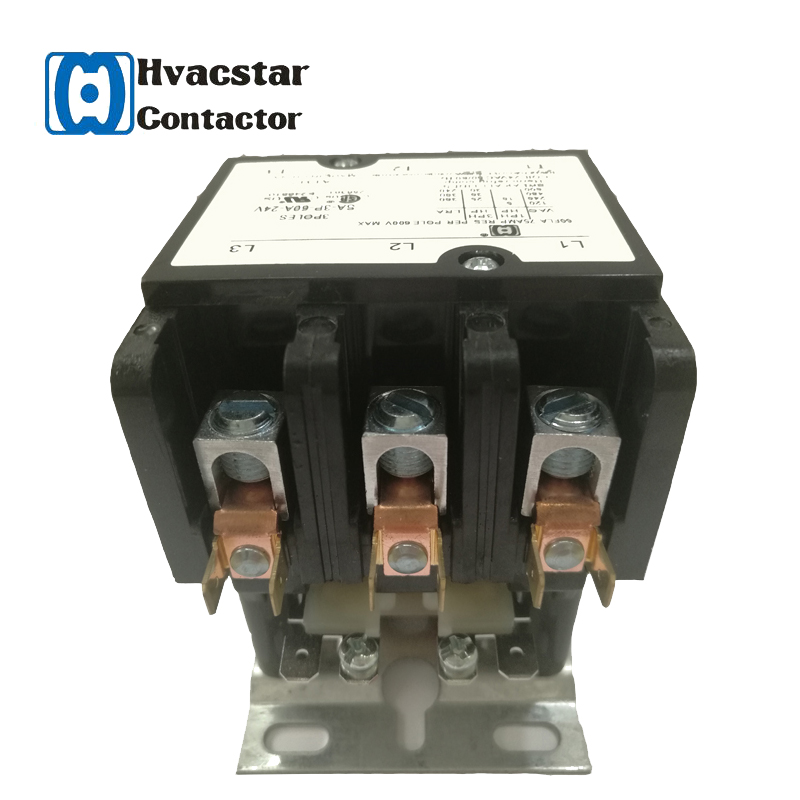

Professional HVAC Magnetic Contactor
This 3-pole magnetic contactor is engineered for reliable performance in demanding HVAC and refrigeration applications. It supports both single-phase and 3-phase systems, offering a robust solution for switching inductive and resistive loads. With CUL certification and a design optimized for hermetic compressors, this unit ensures safety and durability in commercial and residential electrical systems.
Electrical Ratings
Rated Current
60 A
Full Load Amps (FLA)
75 A
Resistive Load
- Maximum Voltage
- 600 V
- Coil Voltage
- 24VAC 50/60 Hz
- Pole Configuration
- 3
- System Compatibility
- 1-Phase3-Phase
Installation & Torque
Torque Specifications (Copper Conductors @ 75°C)
| Component | Torque |
|---|---|
| Screws | 22 in-lbs |
| Lugs | 50 in-lbs |
Compliance & Quality
Certifications
CUL Certified
Quality Assurance
- 100% self-inspection
- Pre-packing testing
Ordering Information
- Delivery Time
- 15-20 days after deposit
- Payment Terms
- 30% deposit, balance against B/L copy
