Technical Specifications
Overview

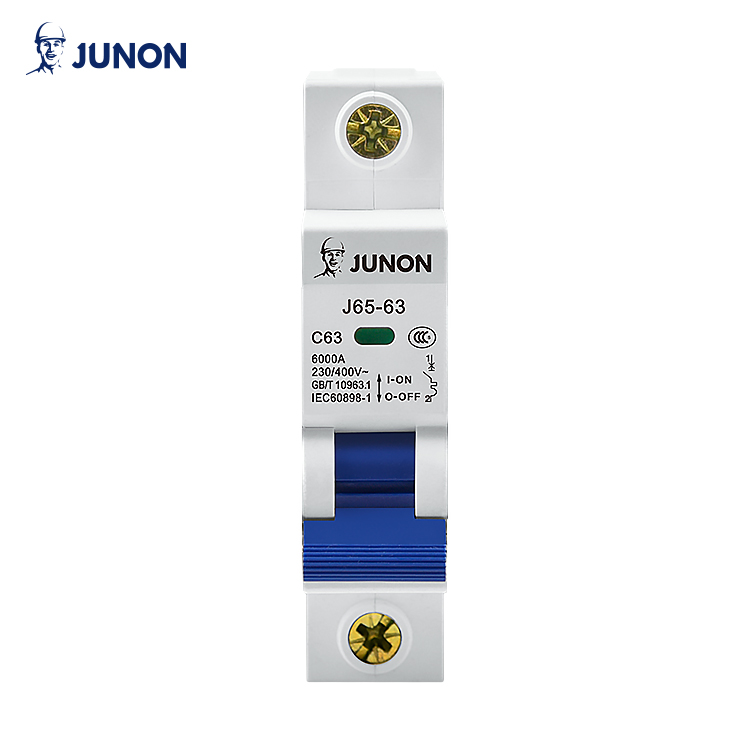

High-Performance Miniature Circuit Breaker
This miniature circuit breaker is engineered for reliable electrical protection in both residential and commercial environments. It features a high-durability, fire-retardant, and shock-resistant enclosure, ensuring safety and longevity in demanding conditions. Designed for versatility, it supports rapid rail mounting and provides essential protection against overloads and short circuits while maintaining an IP20 rating.
Performance Metrics
Breaking Capacity
6 kA
Capacity (6A-40A)
4.5 kA
Capacity (50A-63A)
Service Life
| Type | Cycles |
|---|---|
| Mechanical Life | 20,000 |
| Electrical Life | 4,000 |
Technical Specifications
Pole Configurations
- 1P (230V)
- 2P (230V)
- 3P (400V)
- 4P (400V)
Installation & Environment
| Parameter | Value |
|---|---|
| Mounting | Rail Mounted |
| Wiring Capacity | 25mm² |
| Operating Temp | -5ºC to +40ºC |
| IP Rating | IP20 |
- Available Rated Currents
- 6A10A16A20A25A32A40A50A63A
Compliance
Standards & Compliance
IEC60898-1ISO 9001-2000
