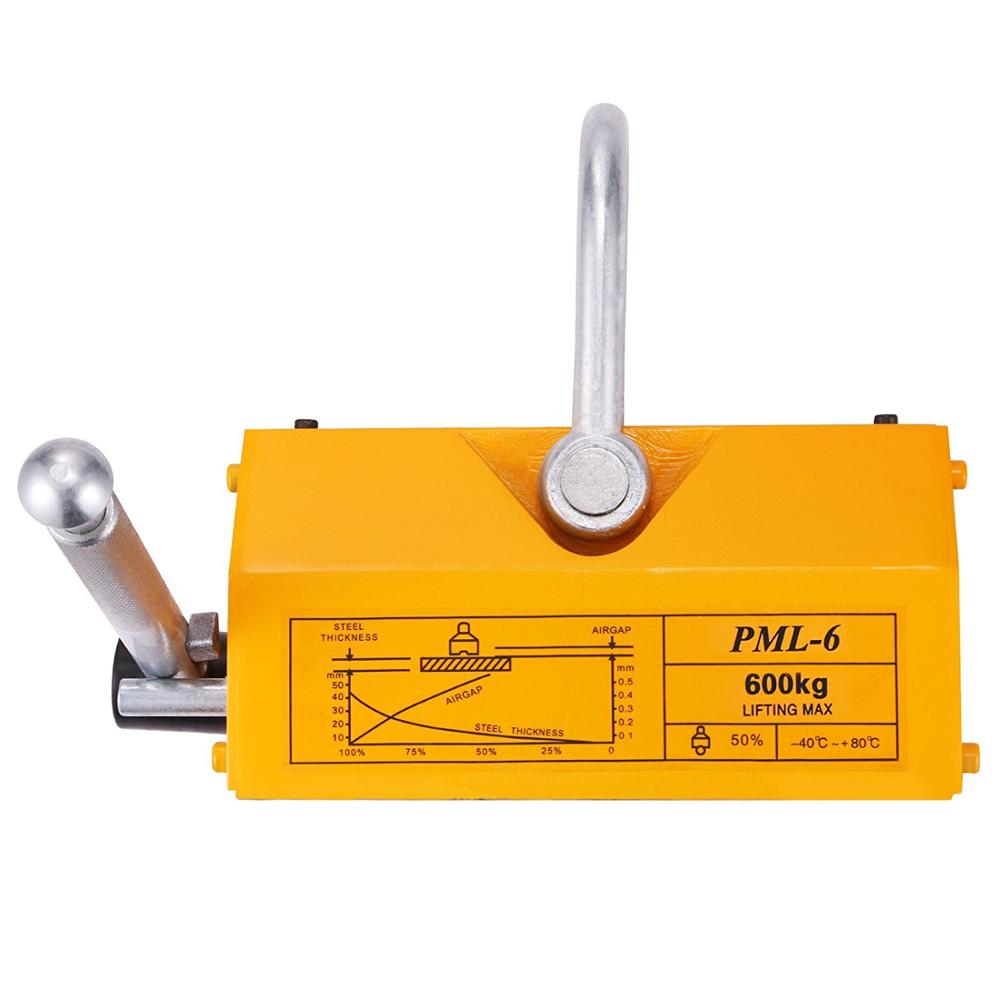

600 kg Permanent Lifting Magnet
This permanent lifting magnet is designed for lifting steel materials. It has a maximum lifting capacity of 600kg.
Technical Specifications
Overview
Permanent Lifting Magnets
These permanent lifting magnets offer a powerful, compact, and safe solution for handling various metal workpieces. Designed for versatility, they are ideal for moving steel plates, flat stock, or round bars without the need for electricity. Their ergonomic design ensures simple operation, making them a reliable choice for molding and steel industries.
Performance
Maximum Rated Capacity
600 kg
Rated Capacity
- Operating Temperature Range
- -40°C to +80°C
- Certifications
- CE
Steel Plate Specifications
Lifting Capacity for Steel Plate
| Model | Capacity | Min Thickness | Max Length | Weight |
|---|---|---|---|---|
| PML-100 | 100kg | 15mm | 1000mm | 3kg |
| PML-400 | 400kg | 25mm | 1500mm | 9kg |
| PML-600 | 600kg | 30mm | 2000mm | 20kg |
| PML-1000 | 1000kg | 40mm | 3000mm | 36kg |
| PML-2000 | 2000kg | 55mm | 3000mm | 68kg |
| PML-3000 | 3000kg | 60mm | 3000mm | 80kg |
| PML-5000 | 5000kg | 70mm | 3000mm | 192kg |
Round Bar Specifications
Lifting Capacity for Round Bar
| Model | Capacity | Diameter Range | Max Length |
|---|---|---|---|
| PML-100 | 30kg | 40-150mm | 1500mm |
| PML-400 | 120kg | 60-200mm | 1500mm |
| PML-600 | 200kg | 60-300mm | 2000mm |
| PML-1000 | 300kg | 70-400mm | 3000mm |
| PML-2000 | 600kg | 150-400mm | 3000mm |
| PML-3000 | 900kg | 150-500mm | 3000mm |
