5X Series Sand Making Machine
The 5X Series Sand Making Machine is used for crushing metal and non-metal ores, cement, and glass raw materials. It is suitable for crushing high-hardness materials such as iron ore, corundum, and perlite.
Technical Specifications

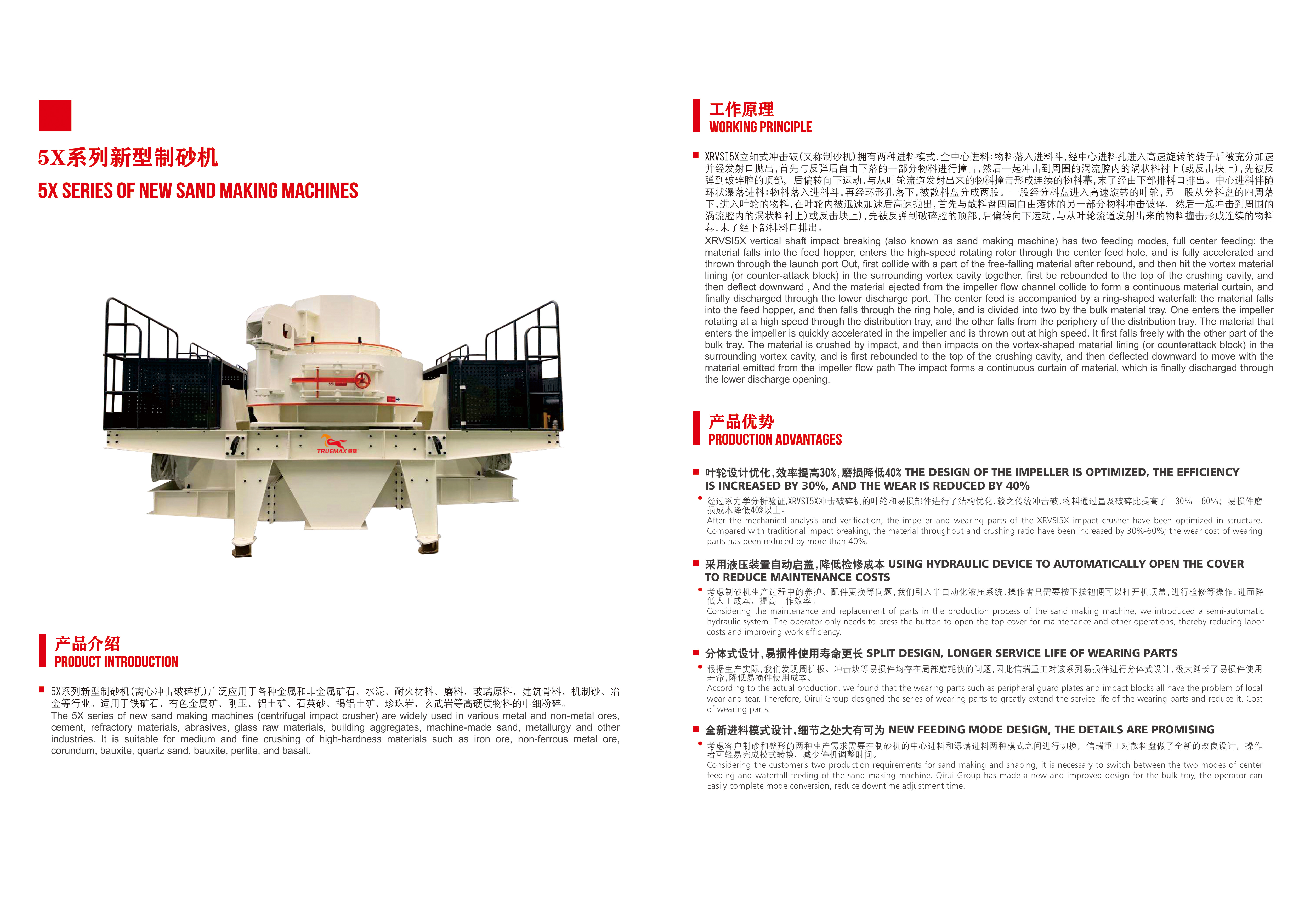

Product Overview
Advanced Sand Making Technology
The 5X series of centrifugal impact crushers are high-performance sand making machines designed for medium and fine crushing of high-hardness materials. These units are widely utilized across the mining, cement, and metallurgy industries to produce high-quality machine-made sand and building aggregates. With an optimized rotor design and advanced hydraulic maintenance systems, they offer a reliable solution for processing ores, quartz, and basalt.
Key Industries
- Metal and non-metal mining
- Cement production
- Refractory materials
- Glass raw materials
- Building aggregates
- Machine-made sand production
- Metallurgy
- Processable Materials
- Iron oreCopper/Non-ferrous oreCorundumBauxiteQuartz sandPerliteBasalt
Performance & Efficiency
Performance Highlights
Technical Specifications
Technical Parameters by Model
| Model | Waterfall & Center Feed (t/h) | Full Center Feed (t/h) | Max Feed Size (Soft/Hard mm) | Double Motor Power (kW) |
|---|---|---|---|---|
| XRVSI5X7615 | 150-280 | 70-140 | 35 / 30 | 150 |
| XRVSI5X8522 | 240-380 | 120-200 | 40 / 35 | 220 |
| XRVSI5X9532 | 350-540 | 180-280 | 45 / 40 | 320 |
| XRVSI5X1145 | 500-640 | 250-360 | 50 / 45 | 440 |
- Power Supply
- 380V/50Hz
Design Features
Feeding Modes
- Full center feeding
- Center feed accompanied by ring-shaped waterfall
Maintenance System
Thin Oil Lubrication Security
The system utilizes dual oil pumps that complement each other to ensure constant supply. It includes safety protocols such as automatic shutdown if no oil flow or pressure is detected. The station features wind or water cooling and an integrated heater for reliable motor startup during winter conditions.

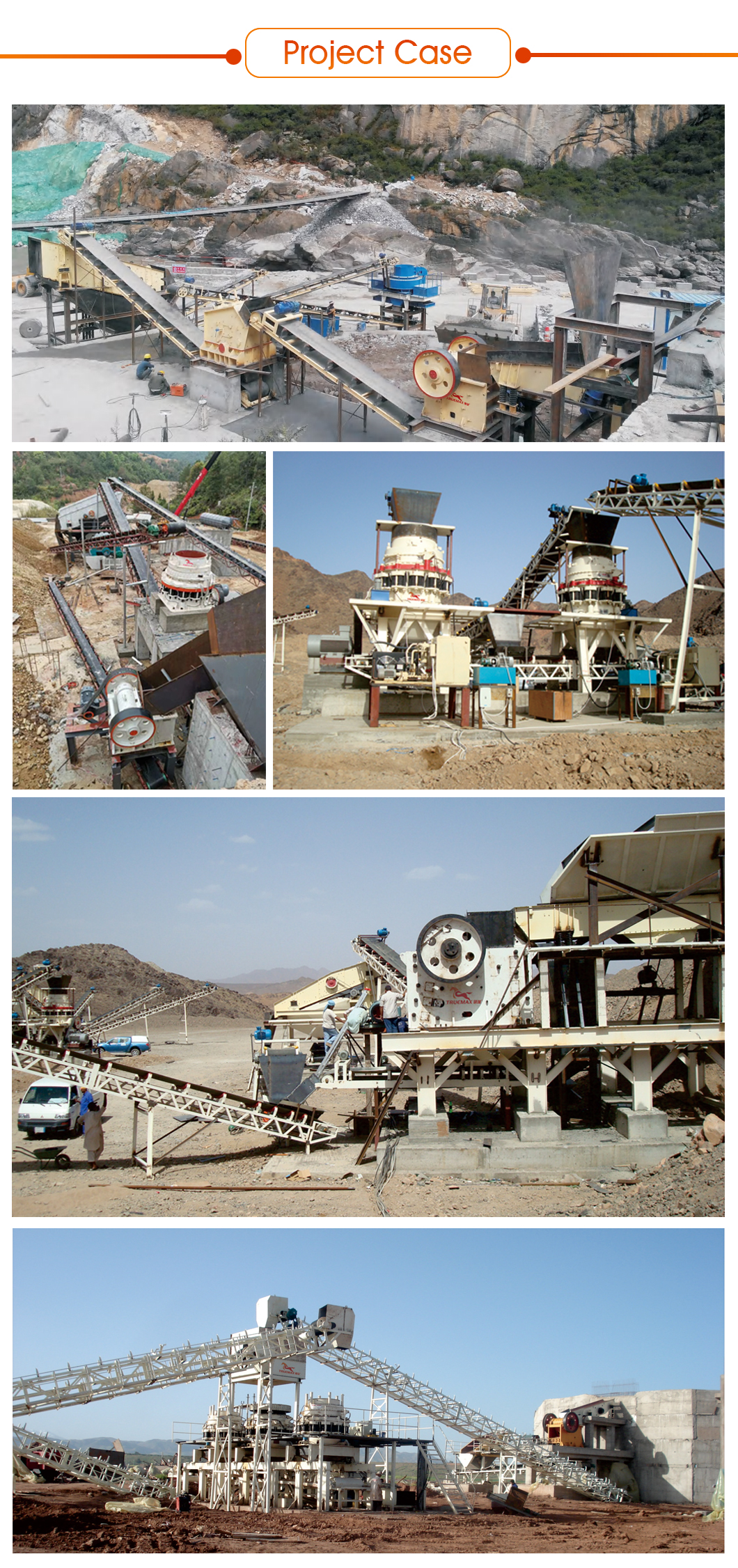

Field Applications
- Project Versatility
- Suitable for high-capacity aggregate shaping and sand manufacturing in large-scale infrastructure projects.
