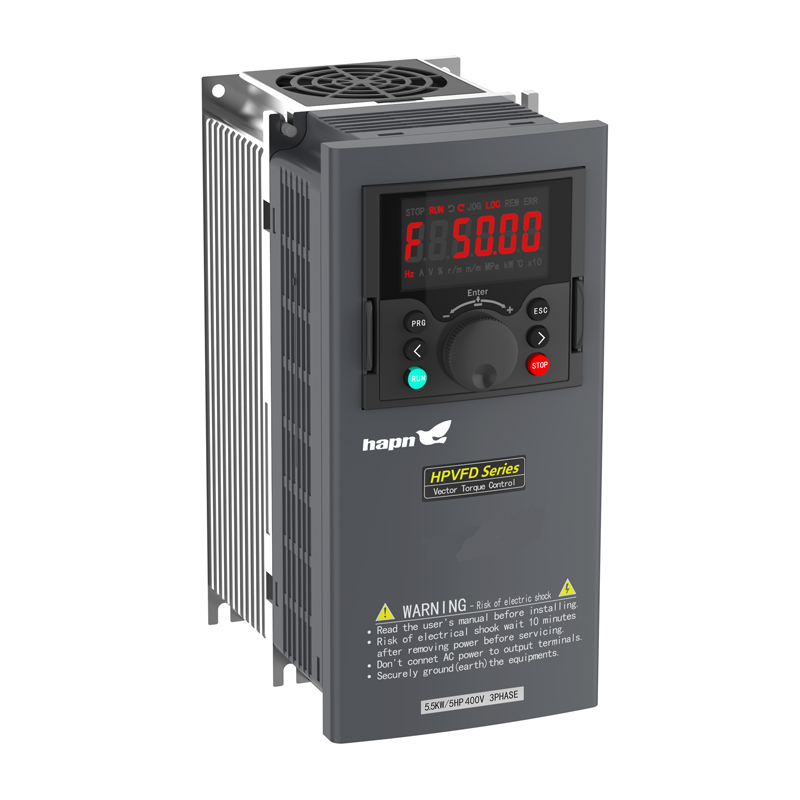

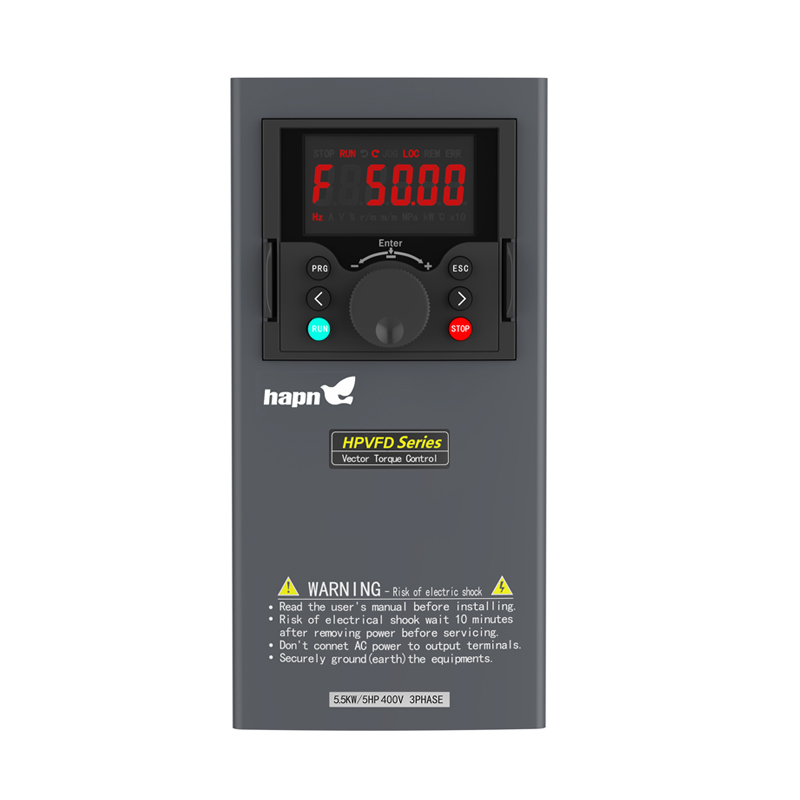

5.5kW Vector Torque Control AC Drive 400V 3-Phase
This vector torque control AC drive is designed for a variety of industrial applications. It supports a 5.5kW/5HP motor at 400V with a 3-phase power supply.
Technical Specifications
Overview
High-Performance Vector Control AC Drive
The HPVFD series is a professional-grade AC drive engineered for demanding industrial and commercial applications. Utilizing an advanced current vector control algorithm, it delivers superior motor control characteristics, including high starting torque and stable low-speed performance. Its compact, space-saving design is optimized for enclosure installations, while the intuitive interface ensures quick setup and debugging.
Technical Specifications
- Power Rating
- 5.5 kW
- Input Voltage
- 400 V
- Phase
- 3 Phase
Connectivity & Control
I/O Configuration
- 8 Digital Inputs
- 2 Analog Inputs
- 2 Relay Outputs
- 2 Open Collector Outputs
- Communication Interface
- RS485 Serial Communication (Modbus Protocol)
Compliance & Safety
Safety Features
- Flame retardant materials
- High-reliability main loop connection
- Automatic current limiting
- Energy-saving operation mode
- Certifications
- CEEMC Certified
