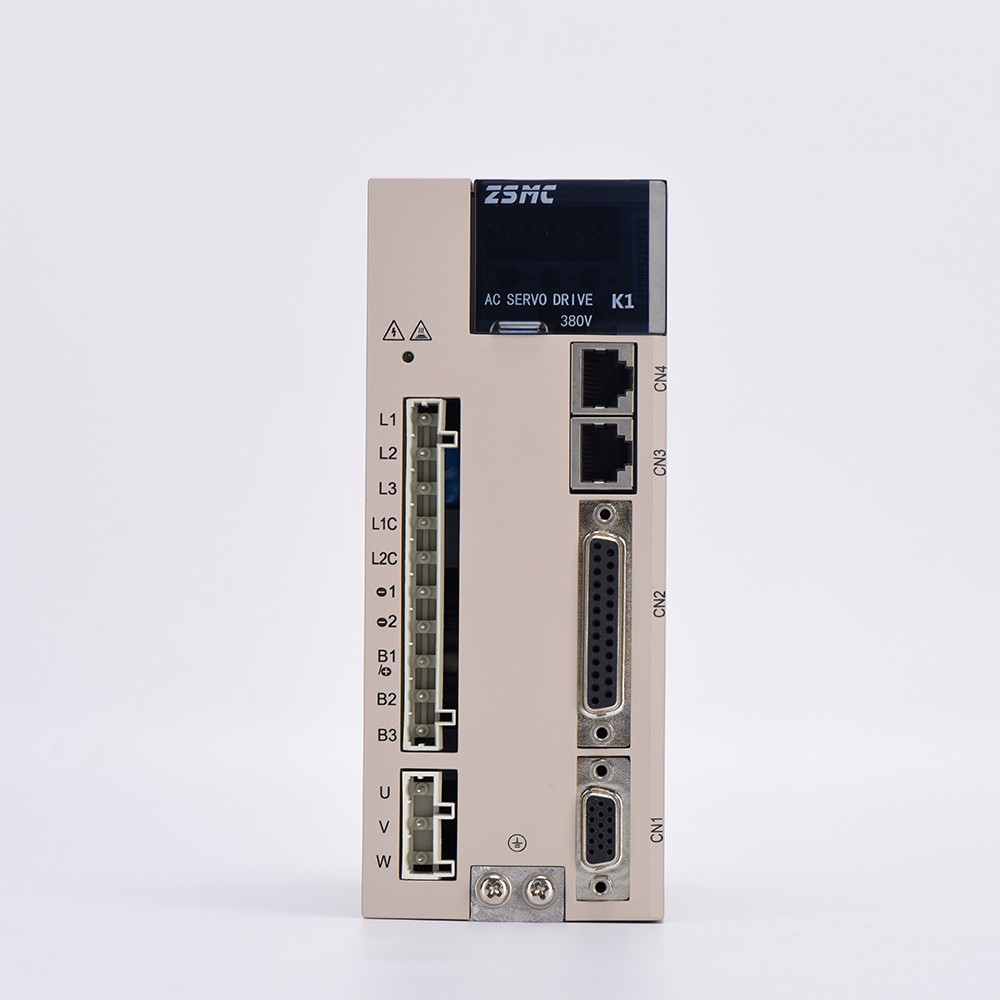

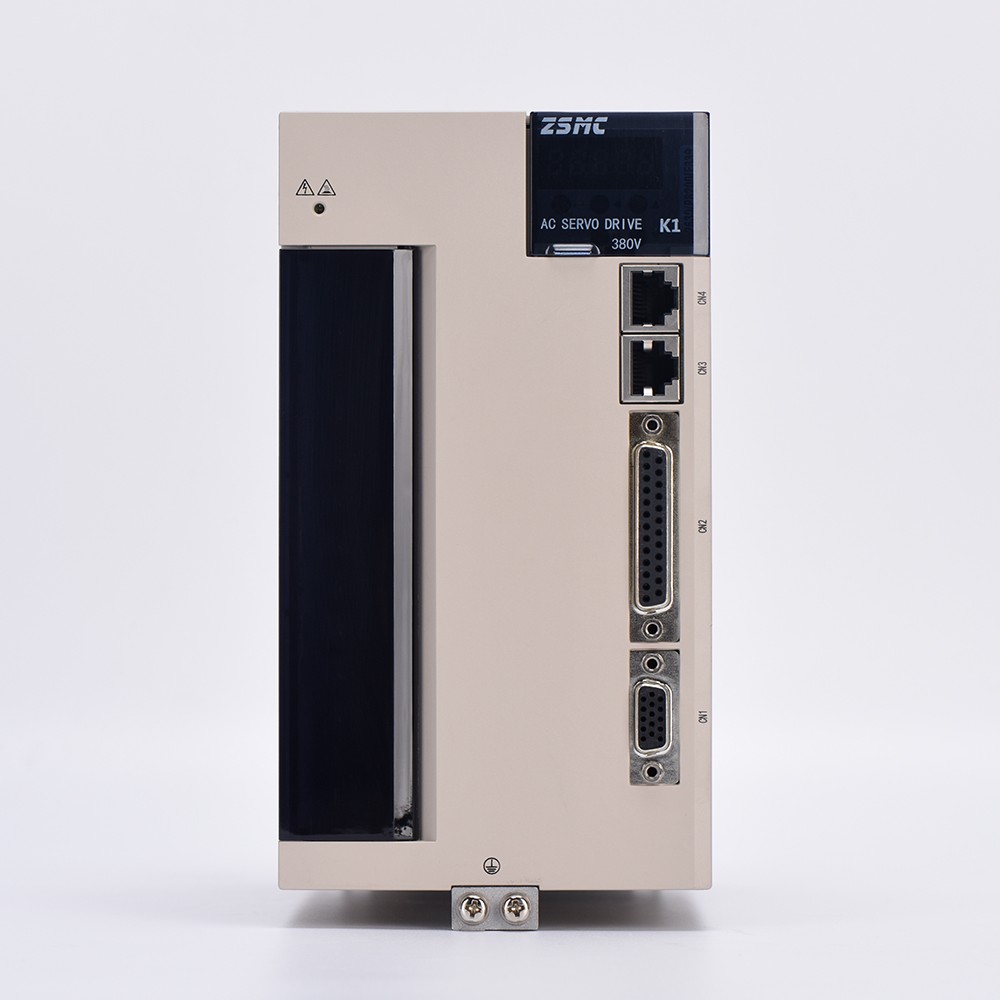

5.5kW 380V AC Servo Drive for Industrial Automation
This AC servo drive delivers precise motor control for a range of industrial automation applications. It features mechanical resonance frequency analysis and multi-bus support.
Technical Specifications
Product Overview
High-Performance Servo Drive
The K1 Series 5.5kW servo drive is a robust solution designed for high-precision motion control across demanding industrial applications. It features advanced three-phase PWM converter technology and supports versatile control modes, ensuring smooth operation and exceptional motor performance. With extensive communication support and intelligent tuning capabilities, it simplifies system integration while maximizing productivity and stability.
Technical Specifications
- Rated Power
- 5.5 kW
- Input Voltage
- 380V AC (Three-phase, -15~+10%)
- Rated Current
- 16 A
- Overload Capacity
- Up to 3x rated torque
- Communication
- ModbusCANopenCustomized CAN
Control & Precision
Available Control Modes
- Position Control
- Speed Control
- Torque Control
- Inner Speed
- Position/Speed Control
- Position/Torque Control
- Speed/Torque Control
Pulse Input Interface
| Interface Type | Max Speed |
|---|---|
| Differential Input | 500K |
| Open Collector | 200K |
Environmental Requirements
Operating Temperature
0 °C
Min Temperature
45 °C
Max Temperature
- Operating Humidity
- 20-85% RH (Non-condensing)
