Technical Specifications
Product Overview

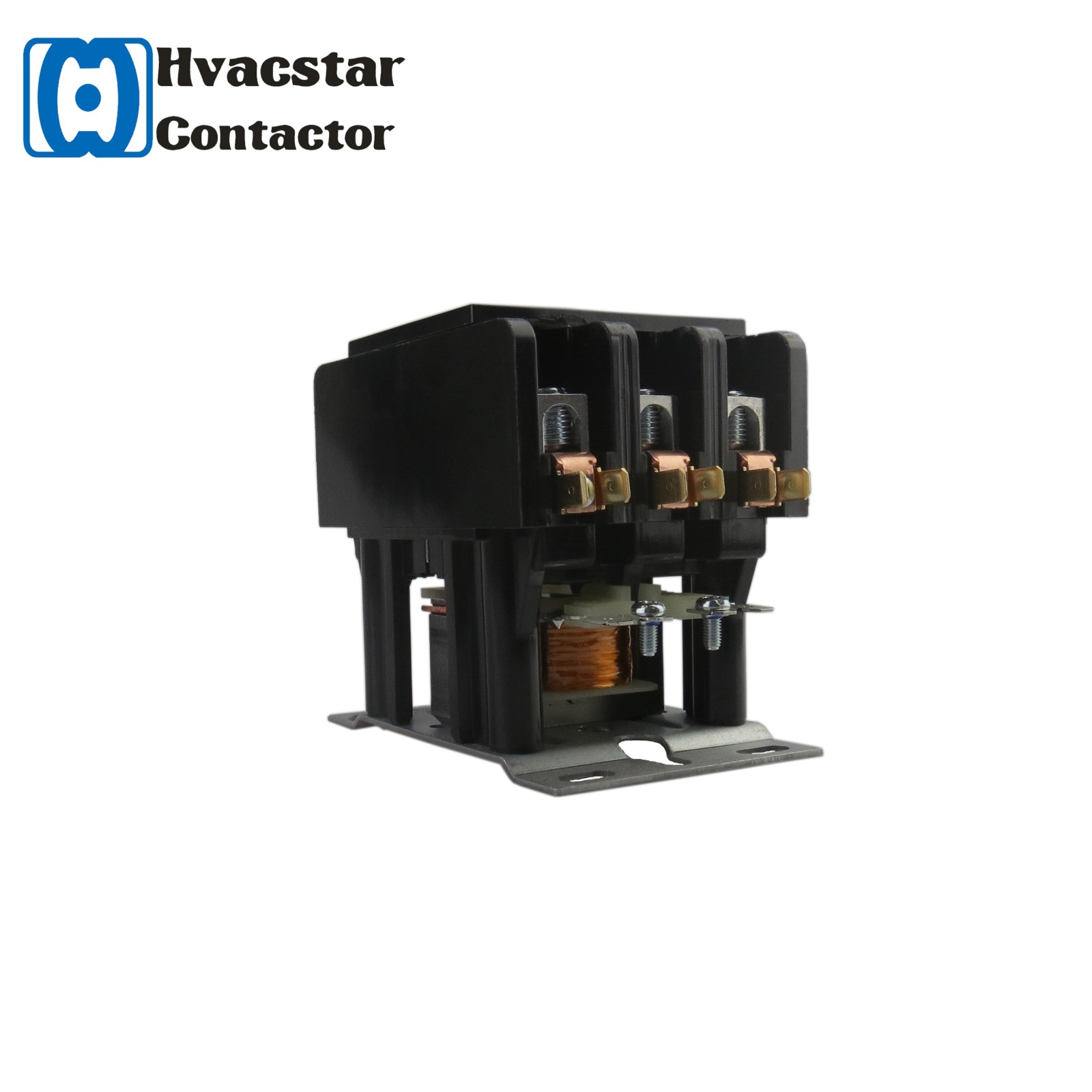

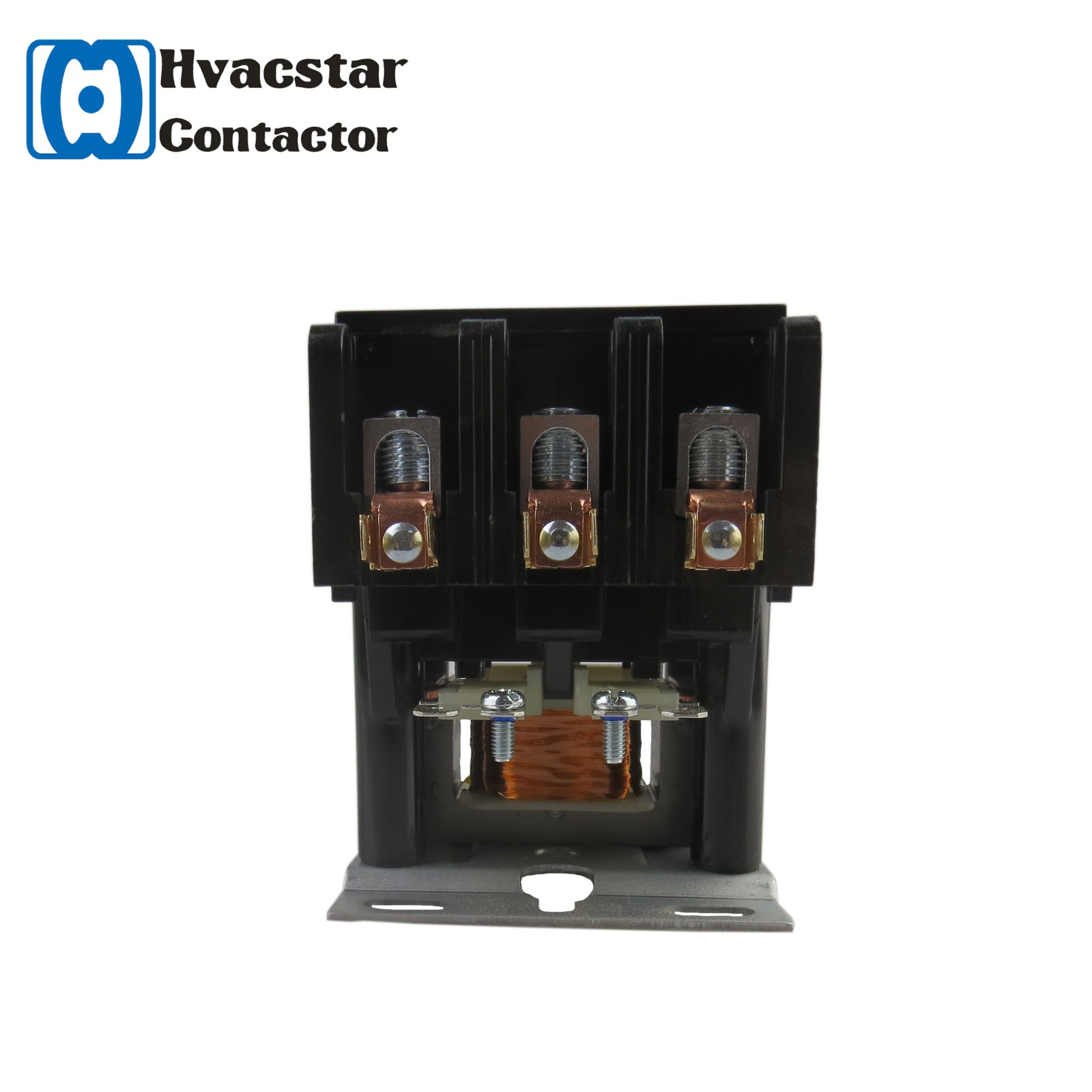

High-Performance Magnetic Contactor
This three-pole magnetic contactor is engineered for reliable performance in demanding HVAC and refrigeration applications. Featuring a dust-free internal construction and a superior copper coil, it ensures optimal operation with consistent power efficiency. Designed for versatility, the unit includes a universal metal mounting plate that allows for installation in any position, simplifying replacement and maintenance tasks.
Electrical Ratings
Rated Current
50 A
Rated Current
75 A
Resistive per Pole
60 A
Full Load Amps (FLA)
Voltage Specifications
- Max Voltage: 600V
- Coil Voltage: 208/240VAC (50/60 Hz)
- Operating Voltage: 120V
Technical Specifications
Life Rating
| Metric | Cycles |
|---|---|
| Mechanical Life | 1,000,000 |
| Electrical Life | 250,000 |
Torque Specifications (Copper Conductors 75°C)
| Component | Torque |
|---|---|
| Screws | 22 in-lbs |
| Lugs | 50 in-lbs |
- Standards & Certifications
- ARI 780/790CSAUL
Design Features
Key Features
Dust-free internal constructionSuperior copper coilUniversal metal mounting platePosition-independent mounting
