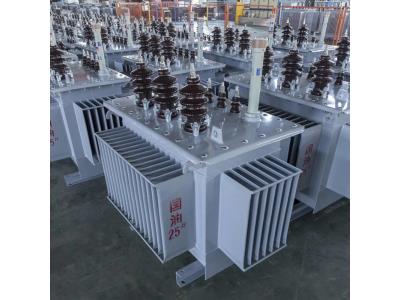

5000 KVA Three-Phase Oil-Immersed Voltage Regulating Transformer

Industrial Power Solution

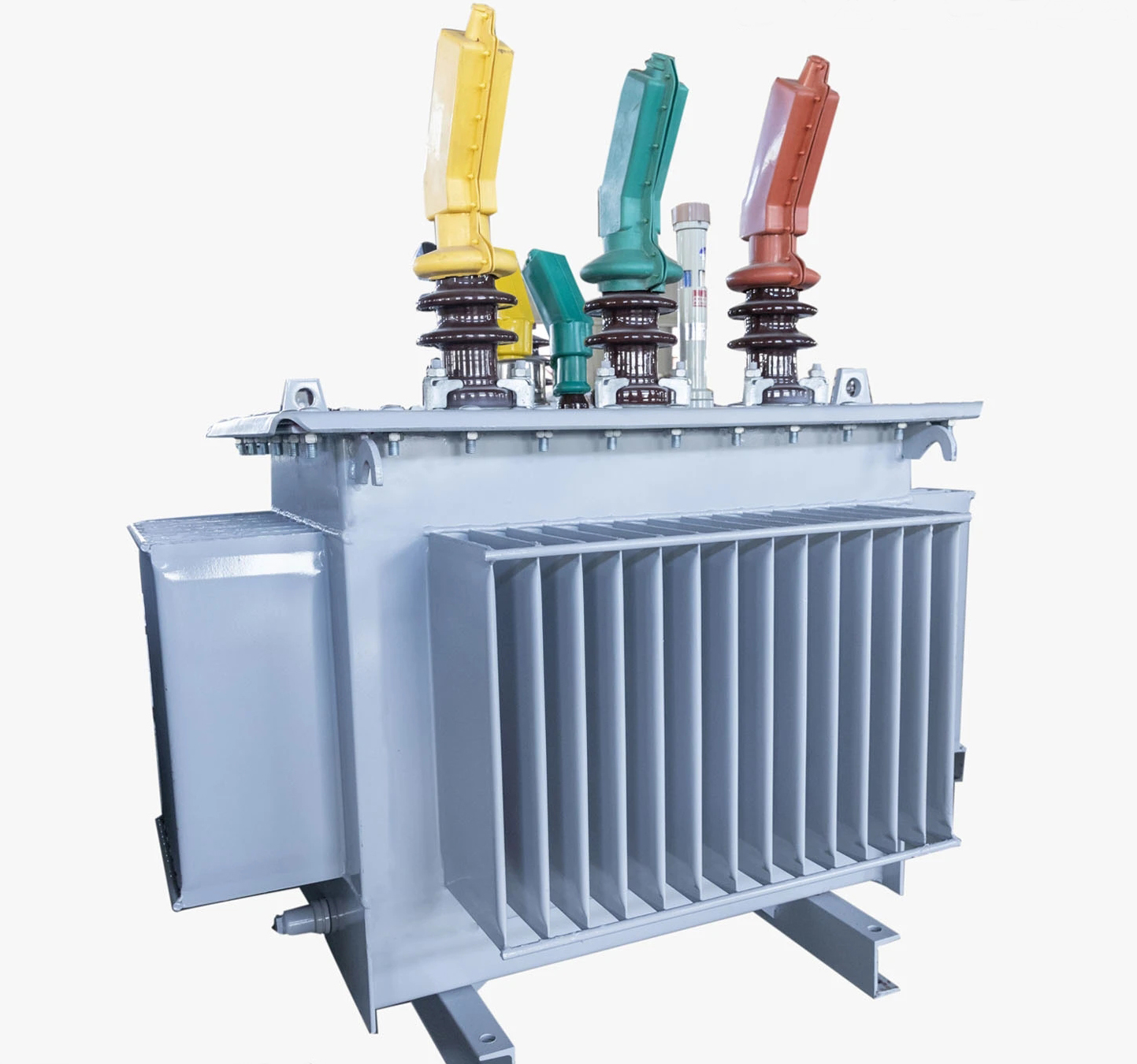

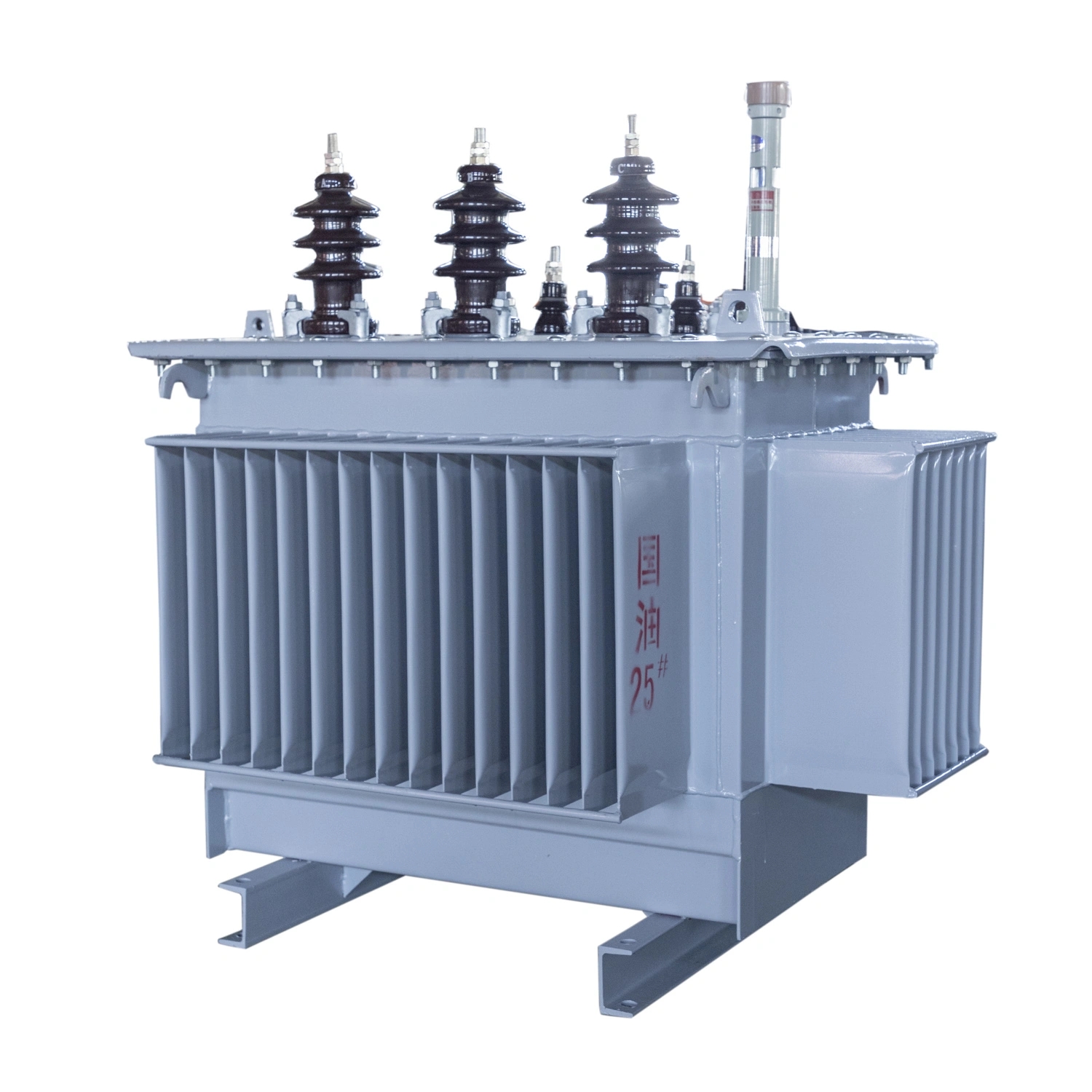

This three-phase, oil-immersed distribution transformer is engineered for reliable voltage regulation and power distribution within 10kV electrical systems. Designed with a robust, high-efficiency core and advanced insulation materials, it ensures optimal performance and long-term durability in demanding industrial and commercial environments. The omniseal design combined with efficient heat-dissipation fins provides superior protection against environmental factors, making it suitable for versatile power network applications.

Normal Service Conditions

• Altitude: < 1000m above sea level
• Max Ambient Temperature: +40°C
• Max Daily Temperature: +30°C
• Max Annual Temperature: +20°C
• Min Outdoor Temperature: -25°C

Special Operating Conditions

• Altitude: > 1000m above sea level
• Temperature Range: -45°C to +40°C
