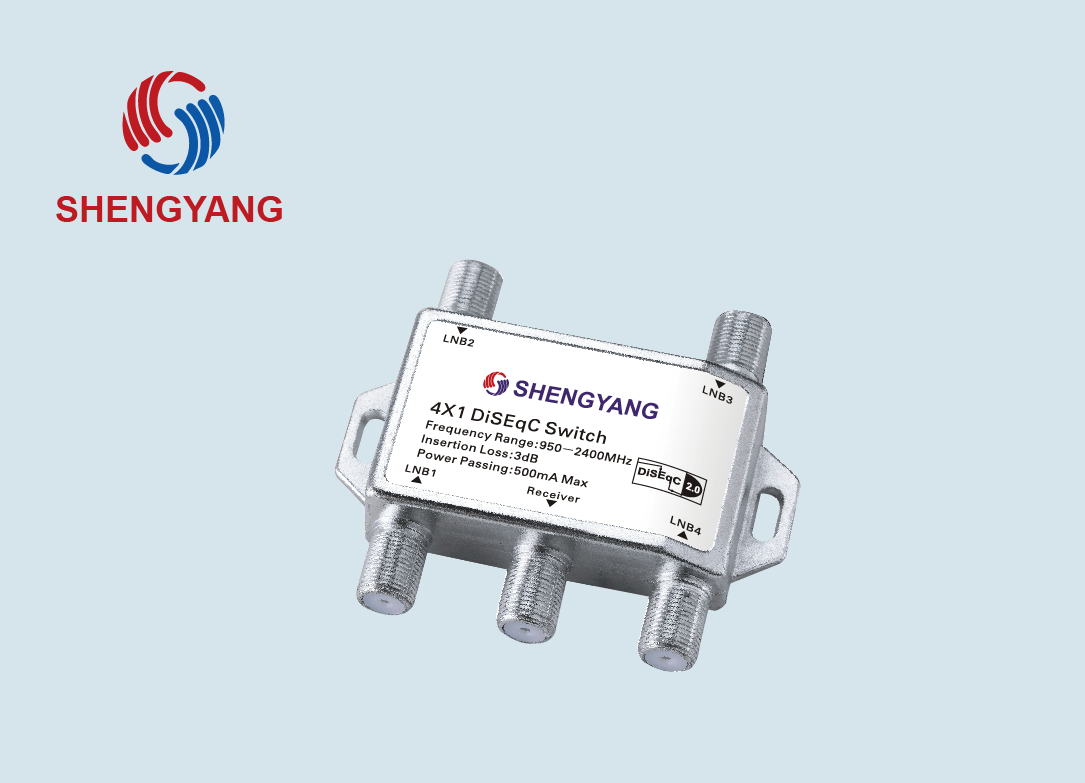

4x1 DiSEqC Switch 950-2400MHz
This DiSEqC (Digital Satellite Equipment Control) switch connects up to four LNBs to a single satellite receiver. It operates within 950-2400MHz and features low insertion loss, minimizing signal degradation.
Technical Specifications
Overview
Professional Satellite Signal Management
The 4x1 DiSEqC switch is a high-performance solution designed to integrate multiple satellite receiver inputs into a single coaxial cable feed. Operating within the 950-2400MHz frequency range, it ensures robust compatibility with standard satellite signals. This device supports advanced DiSEqC 2.0 standards, allowing for reliable switching and control in complex satellite TV installations.
Technical Specifications
Frequency Range
950 MHz
Min Frequency
2,400 MHz
Max Frequency
- Insertion Loss
- 3 dB
- Max Power Passing
- 500 mA
- DiSEqC Standard
- 2.0
- Configuration
- 4 Inputs (LNB) to 1 Output (Receiver)
Features
Key Features
- Seamless integration of multiple satellite receiver inputs
- Low signal degradation design
- Supports power distribution to connected LNBs
- Compatible with standard coaxial satellite distribution networks
