Technical Specifications
Product Overview

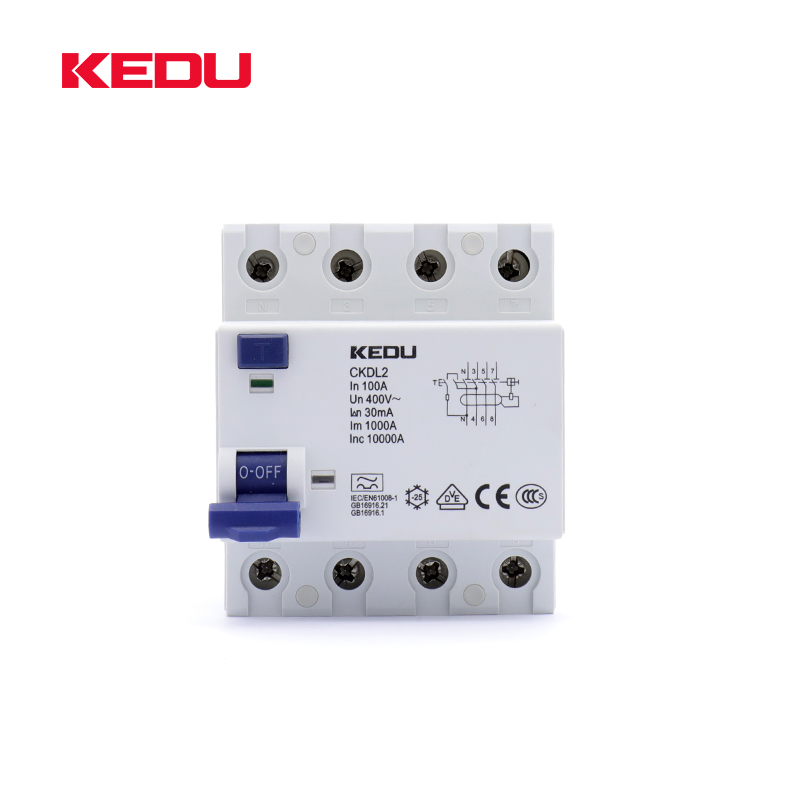

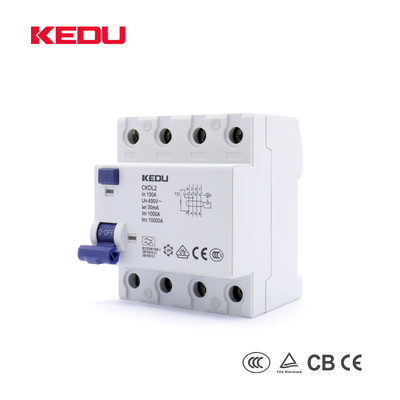

High-Performance Electromagnetic RCCB
The CKDL series electromagnetic residual current circuit breaker is engineered for robust protection in AC 50/60Hz lines. Designed to safeguard personnel and equipment, it rapidly disconnects circuits upon detecting residual leakage current. This versatile device is suitable for a wide range of applications, including industrial facilities, commercial centers, high-rise buildings, and residential installations.
Electrical Ratings
Rated Current
100 A
Rated Current
- Rated Voltage
- 400V (3P+N) / 230V (1P+N)
- Rated Residual Operating Current
- 30 mA
Technical Specifications
- Rated Making and Breaking Capacity
- 1000 A
- Rated Conditional Short-Circuit Current
- 10000 A
- Minimum Operating Temperature
- -25 °C
Compliance & Certification
Compliance Standards
- IEC/EN 61008-1
- IEC/EN 61008-2-1
- GB16916.1
- GB16916.21
Certifications
VDECCCCBCE
