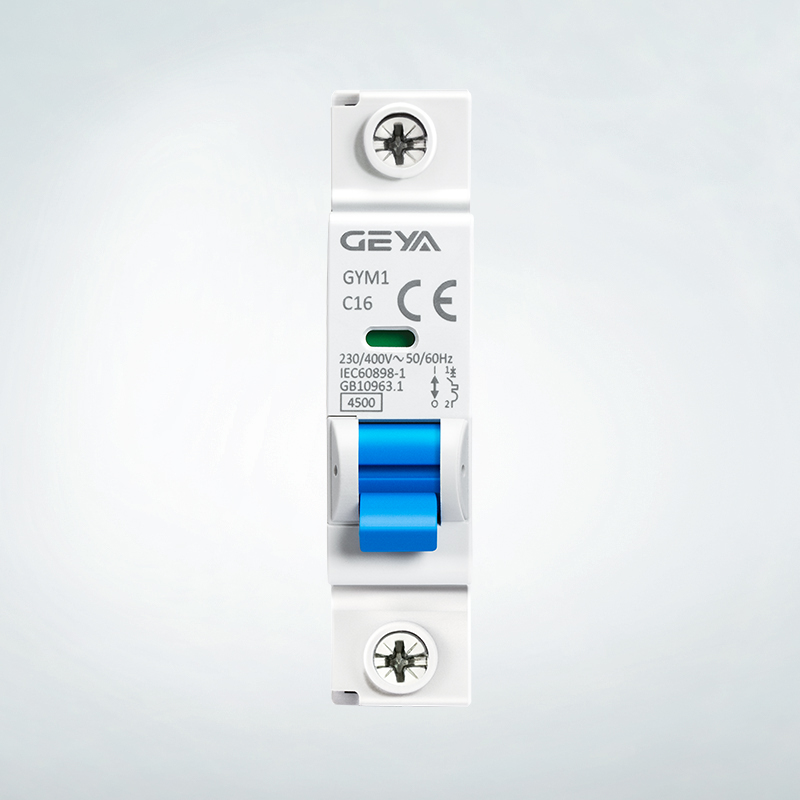

4.5kA Miniature Circuit Breaker
This miniature circuit breaker provides reliable protection against overloads and short circuits. It is rated for 230/400V AC systems at 50/60Hz and complies with IEC60898-1 and GB10963.1 standards.
Technical Specifications
Product Overview
Reliable Circuit Protection
The GYM1 series miniature circuit breaker is a compact, high-performance device engineered for residential, commercial, and industrial electrical systems. It provides essential protection against overloads and short circuits, ensuring system safety and longevity. With a robust breaking capacity of 4.5kA and versatile mounting options, it is an ideal solution for general-purpose circuit management.
Electrical Ratings
Breaking Capacity
4.5 kA
Breaking Capacity
- Rated Voltage
- 230/400V AC
- Frequency
- 50 Hz
Technical Specifications
- Tripping Characteristic
- C-curve (C16)
- Mounting
- DIN Rail
Standards & Compliance
- Standards
- IEC60898-1GB10963.1CE
Features
Installation Features

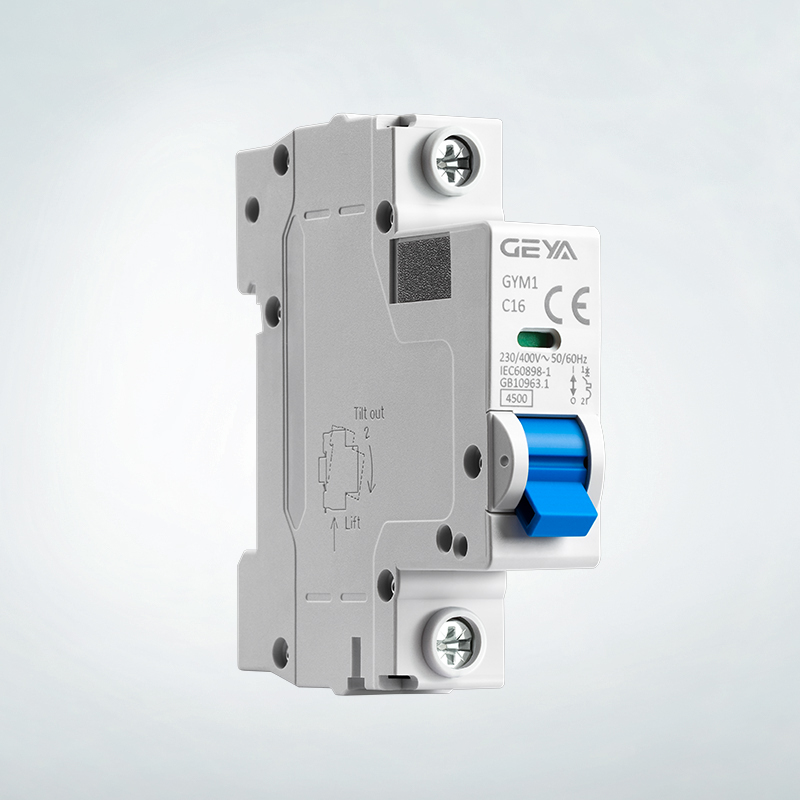

- Tilt-out mechanism
- Lift installation system
- Clear on/off indication
