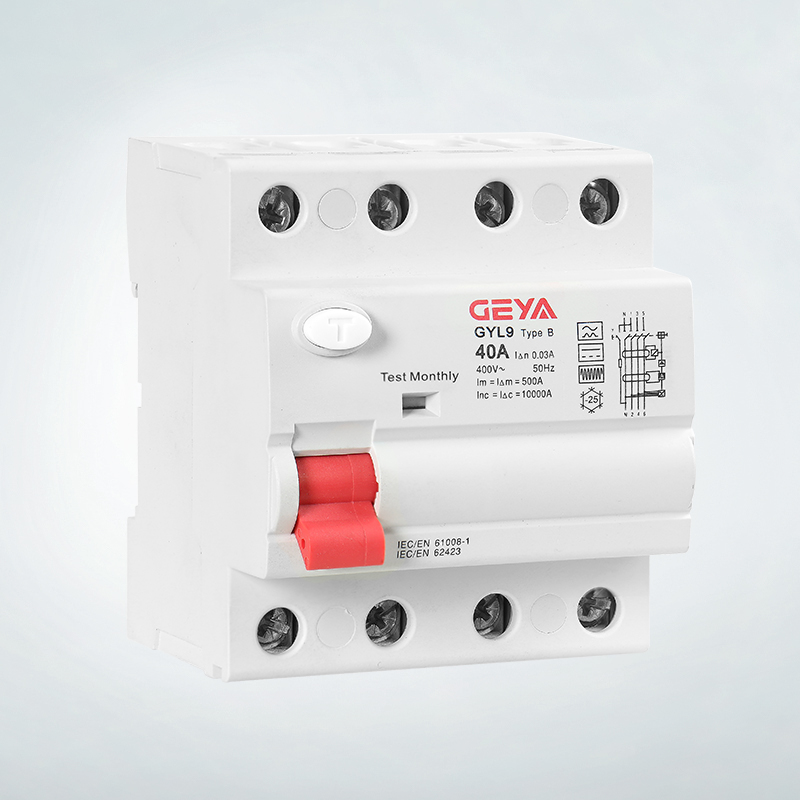

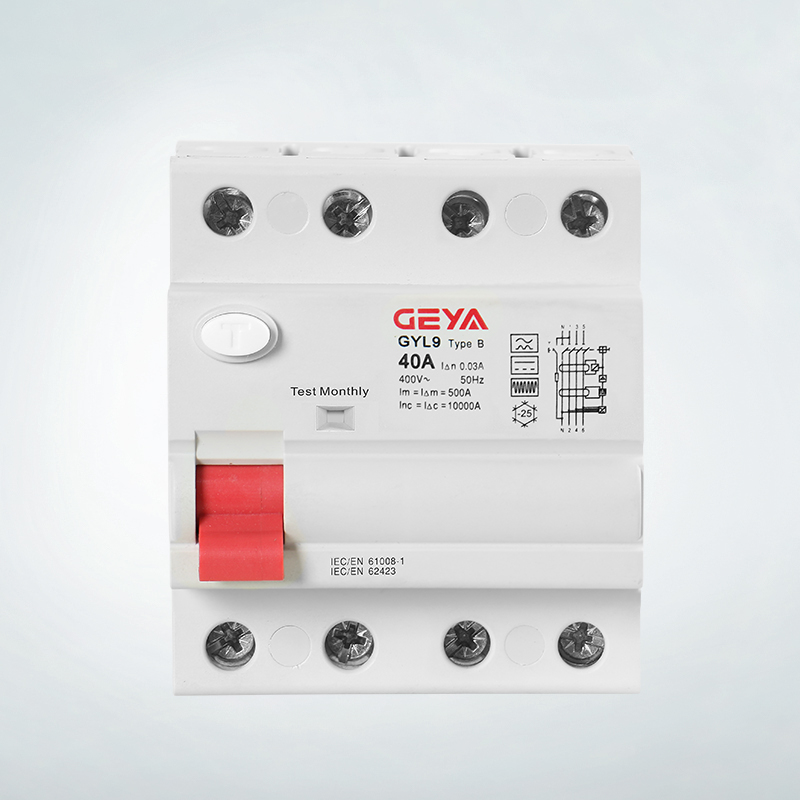

40A Type B Residual Current Circuit Breaker
This 40A Type B residual current circuit breaker (RCCB) is designed for electrical protection. It has a 0.03A residual operating current and complies with IEC/EN standards.
Technical Specifications
Overview
Advanced Protection for Modern Electrical Systems
This Type B Residual Current Circuit Breaker (RCCB) provides comprehensive protection by detecting both high-frequency AC and pure DC earth leakage currents. Designed for demanding applications such as EV charging, PV installations, and UPS systems, it ensures safety against fire hazards and indirect contact. Its instantaneous tripping mechanism offers reliable, immediate disconnection to safeguard both people and sensitive electrical infrastructure.
Technical Specifications
- Rated Current
- 40 A
- Rated Voltage
- 400 V
- Residual Operating Current (IΔn)
- 0.03 A
- Frequency
- 50 Hz
- Impulse Current (Im)
- 500 A
- Rated Conditional Short-Circuit Current
- 10000 A
- Minimum Operating Temperature
- -25 °C
Compliance & Standards
- Standards Compliance
- IEC/EN 61008-1IEC/EN 62423
Features
Typical Applications
- EV & PV installations
- Frequency converters
- UPS installations
- High-frequency power converters
- Building site power supply cabinets
Key Features
Instantaneous TrippingType B DetectionMonthly Test ButtonVisual Status Indication
