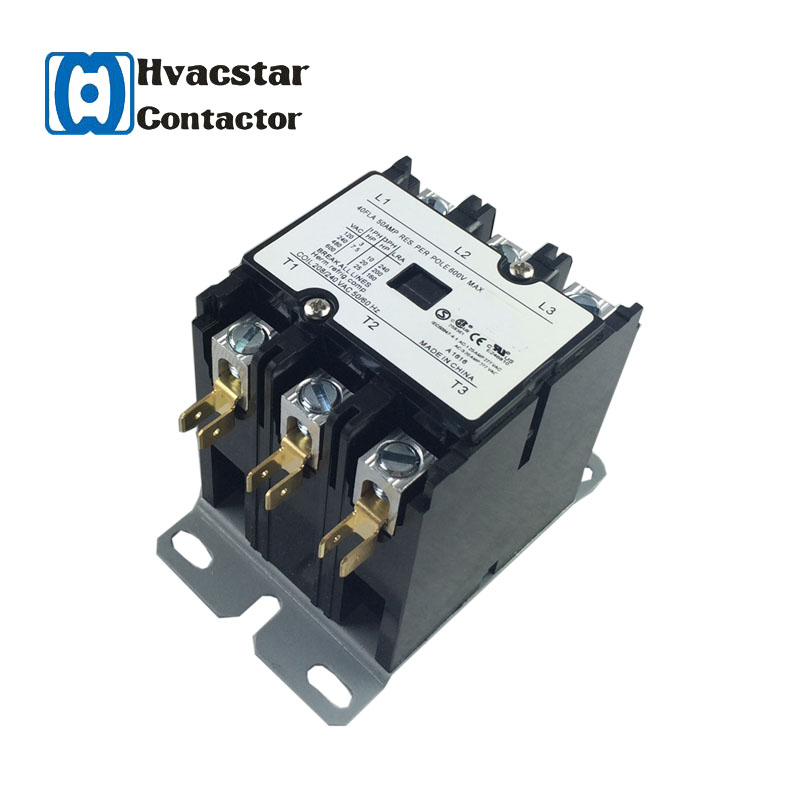

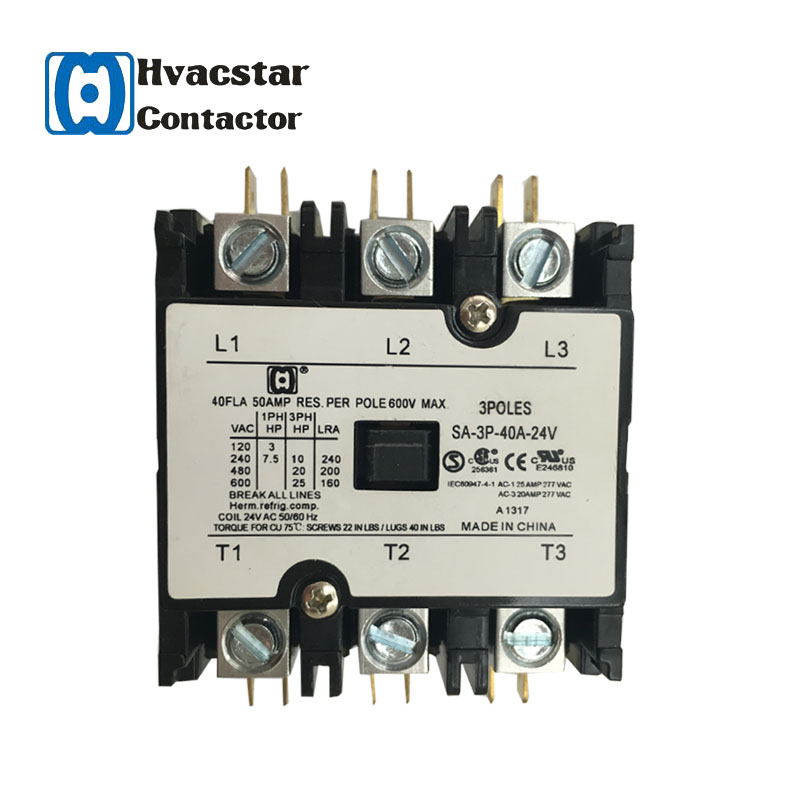

40A Three-Phase AC Contactor
This three-phase AC contactor is designed for electrical applications. The contactor features a robust electrical and magnetic mechanism and supports a 40A current rating.
Technical Specifications
Overview
High-Performance AC Contactor
This 3-pole magnetic AC contactor is engineered for demanding HVAC and refrigeration applications. It supports a 40 FLA current rating and is designed to break all lines, making it suitable for hermetic refrigeration compressors. With CE certification and robust construction, it offers reliable performance in both single-phase and three-phase electrical systems.
Electrical Ratings
- Full Load Amps (FLA)
- 40 A
- Resistive Load Per Pole
- 50 A
- Maximum Voltage
- 600 V
Performance Metrics
Horsepower Ratings
| Voltage | 1-Phase HP | 3-Phase HP |
|---|---|---|
| 120V | 3 | 0 |
| 240V | 7.5 | 10 |
| 480V | 0 | 20 |
| 600V | 0 | 25 |
Locked Rotor Amps (LRA)
240 A
240V
200 A
480V
160 A
600V
Technical Specifications
Torque Requirements (Copper 75°C)
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
- Number of Poles
- 3
- Certifications
- CEIEC60947-4-1
Purchase Information
Frequently Asked Questions
| Question | Answer |
|---|---|
| Customization | OEM and ODM available |
| Quality Assurance | 100% self-inspection and testing |
| Delivery Time | 15-20 days after deposit |
