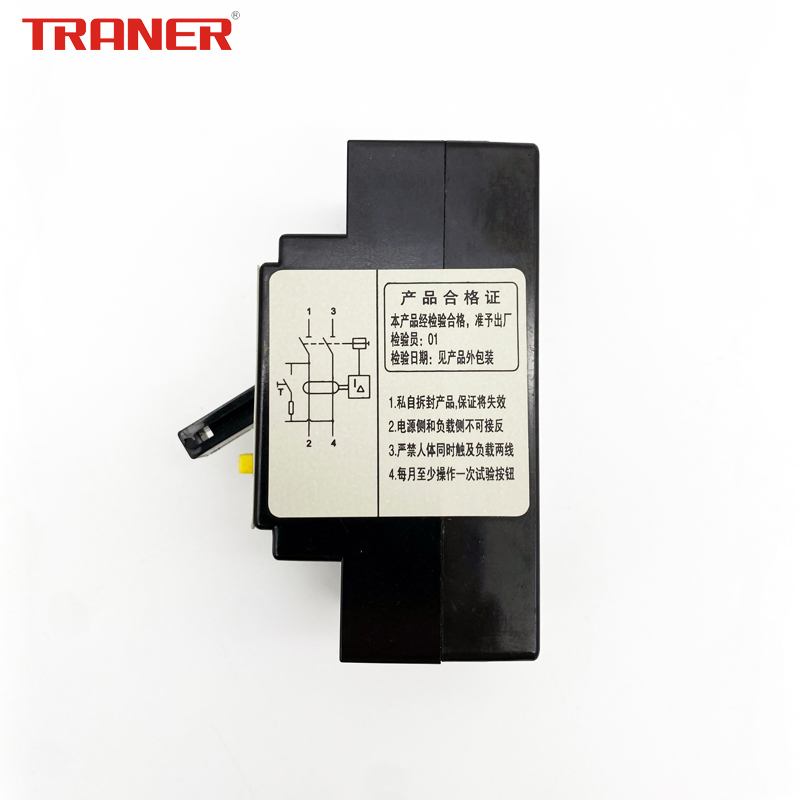

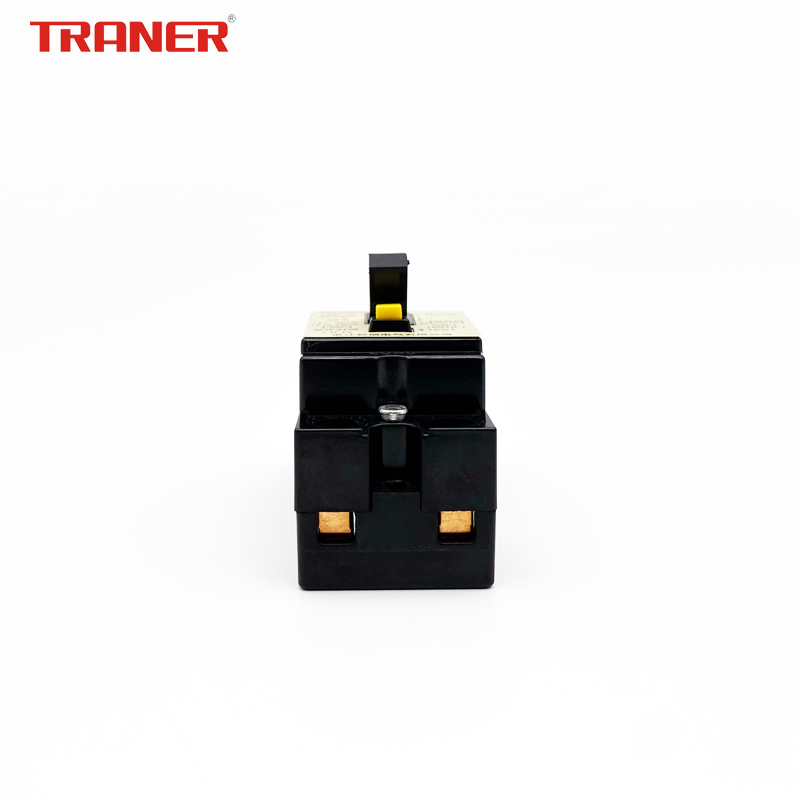

40A Earth Leakage Protection Switch
This earth leakage protection switch provides ground fault protection. It has a compact size and easy assembly.
Technical Specifications
Overview
Compact Earth Leakage Protection
The TRL-40 series is a precision-engineered mini safety breaker designed for superior earth leakage and ground fault protection. Featuring a compact and patent-protected design, this unit ensures reliable operation in various residential, commercial, and industrial electrical systems. It provides robust electrical safety by detecting and interrupting ground fault currents effectively.
Key Advantages
- Compact physical footprint for space-constrained installations
- Simplified, easy assembly process
- Advanced patent-protected design
Electrical Ratings
Performance Metrics
500 A
Switch-on Breaking Capacity
2.5 KA
Short Circuit Current
0.1 s
Residual Current Off-time
- Rated Current Options
- 16A20A25A32A40A
Technical Specifications
Detailed Specifications
| Feature | Detail |
|---|---|
| Poles | 2 |
| Rated Voltage | 110V AC / 220V AC |
| Operating Residual Current | 15mA / 30mA |
| Electrical Endurance | 1000 operations |
| Mechanical Endurance | 2000 operations |
| Operation Type | AC |
Compliance
Certifications & Standards
IEC/EN 61008-1GB 16916.1CECCC
