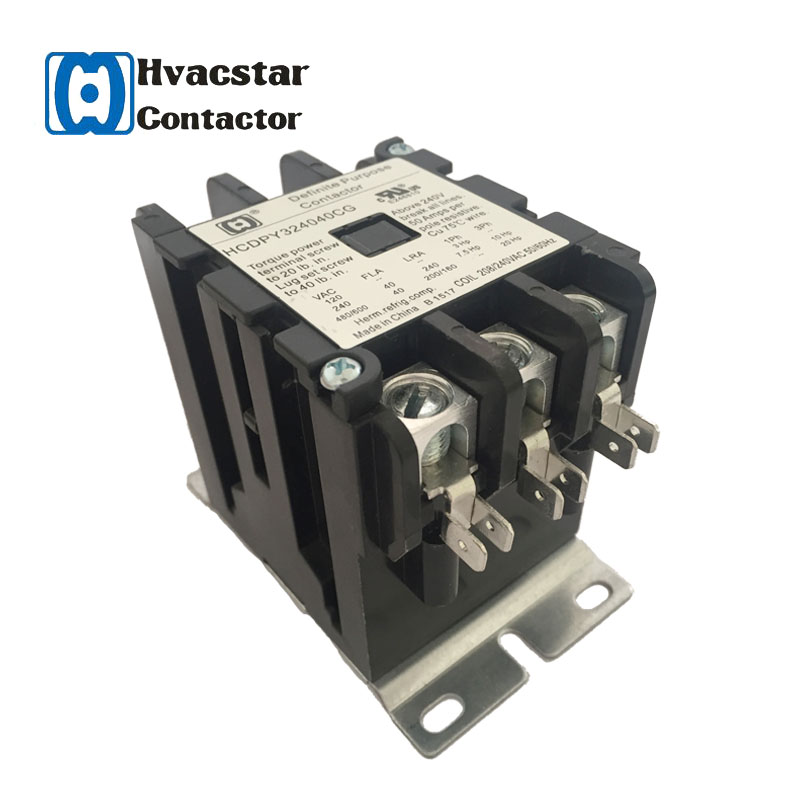

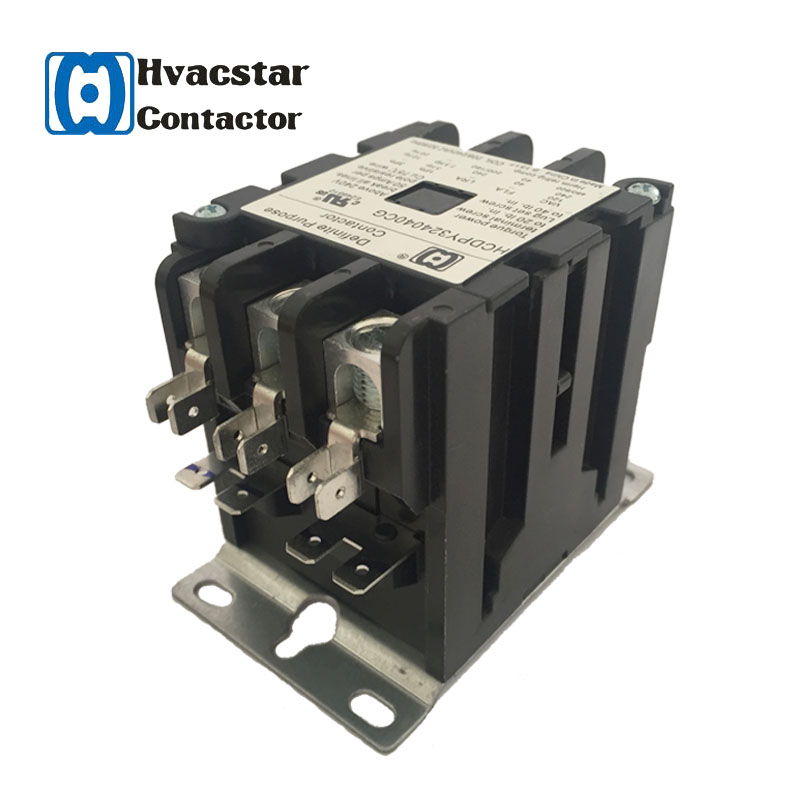

40A 3-Pole AC Definite Purpose Contactor 24-277V
This definite purpose contactor is designed for commercial HVAC, refrigeration, and resistive heating applications. The 3-pole contactor meets USA/Canada standards for electrical and mechanical requirements.
Technical Specifications
Overview
High-Performance Definite Purpose Contactor
This 3-pole definite purpose contactor is engineered for reliable performance in demanding HVAC and refrigeration applications. Designed to handle both resistive and inductive loads, it ensures seamless control for compressors, motors, and heating elements. Built with high-quality materials, this contactor offers robust durability and consistent operation in varied electrical environments.
Electrical Ratings
Rated Current (FLA)
40 A
Full Load Amps
50 A
Resistive Load (per pole)
- Coil Voltage
- 208/240VAC 50/60Hz
- Operating Voltage Range
- 24-277V
Performance
Horsepower Ratings
| Configuration | Voltage | Rating |
|---|---|---|
| 1-Phase | 240V | 3 HP |
| 3-Phase | 240V | 7.5 HP |
| 3-Phase | 480/600V | 15 HP |
Installation
Torque Specifications
- Terminal Screw: 20 lb. in.
- Lug Set Screw: 40 lb. in.
- Wire Compatibility
- Copper (Cu) 75°C wire
Compliance & Services
- Service & Customization
- OEM AvailableODM Available100% Self-InspectionQuality Guarantee
