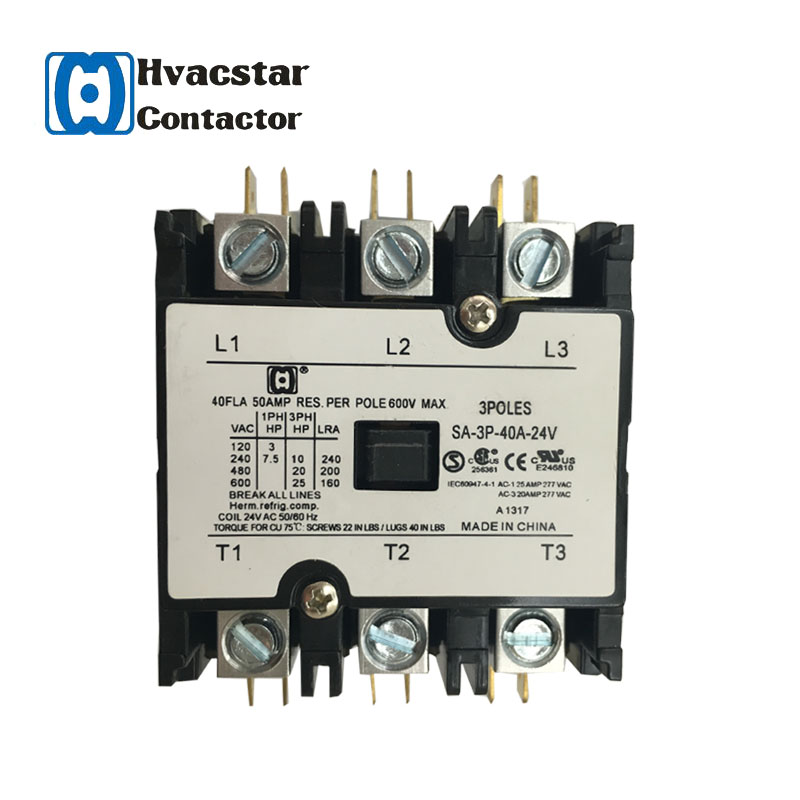

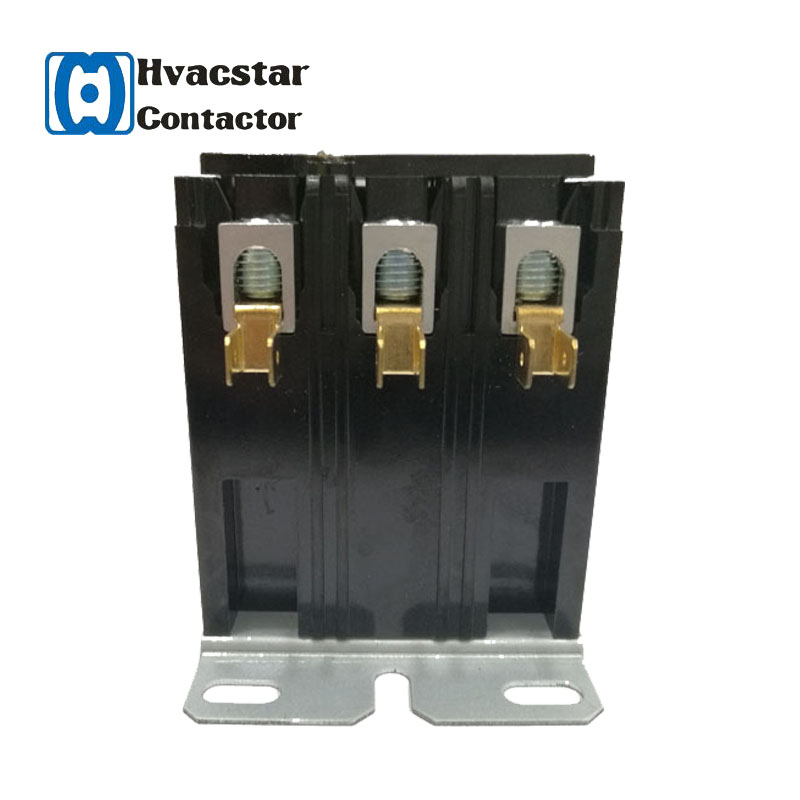

40A 3-Pole AC Contactor for HVAC&R
This 3-pole AC contactor is rated for 40A and is designed for HVAC&R applications. It supports both 1-phase and 3-phase systems and is CE certified.
Technical Specifications
Overview
High-Performance HVAC Contactor
This 3-pole AC contactor is engineered specifically for HVAC&R applications, offering reliable switching for both single-phase and three-phase systems. It features a robust design capable of handling up to 40 FLA and 50A resistive loads, ensuring durability in demanding refrigeration and air conditioning environments. With global certifications including CE and cULus, this component meets rigorous safety and performance standards for professional installations.
Electrical Ratings
- Full Load Amps (FLA)
- 40 A
- Resistive Load per Pole
- 50 A
- Maximum Voltage
- 600 V
- Coil Voltage
- 24V AC 50/60 Hz
Performance Metrics
Horsepower Ratings
| Voltage/Phase | Rating |
|---|---|
| 120V (1-Phase) | 3 HP |
| 240V (1-Phase) | 7.5 HP |
| 240V (3-Phase) | 10 HP |
| 480V (3-Phase) | 20 HP |
| 600V (3-Phase) | 25 HP |
Locked Rotor Amps (LRA)
240 A
240V
200 A
480V
160 A
600V
Compliance & Standards
AC Ratings (at 277 VAC)
- AC-1: 25A
- AC-3: 20A
- Certifications
- CEcULusIEC60947-4-1
Installation
Tightening Torque (Copper at 75°C)
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
