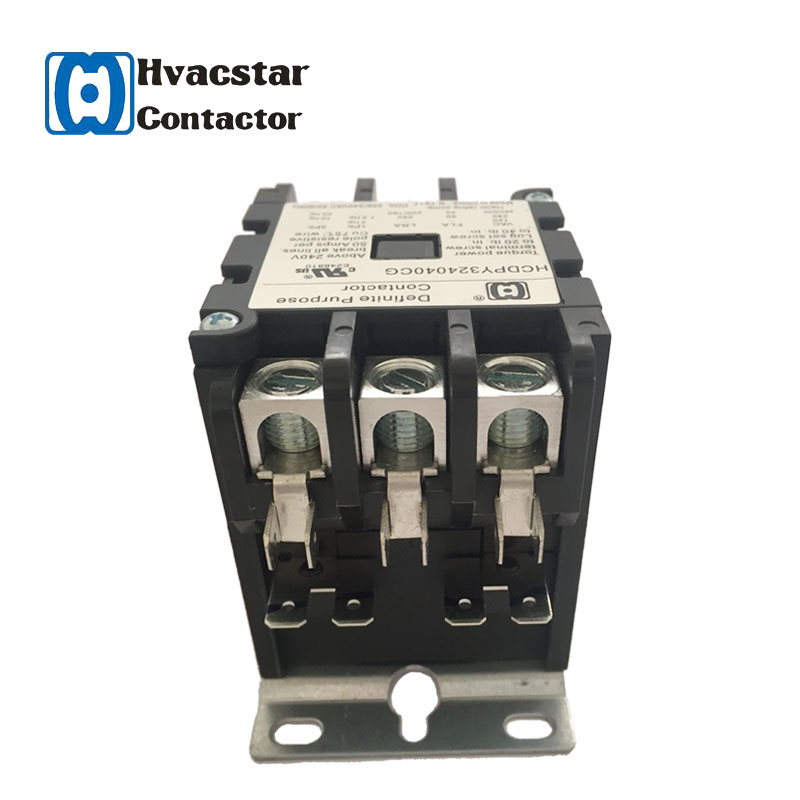

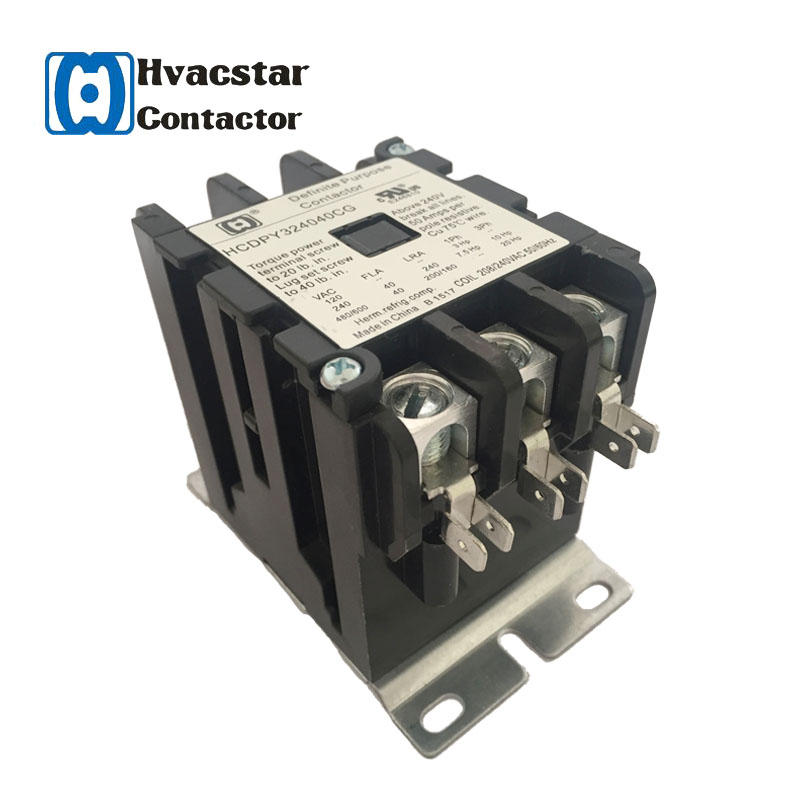

40A 3-Pole AC Contactor for HVAC Systems
This 40A 3-pole AC contactor is designed for HVAC systems. It provides reliable switching for motors and electrical loads in air conditioning, refrigeration, and heating systems.
Technical Specifications
Product Overview
Reliable HVAC Control Solution
This 40A 3-Pole Definite Purpose AC Contactor is engineered to meet or exceed electrical and mechanical requirements for HVAC and refrigeration systems in the USA and Canada. Designed for flexibility, it features a magnetic electronic design suitable for controlling compressors, pumps, and heating elements. With a robust construction and multiple certification standards, it provides a durable switching solution for demanding B2B applications.
Key Performance Metrics
Key Performance Metrics
40 A
Full Load Amps (FLA)
3 P
Number of Poles
50 A
Resistive Amps
Electrical Ratings
Life Rating Options
- 100,000 cycles
- 250,000 cycles
- Operating Voltages
- 120V240V480V600V
- Coil Voltage
- 208/240VAC 50/60Hz
Motor Load Capacity

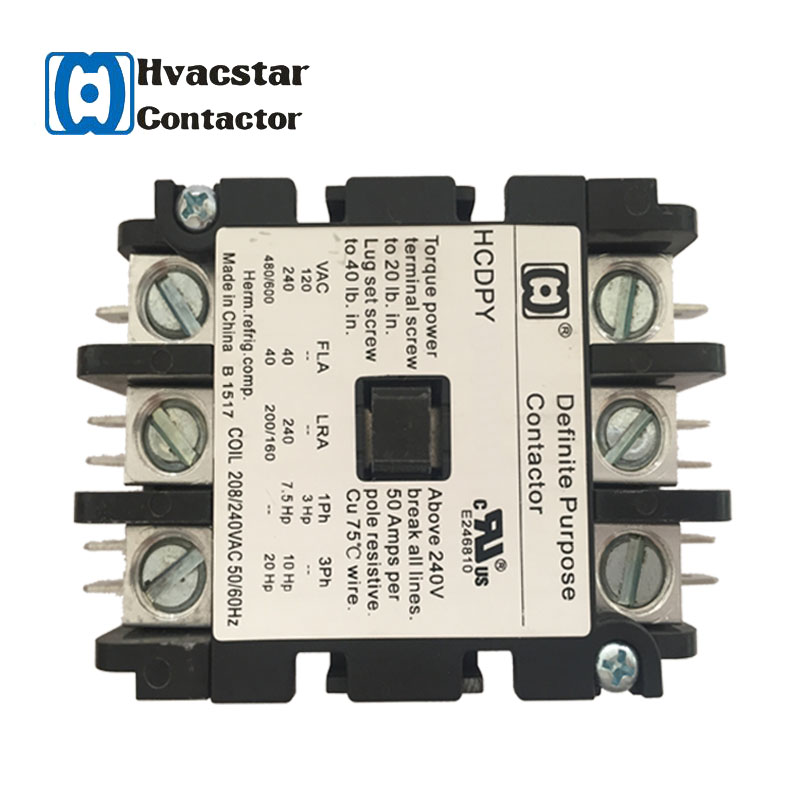

Motor Horsepower & LRA Ratings
| Voltage (VAC) | FLA (A) | 1Ph HP | 3Ph HP | LRA (A) |
|---|---|---|---|---|
| 120 | 40 | 3 | 0 | 240 |
| 240 | 40 | 7.5 | 10 | 200 |
| 480 | 40 | 0 | 20 | 160 |
Installation & Hardware

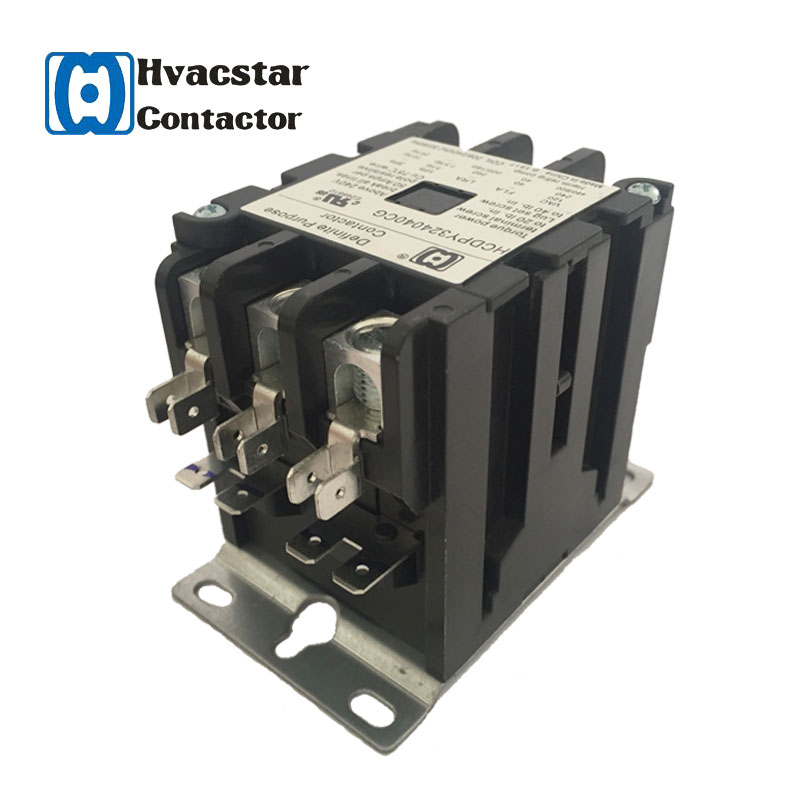

- Terminal Screw Torque
- 20 lb. in.
- Lug Set Screw Torque
- 40 lb. in.
- Wire Requirement
- Cu 75°C wire
Applications
Target Applications
- Air Conditioning & Refrigeration
- Heating Systems
- Food Service Equipment
- Compressors & Pumps
- Vending Machines
- Cranes & Hoists
- Welding Machines
- Lighting Control
Compliance & Quality
Certifications
ULCULCSACES MARKROHSCCC
- Standard Compliance
- Definite Purpose standard of USA/Canada
