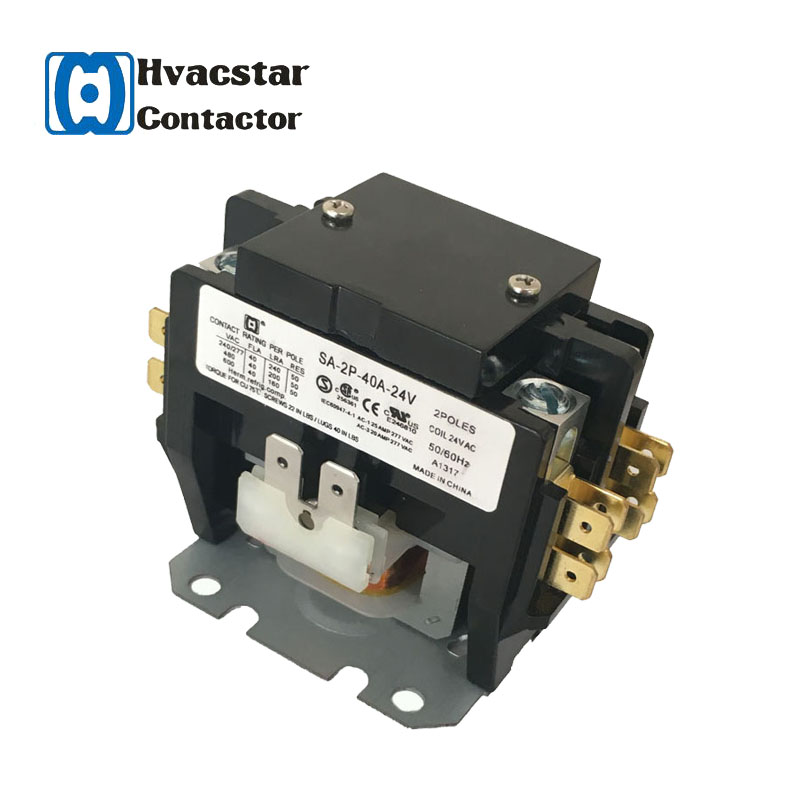

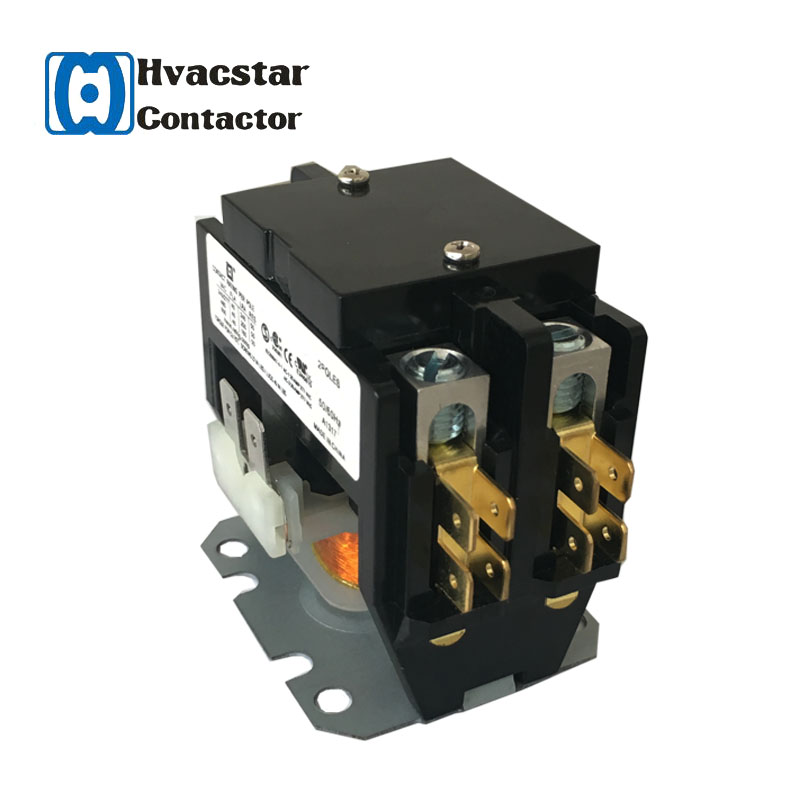

40A 2-Pole Contactor
This 2-pole contactor is rated for 40A. It features silver cadmium oxide contacts.
Technical Specifications
Product Overview
Professional HVAC Contactor
This 2-pole contactor is specifically engineered for reliable performance in air conditioning and refrigeration systems. It provides robust electrical switching with a 40A rating and supports a wide voltage range from 24V to 480V. Built to withstand demanding environments, this component offers exceptional mechanical and electrical longevity to ensure stable operation in industrial and commercial HVAC applications.
Technical Specifications
Performance Metrics
40 A
Rated Current
2
Number of Poles
24 VAC
Coil Voltage
Operational Lifespan
| Load Type | Cycles |
|---|---|
| Resistance Load | 250,000 |
| Horsepower Load | 100,000 |
| Mechanical Life | 1,000,000 |
- Voltage Range
- 24V-480V
Standards & Compliance
- Certifications
- IEC60947-4-1
