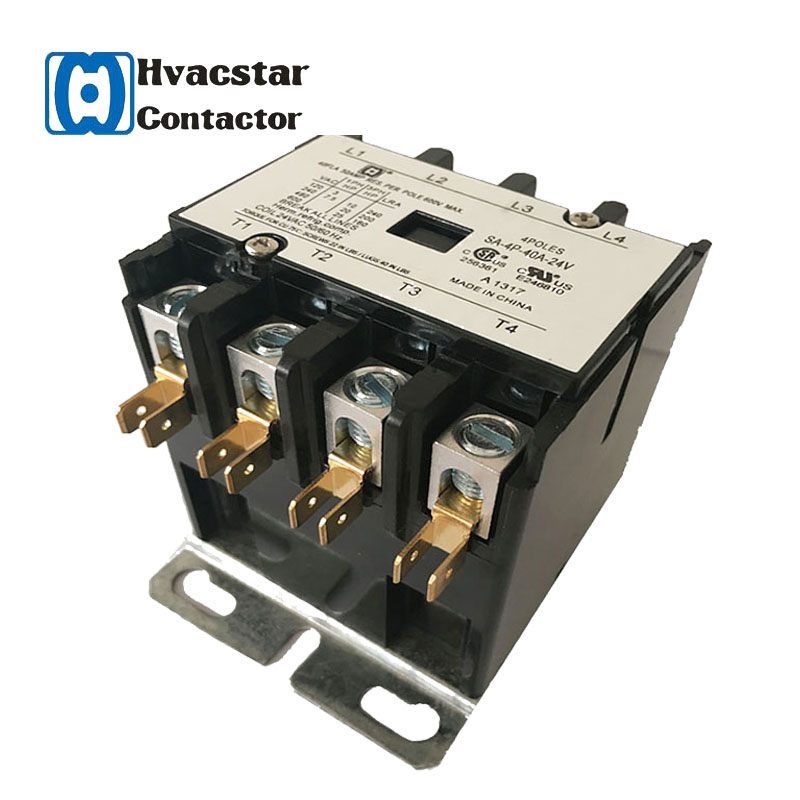

4-Pole AC Magnetic Contactor
This 4-pole AC magnetic contactor is designed for electronic AC applications. It is suitable for switching electrical circuits in heating, ventilation, air conditioning, and refrigeration systems.
Technical Specifications
Overview
High-Performance 4-Pole HVAC Contactor

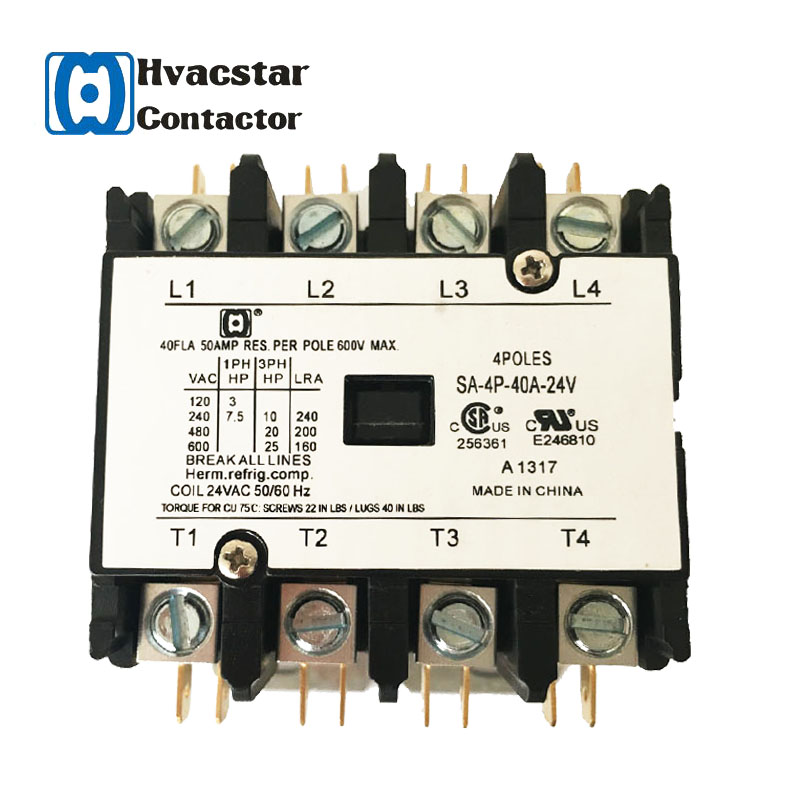

This CUL certified definite purpose magnetic contactor is engineered for demanding HVAC and refrigeration applications. Featuring a 4-pole design and rated for up to 40FLA, it provides reliable switching for both single-phase and three-phase configurations. Designed to break all lines, it is specifically suitable for hermetic refrigeration compressors and electronic AC systems.
Electrical Ratings
Key Electrical Ratings
40 A
Full Load Amps (FLA)
50 A
Resistive Amps
600 V
Max Voltage
24 VAC
Coil Voltage
3-Phase Horsepower Ratings
| Voltage (VAC) | Horsepower (HP) | LRA |
|---|---|---|
| 120 | 3 | — |
| 240 | 10 | 240 |
| 480 | 20 | 200 |
| 600 | 25 | 160 |
Technical Configuration
- Number of Poles
- 4
- Coil Frequency
- 50/60 Hz
- Application Type
- HVACDefinite PurposeHermetic RefrigerationElectronic AC
Installation & Materials
Torque Specifications (Copper 75°C)
- Screws: 22 in-lbs
- Lugs: 40 in-lbs
Compliance & Quality
Certifications
CUL CertifiedcULus100% Self-inspection
- Quality Assurance
- 100% self-inspection and testing before packing
Commercial Information
- Standard Delivery Time
- 15-20 days after deposit
