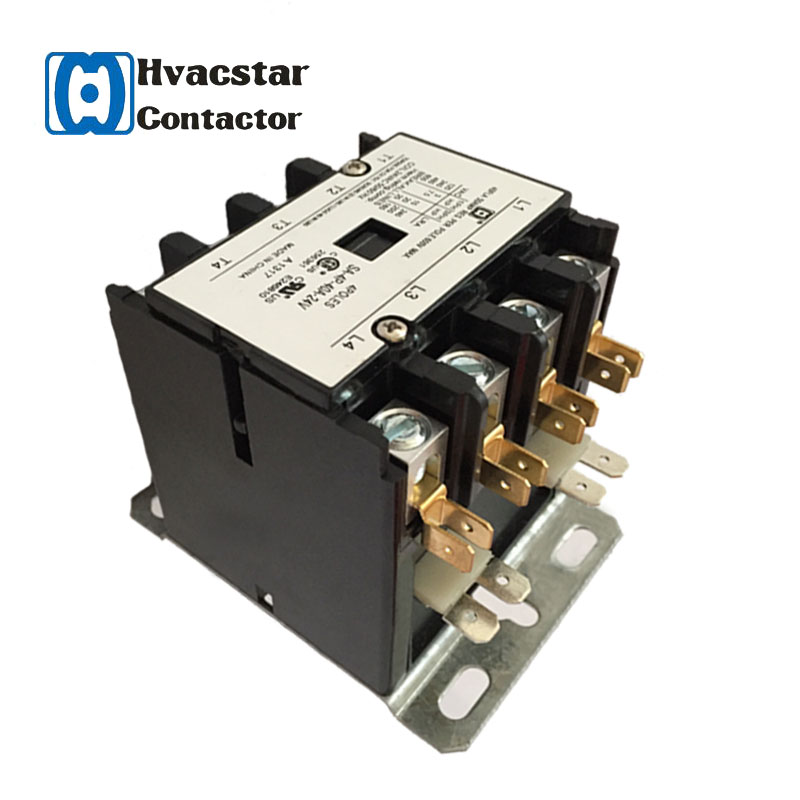

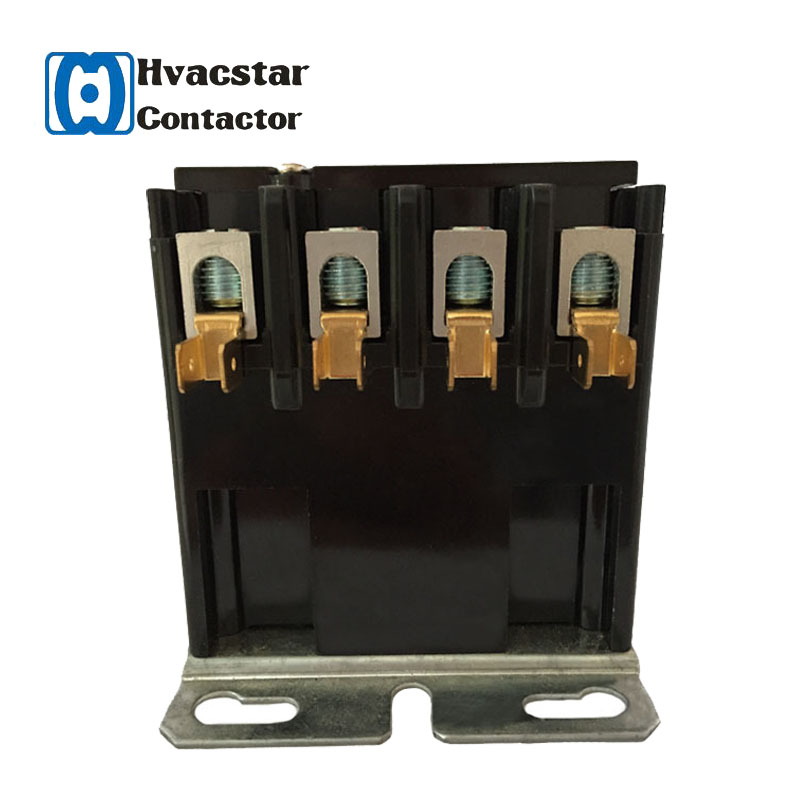

4-Pole AC Definite Purpose Contactor
This 4-pole AC definite purpose contactor is CUL certified and designed for HVAC applications. It is used for switching AC power to control compressors, fans, and other electrical loads.
Technical Specifications
Product Overview
High-Performance HVAC Definite Purpose Contactor
This 4-pole AC definite purpose contactor is engineered for reliable switching in HVAC and refrigeration applications, specifically for controlling compressors and fans. It features a robust design capable of handling up to 40A, ensuring durability in demanding environments. With CUL certification and 100% self-inspection testing, this contactor provides a safe and high-quality solution for hermetically sealed refrigeration systems.
Technical Specifications
Rated Current
40 A
Full Load Amps
- Number of Poles
- 4
- Coil Voltage
- 24VAC 50/60 Hz
- Voltage Compatibility
- 24V - 277V
Performance Ratings
Load Ratings & Capacity
| Voltage (V) | Horsepower (HP) | Locked Rotor Amps (LRA) |
|---|---|---|
| 120 | 7.5 | 45 |
| 240 | 10 | 72 |
| 277 | 15 | 0 |
Installation & Safety
Terminal Identifiers
- L1, L2, L3, L4 (Line)
- T1, T2, T3, T4 (Load)
- A1, A2 (Coil)
- Compliance & Certifications
- CUL CertifiedCEHVAC&R Standard
- Terminal Torque
- 40 LB-IN (4.5 Nm) for 14-10AWG CU/CU
Business Terms
Service & Quality
- 100% self-inspection before packing
- OEM and ODM customization available
- Free samples available for testing
- Quality guarantee with item replacement promise
- Delivery Lead Time
- 15-20 days after deposit
- Payment Terms
- 30% deposit, balance against B/L copy
