32A Earth Leakage Protection RCCB
This residual current circuit breaker (RCCB) offers earth leakage protection. The 32A device is designed to prevent electrical shocks and fire hazards.
Technical Specifications
Product Overview

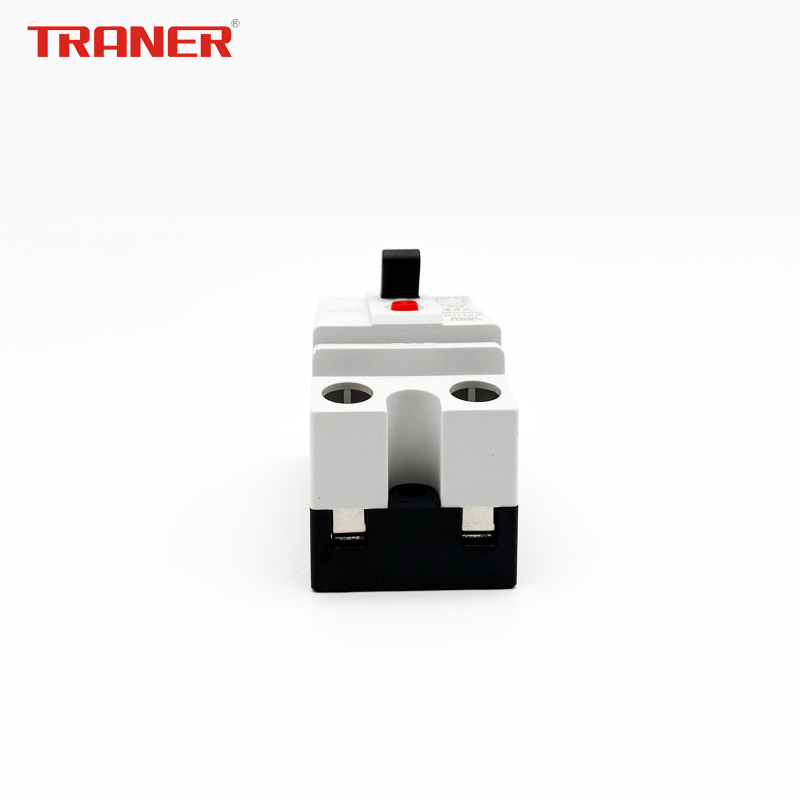

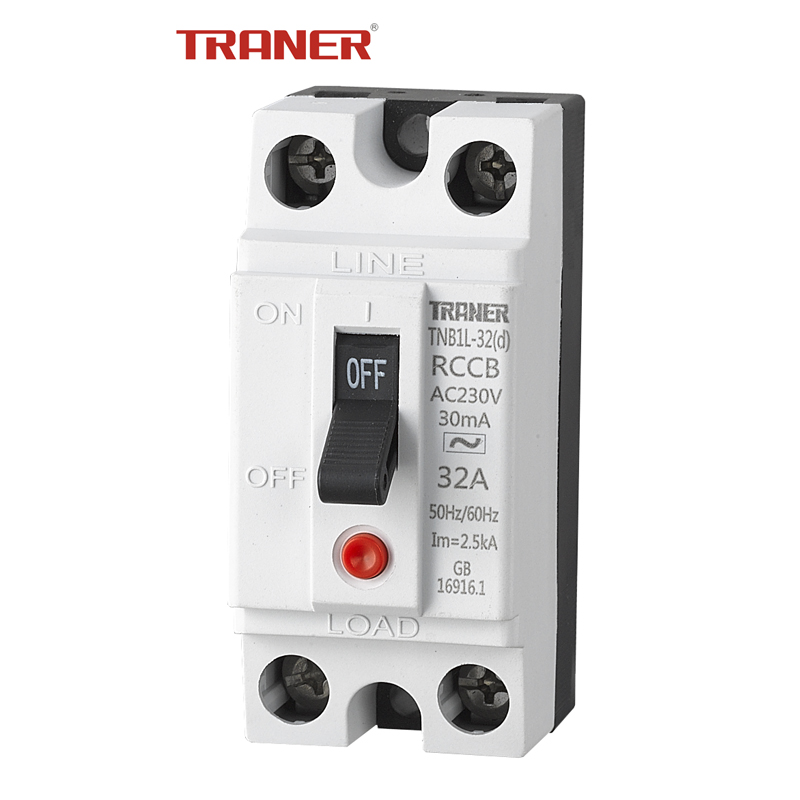

TNB1L-32(d) Series Mini Safety Breaker
The TNB1L-32(d) is a high-performance residual current circuit breaker designed for reliable earth leakage protection in residential, commercial, and industrial electrical systems. This compact, patent-designed device ensures rapid interruption of circuits during ground faults to prevent electrical shock and fire hazards. It complies with major international and national safety standards, including IEC/EN 61008-1, providing professional-grade safety and easy installation.
Technical Specifications
Rated Current
- 16
- 20
- 25
- 32
Rated Voltage
- 110
- 220
Rated Residual Current
15 mA
Operating IΔn
30 mA
Operating IΔn
- Product Code
- TNB1L-32(d)
- Rated Limited Short Circuit Current
- 2.5 kA
- Number of Poles
- 2
- Residual Current Off-time
- 0.1 s
Standards & Compliance
- Certifications
- CECCC
- Compliance Standards
- IEC/EN 61008-1GB 16916.1
Physical Dimensions
- Size (L x W x H)
- 70mm * 32mm * 53mm
Durability
Endurance Operations
| Type | Cycles |
|---|---|
| Electrical | 1,000 |
| Mechanical | 2,000 |
