32A Earth Leakage Circuit Breaker with Overload Protection
This 32A earth leakage circuit breaker provides reliable protection against overloads and ground faults. It is designed to ensure the safety of electrical installations and equipment.
Technical Specifications
Product Overview
Professional Circuit Protection

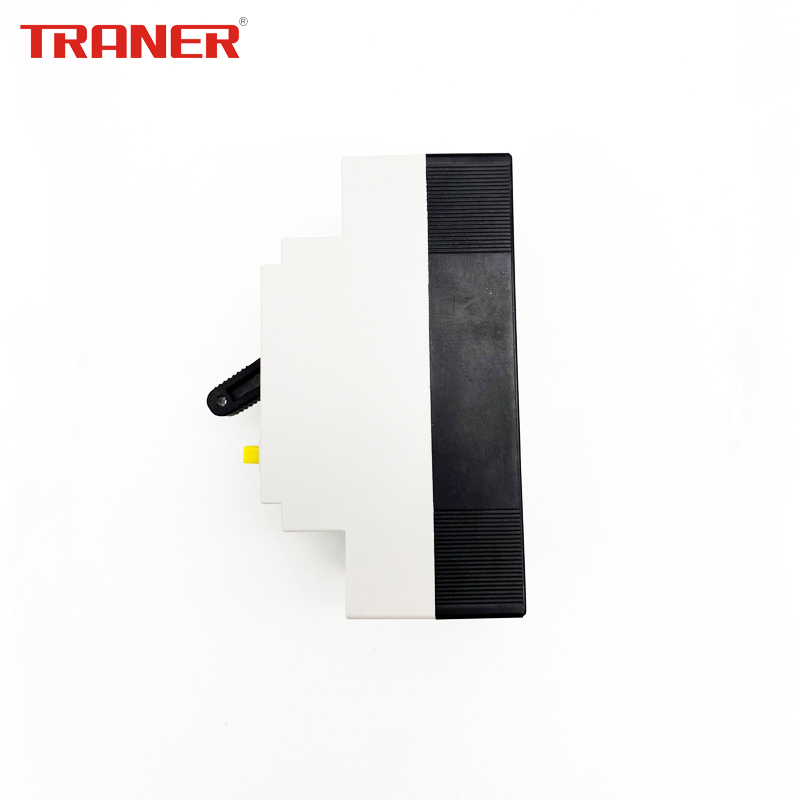

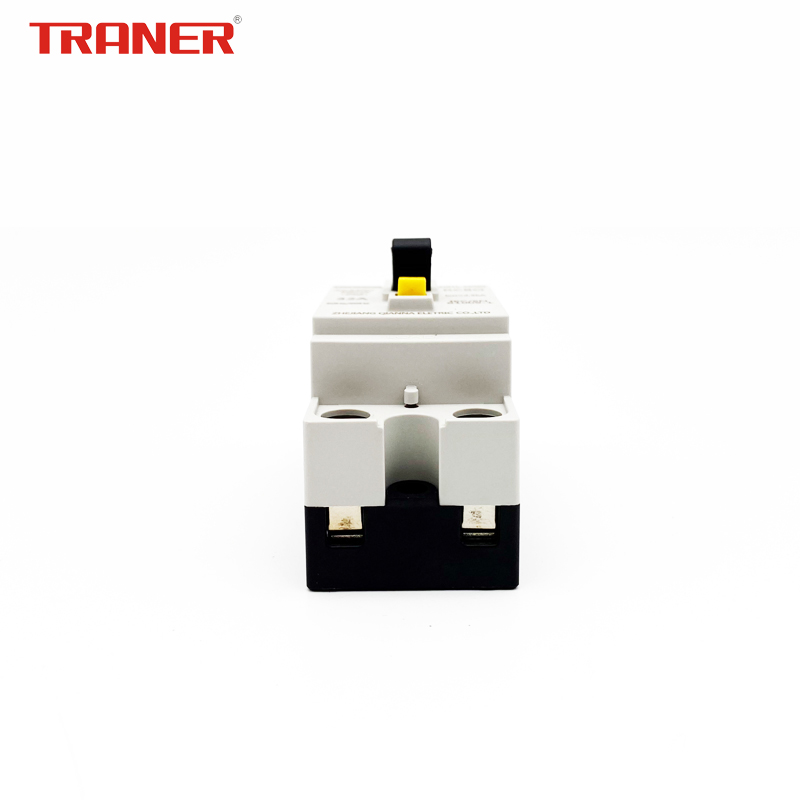

The TNB1L-32G(c) is a high-performance residual current circuit breaker with overload protection (RCBO), designed to safeguard electrical systems against earth leakage, overloads, and short circuits. This compact safety breaker is engineered for reliability in power transmission and distribution, featuring a patent-protected design and easy assembly. It ensures enhanced safety for industrial and commercial electrical installations while maintaining high operational endurance.
Technical Specifications
Performance Metrics
32 A
Rated Current
2.5 kA
Breaking Capacity
30 mA
Sensitivity
Approvals & Standards
CECCCIEC/EN 61009-1GB 16917.1
Detailed Technical Data
| Feature | Specification |
|---|---|
| Poles | 2 |
| Rated Voltage | 110V AC, 220V AC |
| Trip Type (Short Circuit) | Electro-magnetic |
| Trip Type (Over Load) | Thermal / Bimetallic(2E) |
| Trip Type (Ground Fault) | Electronic |
| Electrical Endurance | 1000 operations |
| Mechanical Endurance | 2000 operations |
- Physical Dimensions
- 70mm x 32mm x 53mm
Product Features
- Key Advantages
- Compact SizeEasy AssemblyPatent DesignTriple ProtectionBakelite & Plastic Body
