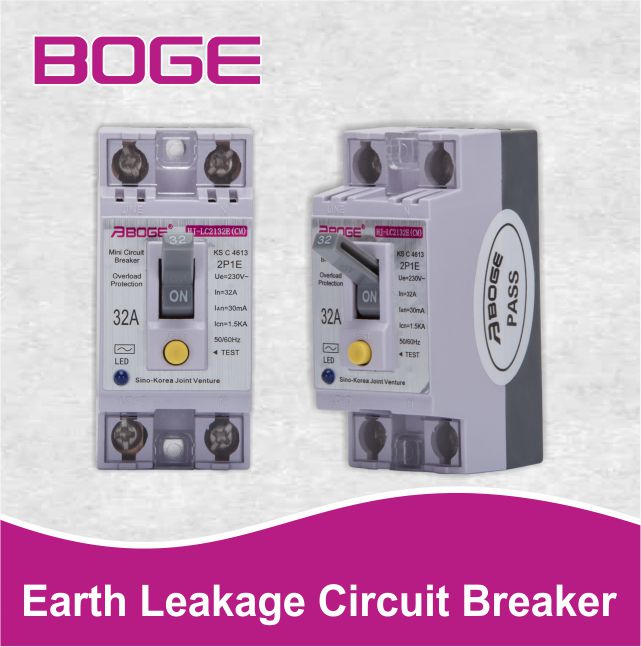

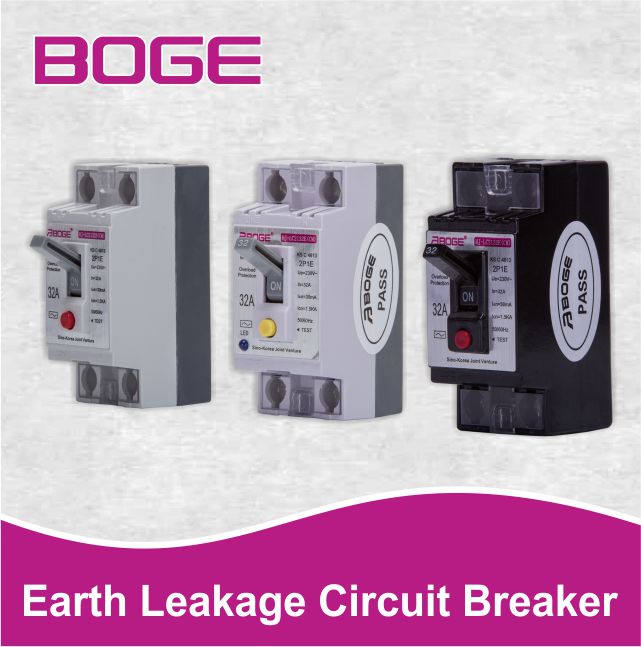

32A Earth Leakage Circuit Breaker with LED Indicator
This earth leakage circuit breaker protects against electrical shock by quickly disconnecting a circuit when leakage is detected. It features an LED indicator for visual confirmation and a test button for verifying functionality.
Technical Specifications
Overview
Safety and Reliability
This Earth Leakage Circuit Breaker (ELCB) is designed to provide comprehensive protection against electrical hazards, including overloading, short circuits, leakage currents, and over-voltage conditions. Featuring an integrated LED indicator for real-time status monitoring and a built-in test function, it ensures reliable and safe operation for AC230V electrical systems. Built with durable materials like a nylon cover and BMC base, this device is engineered for consistent performance in demanding electrical environments.
Electrical Specifications
Available Rated Currents
- 10
- 16
- 20
- 25
- 32
- 40
Rated Residual Operating Current (IΔn)
- 15
- 30
- Rated Voltage (Ue)
- 230 V
- Rated Short-Circuit Breaking Capacity (Icn)
- 1.5 KA
- Operating Frequency
- 50/60Hz
Design & Construction
Pole Configuration
- Construction Materials
- Nylon CoverBMC Base
- Key Features
- LED IndicatorTest ButtonOverload ProtectionShort Circuit ProtectionOver-voltage Protection
Compliance & Standards
- Compliance Standards
- KS C 4613
