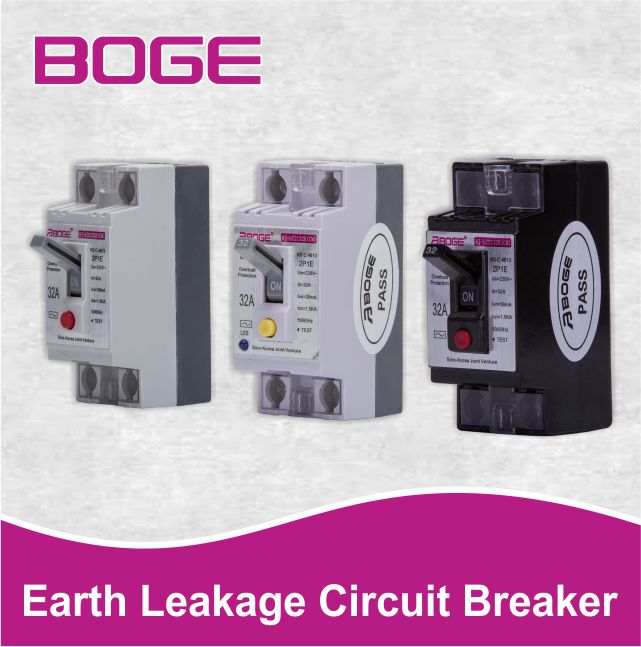

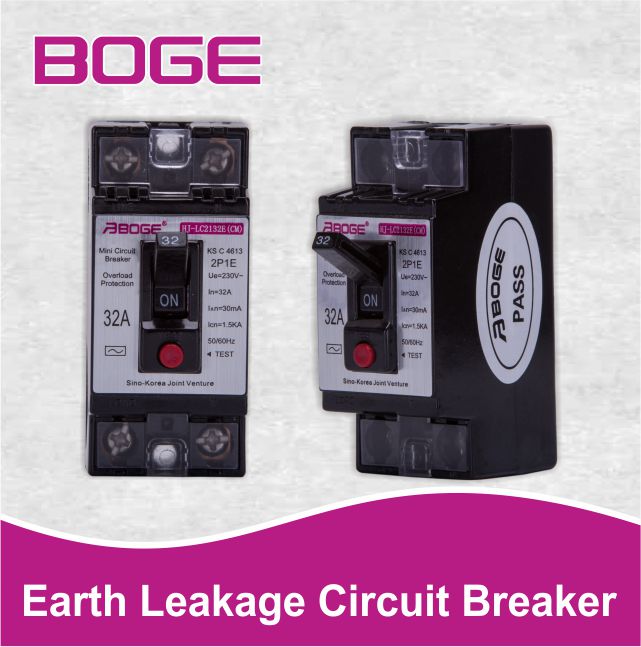

32A Earth Leakage Circuit Breaker
This earth leakage circuit breaker offers overload protection. Rated at 32A, it is designed for 2P1E circuits and includes a test function.
Technical Specifications
Overview
High-Performance Earth Leakage Circuit Breaker
This Earth Leakage Circuit Breaker (ELCB) provides comprehensive protection for electrical circuits, guarding against overloading, short circuits, and leakage currents. Designed for reliability and safety, it features a 2P1E configuration and is suitable for 230V AC systems. With its robust construction and integrated test functionality, this breaker is an essential component for maintaining safe electrical installations.
Electrical Ratings
Rated Current Options
- 10
- 16
- 20
- 25
- 32
- 40
Rated Residual Operating Current
- 15
- 30
- Rated Voltage
- 230V AC
- Short-Circuit Breaking Capacity
- 1.5 kA
- Operating Frequency
- 50/60 Hz
Technical Specifications
Pole Configuration
2P1E2P2E
Physical Dimensions
70 mm
Height
37 mm
Width
Construction Materials
| Component | Material |
|---|---|
| Cover | Nylon |
| Base | Bakelite |
Features
- Protection Functions
- OverloadShort CircuitLeakageOver-voltage
- Additional Features
- Test ButtonLED Indicator
