Overview
Reliable Control for HVAC Systems

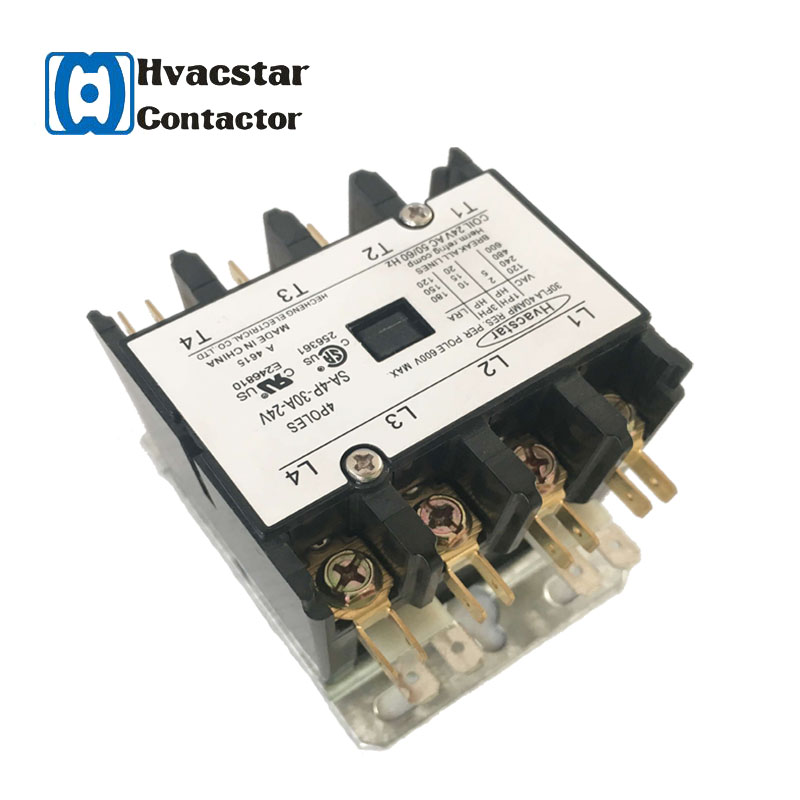

The SA Series 4-Pole contactor is engineered specifically for demanding HVAC and refrigeration applications. Built for long-term reliability, it offers high-performance switching capability with an electrical lifespan of up to 250,000 cycles under resistance loads. With a universal design suitable for both single and three-phase systems, this contactor ensures consistent control for hermetic compressors and other critical cooling infrastructure.
Technical Specifications
- Rated Current
- 30 A
- Pole Configuration
- 4-Pole
- Operating Voltage
- 24V-480V
- Coil Voltage
- 24V AC
- Frequency
- 50/60 Hz
Durability and Standards
Operating Lifespan
250,000 cycles
Resistance Load
100,000 cycles
Horsepower Load
1,000,000 cycles
Mechanical
- Certifications
- ULcUL US
Performance Ratings
Horsepower Performance Table
| Voltage (VAC) | Horsepower (HP) | LRA (A) |
|---|---|---|
| 120 | 2 | 180 |
| 240 | 5 | 180 |
| 480 | 10 | 150 |
| 600 | 20 | 120 |
