30A 20A Multi-Position Rotary Changeover Switch
This rotary switch is designed to isolate power to specific operation areas. It is suitable for installation in industrial machines and electrical panels for selecting different voltage measurements.
Technical Specifications
Product Overview
Industrial Rotary Changeover Switches
These multi-position rotary switches are engineered for reliable power isolation and measurement selection in industrial electrical systems. Designed to comply with international standards including IEC/EN60204 and VDE0113, they are essential components for industrial machinery and control panels. These switches facilitate precise voltage and current monitoring through dedicated voltmeter and ammeter configurations, ensuring safe and efficient operation.
Technical Specifications
Rated Current
20 A
Rated Current
30 A
Rated Current
- Compliance Standards
- IEC/EN60204VDE0113

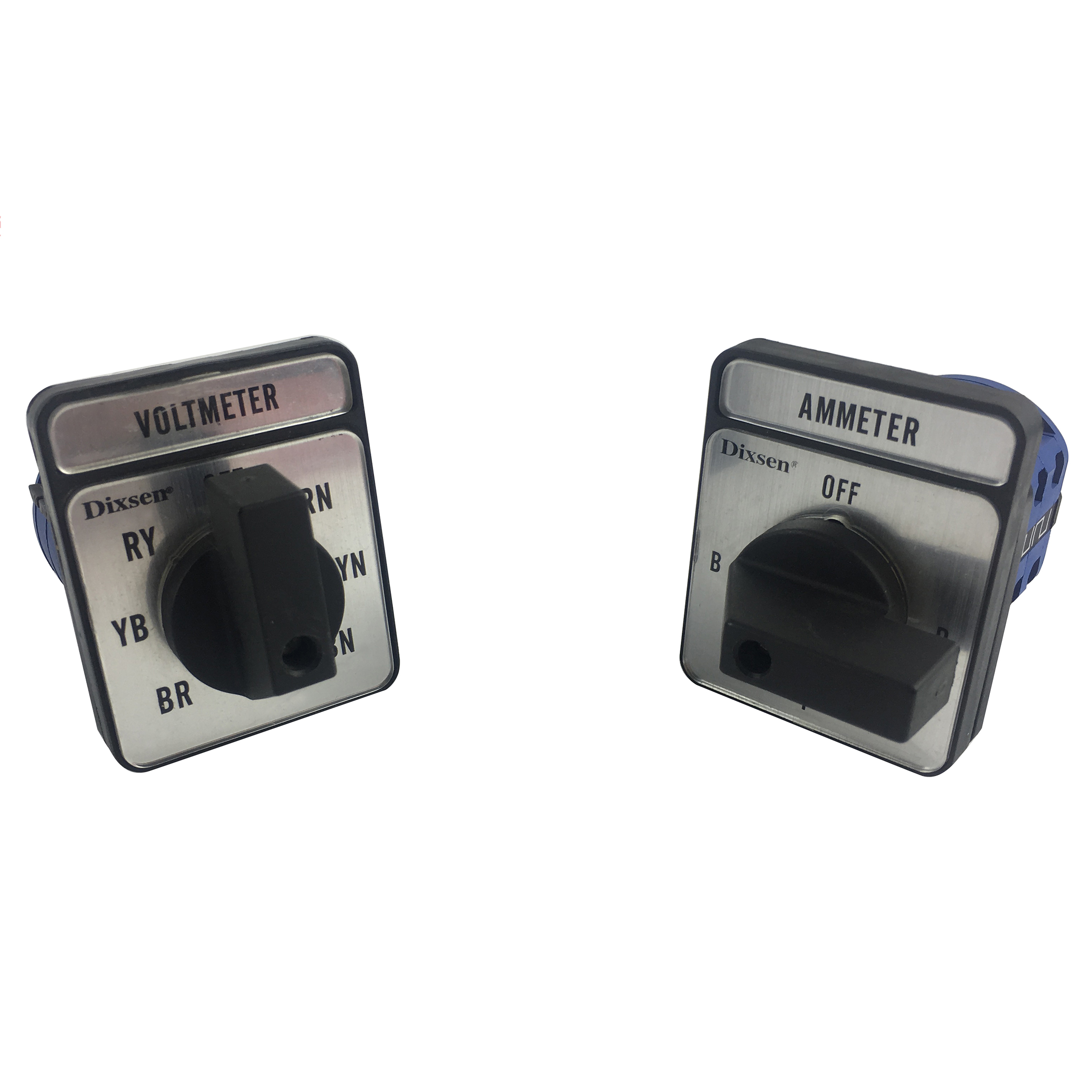

Switch Configurations

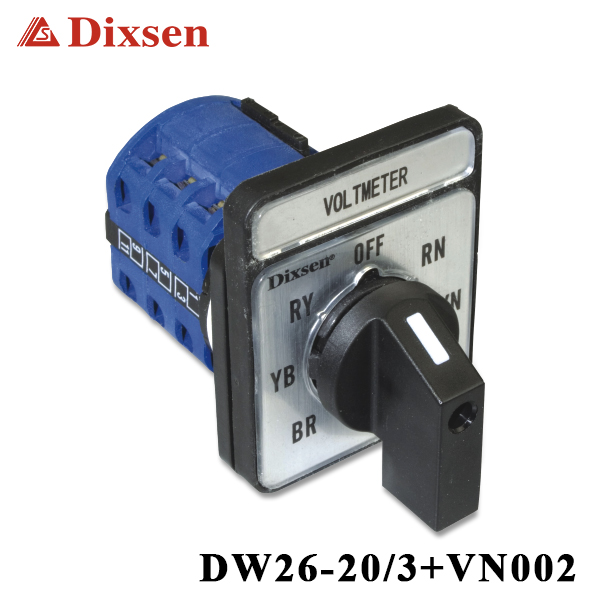

Voltmeter Switch Positions
- OFF
- RN
- RY
- YB
- BR
- YN
- BN
Ammeter Switch Positions
- OFF
- B
- Y
Application & Usage
Primary Applications
Electrical PanelsDistribution BoardsIndustrial MachineryControl Systems
