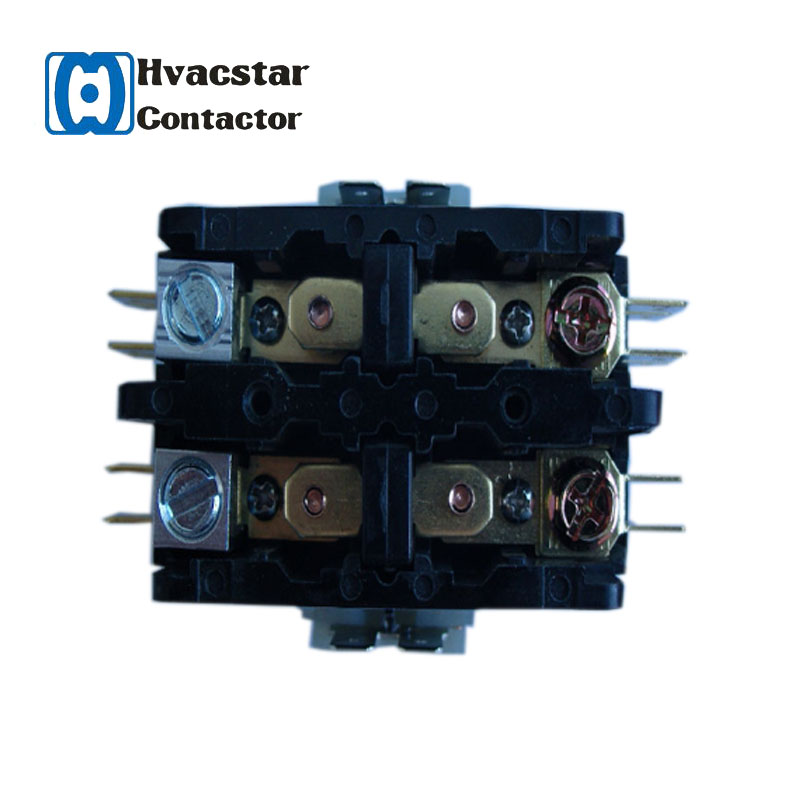

30A 2-Pole Contactor for HVAC
This 2-pole, 30A contactor is designed for HVAC and refrigeration applications. It utilizes silver cadmium oxide contacts for reliable performance in demanding environments.
Technical Specifications
Product Overview
Professional Grade HVAC Contactor
This SA Series 2-pole contactor is engineered specifically for demanding HVAC and refrigeration applications. It provides reliable switching performance for compressors, motors, and other inductive loads across a wide voltage range. With robust construction designed for long-lasting operation, it is an essential component for air conditioning systems requiring consistent electrical control.
Electrical Specifications
- Rated Current
- 30 A
- Voltage Range
- 24V-480V
- Number of Poles
- 2
Performance Metrics
Lifespan Rating
250,000 cycles
Resistance Load Cycles
100,000 cycles
Horsepower Load Cycles
1,000,000 cycles
Mechanical Life Cycles
Technical Details
Contact Ratings
| VAC | HP | FLA | LRA | RES |
|---|---|---|---|---|
| 120 | 1.5 | 16 | 96 | 30 |
| 208/240 | 3 | 12 | 72 | 30 |
| 277 | 3 | 9.6 | 58 | 30 |
Installation Parameters
- Torque Force: 25 LB-IN (2.8 Nm)
- Class B Insulation
- Compact design for tight spaces
