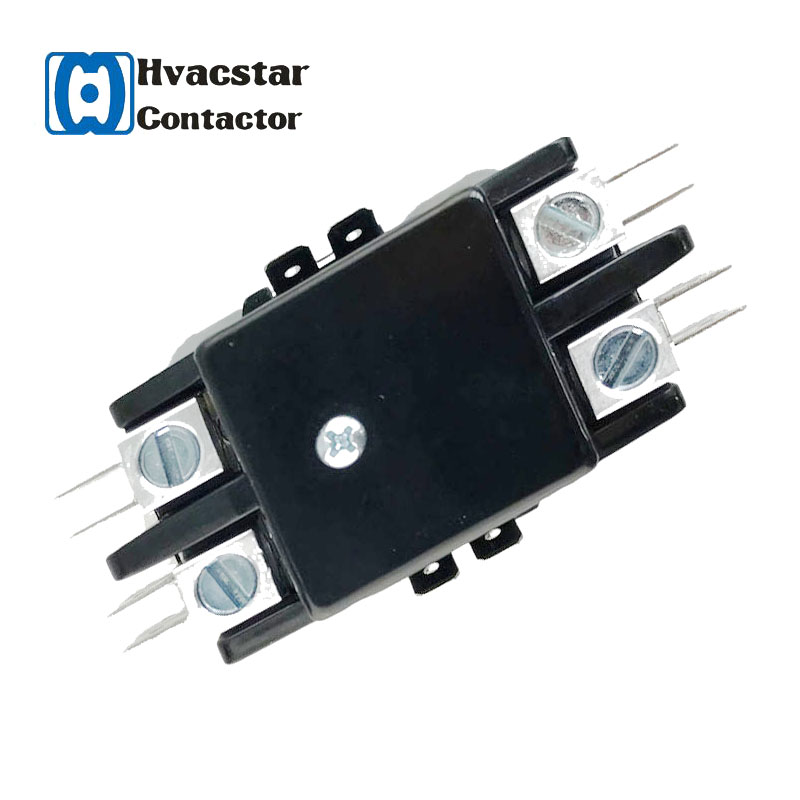

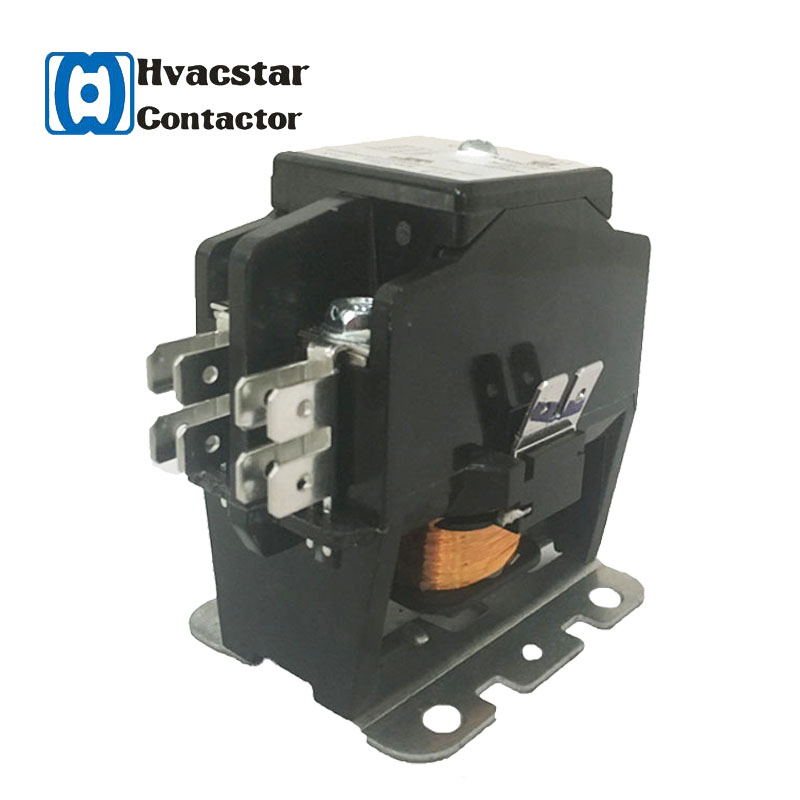

30A 2-Phase HVAC Definite Purpose Contactor
This 2-phase contactor is designed for definite purpose HVAC applications. It offers convenient wire connection methods including quick connect terminals, screws, or box lugs.
Technical Specifications
Product Overview
Professional HVAC Contactor
This 2-phase definite purpose contactor is engineered for reliable performance in HVAC and refrigeration systems. It features a compact, durable design that supports flexible installation with multiple wire connection methods, including quick connect terminals, screws, or box lugs. Designed to meet rigorous industry standards, this contactor provides efficient switching for compressors, fan motors, and other electrical loads.
Electrical Specifications

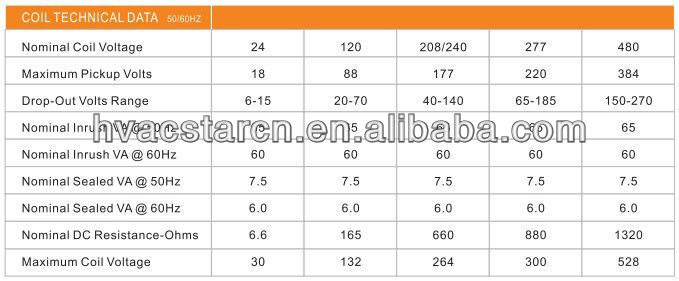

Available Coil Voltages
- 24V
- 120V
- 208/240V
- 277V
- 480V
- Rated Current
- 30 A
- Phase Configuration
- 2
- Insulation Class
- Class B (130°C)
Mechanical & Installation

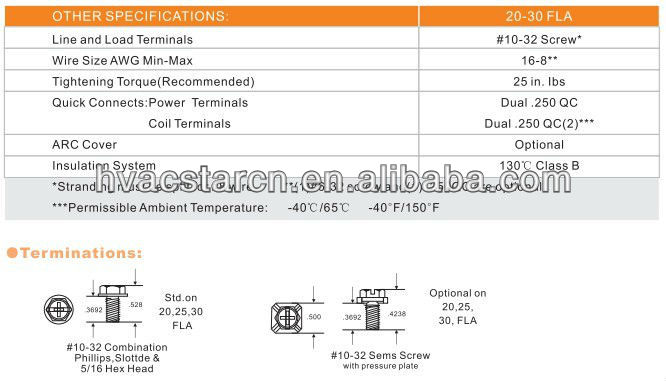

Terminal Specifications
| Feature | Specification |
|---|---|
| Line/Load Terminals | #10-32 Screws |
| Wire Size Range | 16-8 AWG |
| Recommended Torque | 25 in-lbs |
| Power Terminals | Dual .250 QC |
- Wire Connection Options
- Quick ConnectScrewsBox Lugs
Environmental & Compliance
Certifications
ULcULCE
- Ambient Temperature Range
- -40°C to 65°C (-40°F to 150°F)
Accessories
Optional Features
- Auxiliary Switches
- Arc Cover
