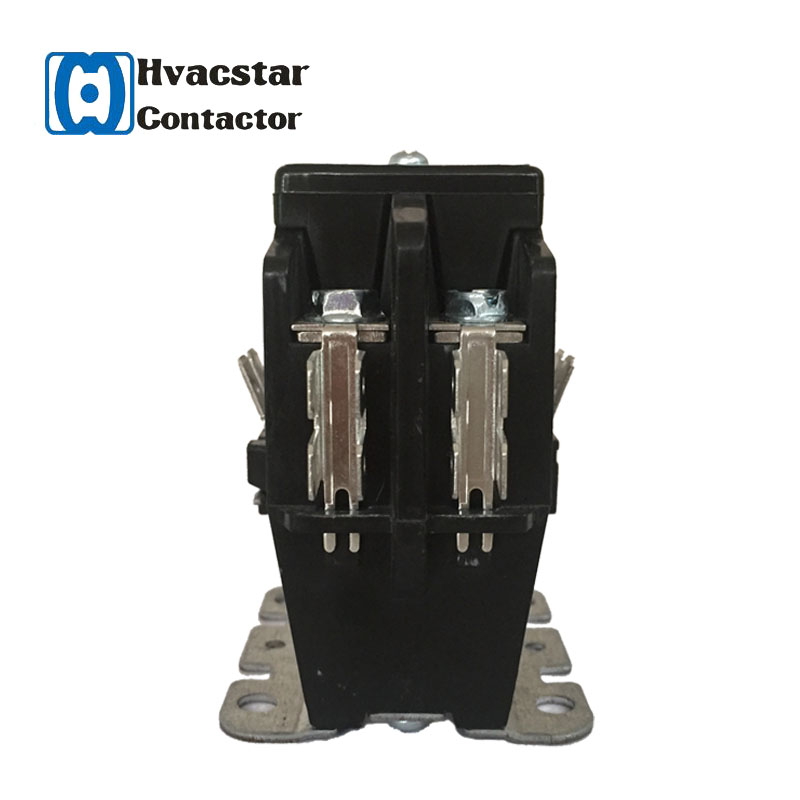

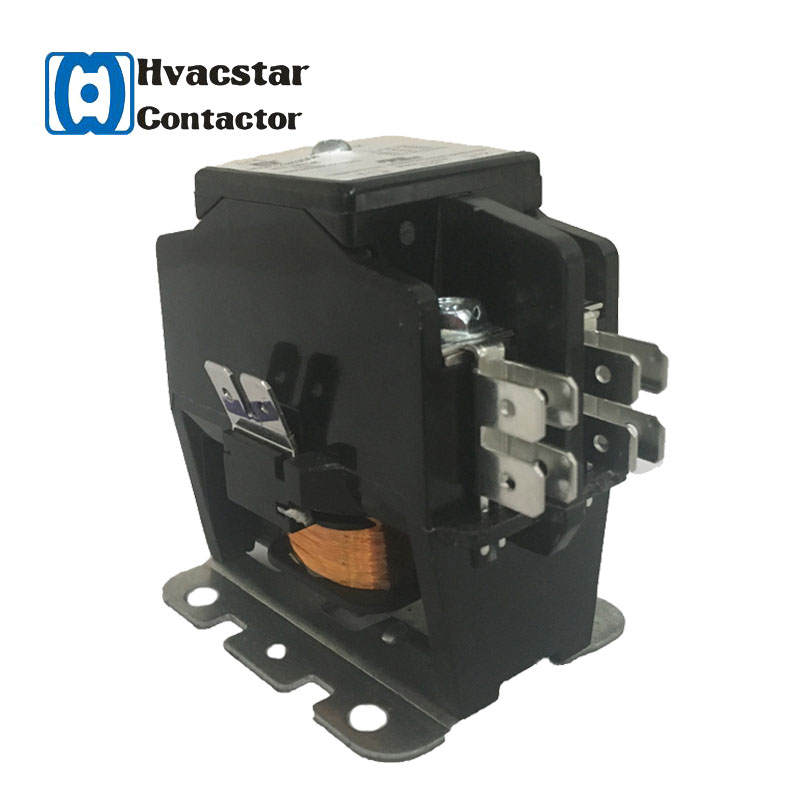

30 Amp 2-Pole Electrical Contactor
This 30 amp 2-pole contactor is designed for controlling electrical circuits. It is commonly used in refrigeration, air conditioning, and heating systems.
Technical Specifications
Overview
Professional Grade Electrical Contactor
This 2-pole electrical contactor is engineered to meet rigorous electrical and mechanical standards for HVAC&R applications. Designed for reliability, it features a robust construction suitable for controlling high-current circuits, including hermetic refrigeration compressors. It provides versatile voltage compatibility and secure terminal connections, making it an essential component for professional electrical installations.
Technical Specifications
Terminal Torque Specifications
- Screws: 20 in-lbs
- Lugs: 40 in-lbs
- Number of Poles
- 2
- Coil Voltage
- 208/240VAC
- Frequency
- 50/60Hz
- Certifications
- cULusCSA
Performance Ratings
Electrical Performance Ratings
| FLA | Voltage | Locked Rotor Amps |
|---|---|---|
| 20 | 240V | 120 |
| 20 | 277V | 120 |
| 20 | 480V | 100 |
| 20 | 600V | 80 |
| 25 | 240V | 150 |
| 25 | 277V | 150 |
| 25 | 480V | 125 |
| 25 | 600V | 100 |
| 30 | 240V | 180 |
| 30 | 277V | 180 |
| 30 | 480V | 135 |
| 30 | 600V | 110 |
