Technical Specifications
Product Overview
Industrial Control Versatility

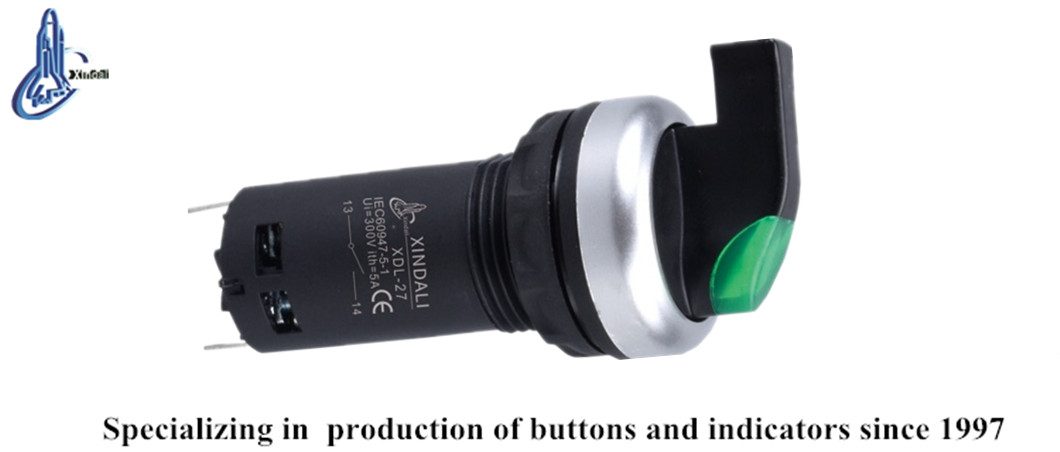

This 3-position selector switch with a long handle is engineered for robust industrial control applications, including signal and interlocking systems. It features a durable construction utilizing zinc alloy and high-grade anti-flam plastic with silver alloy contacts for superior electrical erosion resistance. The design is fully compliant with international safety standards, making it a reliable component for demanding control panels and machinery.
Technical Specifications
Electrical Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Heating Current
Performance Metrics
| Parameter | Value |
|---|---|
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Withstand Voltage | AC 2.5KV/min |
| Signal Lamp Brightness | 60cd/m2 |
Mechanical Life Cycles
- Pushbutton: 1,000,000 operations
- Selector Switch: 500,000 operations
Compliance & Quality
- Certifications
- CEISO 9001RoHSULIEC60947-5-1
