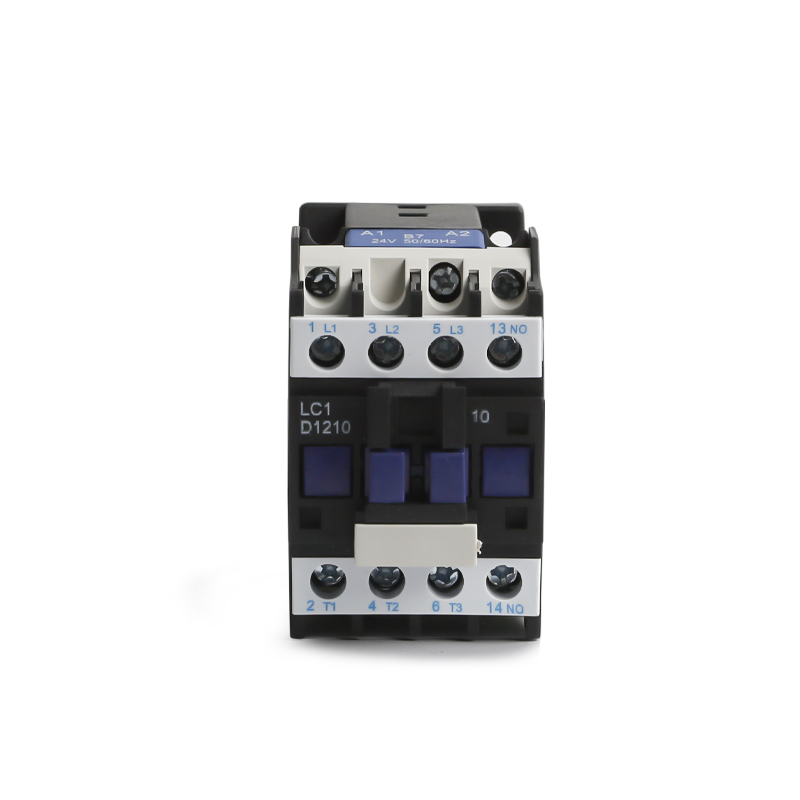

3-Pole Electrical Contactor 24V
This 3-pole contactor is designed for switching electrical circuits. It has a 24V 50/60Hz coil and auxiliary contacts 13 NO and 14 NO.
Technical Specifications
Overview
High-Performance 3-Pole Contactor
This 3-pole electrical contactor is engineered for reliable remote switching of power circuits in demanding industrial environments. Designed for efficiency and safety, it features a 24V coil voltage and is suitable for high-power electrical appliance control, including central air conditioning systems. The unit complies with international standards, ensuring robust performance and durability for professional electrical applications.
Electrical Ratings
- Coil Voltage
- 24 V
- Rated Insulation Voltage (Ui)
- 690 V
- Rated Thermal Current (Ith)
- 25 A
Performance Metrics
AC3 Power Ratings
4 kW
220/230V
5.5 kW
380/415V
5.5 kW
660/690V
- AC3 Rated Current
- 7.9 A
Compliance & Standards
- Certifications & Standards
- IEC 60947GB 14048.4VDE 0660CE
Technical Details
Terminal Layout
| Function | Terminals |
|---|---|
| Main Input | 1 L1, 3 L2, 5 L3 |
| Main Output | 2 T1, 4 T2, 6 T3 |
| Auxiliary Contacts | 13 NO, 14 NO |
- Model Number
- LC1-D1210
