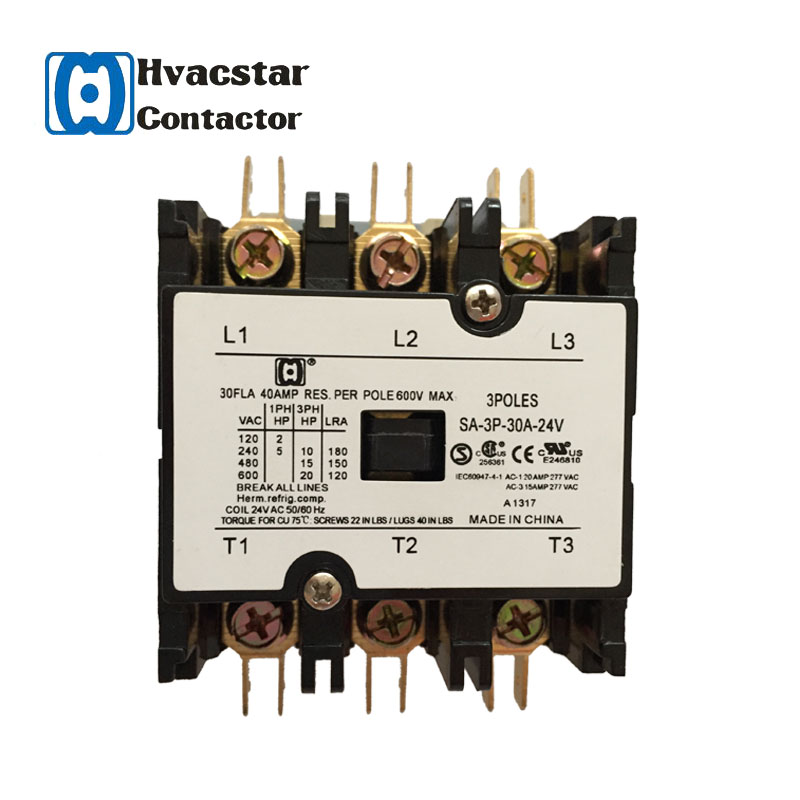

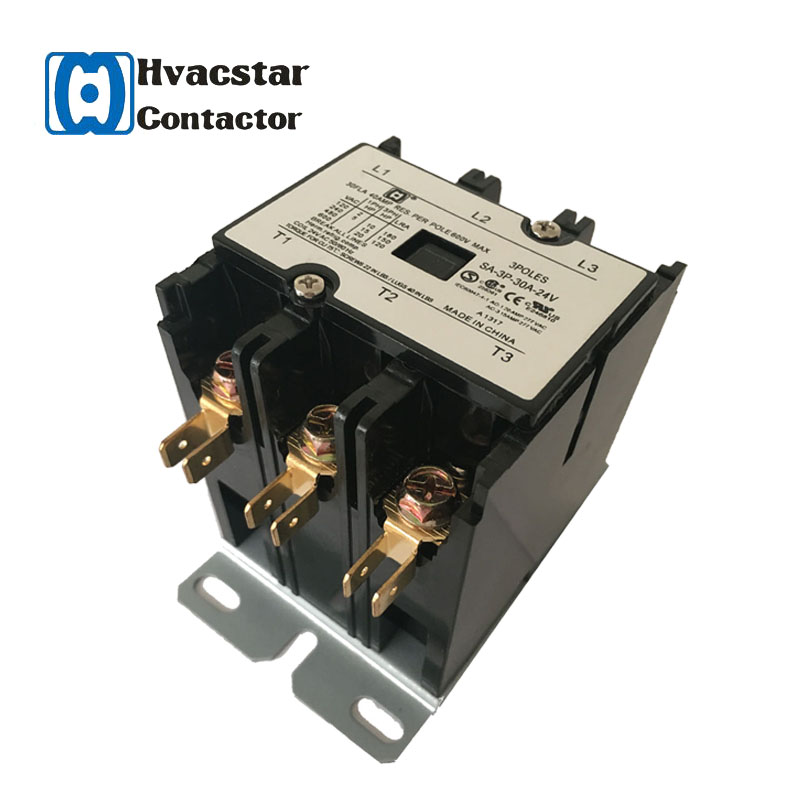

3-Pole Contactor 30A
This 3-pole contactor is designed for HVAC and refrigeration applications. It is rated for 30A and features silver cadmium oxide contacts for reliable switching of electrical circuits.
Technical Specifications
Product Overview
Industrial Contactor Overview
This 3-pole SA Series contactor is engineered for robust performance in HVAC and refrigeration applications. It provides reliable control for compressors, fans, and motor-driven equipment across diverse industrial environments. Built for durability, it features high electrical and mechanical endurance, ensuring long-term operational consistency.
Electrical Specifications
- Rated Current
- 30 A
- Voltage Range
- 24V-480V
- Coil Voltage
- 24V AC 50/60 Hz
Performance Metrics
Key Performance Metrics
250,000 cycles
Electrical Life (Resistance Load)
100,000 cycles
Electrical Life (Horsepower Load)
1,000,000 cycles
Mechanical Life
Technical Standards
Recommended Torque (CU 75°C)
| Component | Torque Value |
|---|---|
| Screws | 22 in-lbs |
| Lugs | 40 in-lbs |
- Certifications
- CEIEC60947-4-1
