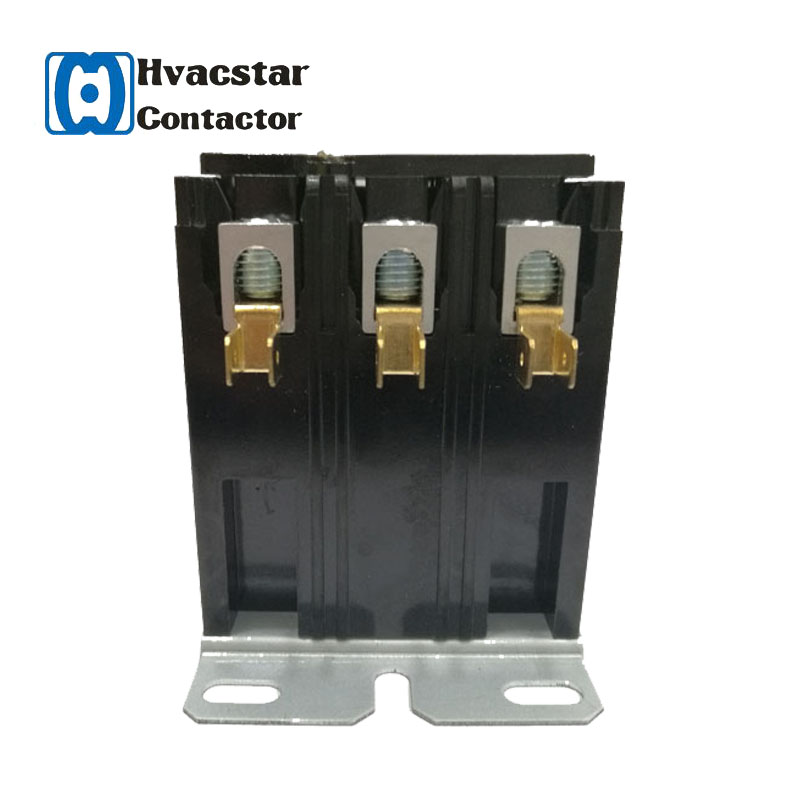

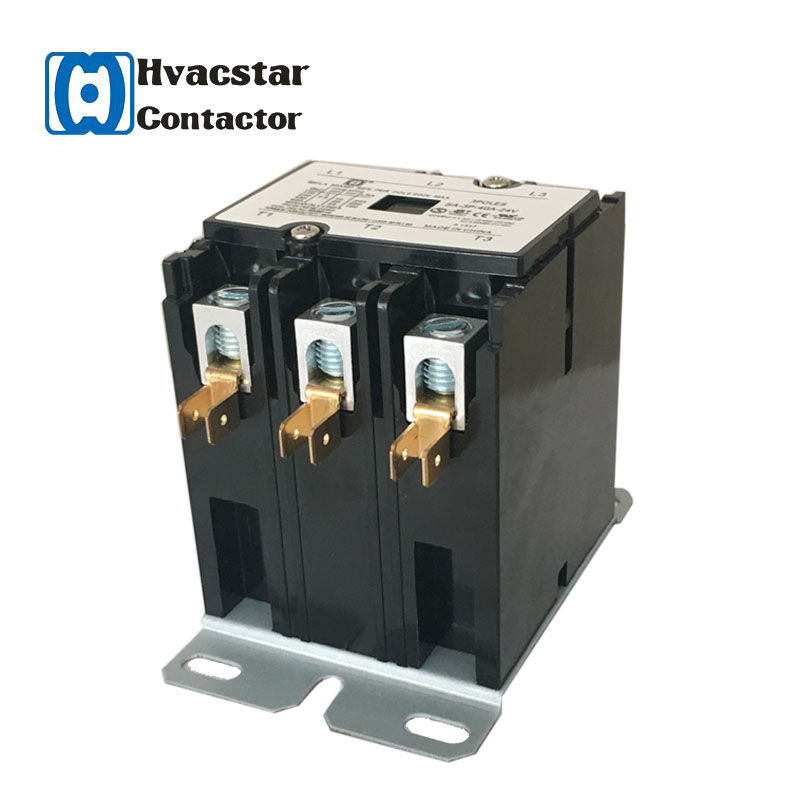

3-Pole AC Magnetic Contactor for HVAC
This 3-pole AC magnetic contactor is designed for HVAC applications. It is suitable for use in air conditioning, refrigeration, resistive heating, and lighting systems.
Technical Specifications
Overview
High-Performance Definite Purpose Contactor
This 3-pole AC magnetic contactor is engineered for demanding commercial applications including HVAC, refrigeration, resistive heating, and lighting systems. Designed to meet or exceed USA/Canada electrical and mechanical standards, it provides a low-cost yet high-performance solution for reliable circuit switching. Its robust construction ensures a long service life in professional installations.
- Compliance & Certifications
- cUL ListedCEIEC 60947-4-1USA/Canada DP Standard
Electrical Ratings
Rated Current (FLA)
40 A
Full Load Amps
50 A
Resistive Amps
- Number of Poles
- 3
- Maximum Voltage
- 600 V
Horsepower Ratings
Horsepower by Voltage & Phase
| Voltage | Phase | Horsepower (HP) |
|---|---|---|
| 120V | 1-Phase | 3 |
| 240V | 1-Phase | 7.5 |
| 240V | 3-Phase | 10 |
| 480V | 3-Phase | 20 |
| 600V | 3-Phase | 25 |
Coil Specifications
Available Coil Voltages
- 24 VAC
- 110/120 VAC
- 208/240 VAC
- 277 VAC
- 480 VAC
Coil Performance (50/60Hz)
| Metric | Value |
|---|---|
| Nominal Inrush VA | 60-65 VA |
| Nominal Sealed VA | 6.0-7.5 VA |
| Insulation System | 130°C Class B |
Physical & Installation
- Contact Material
- Silver Cadmium Oxide
- Terminal Type
- Box Lugs and Dual .250 Quick Connects
- Wire Size Range
- 14-4 AWG (Cu/Al)
- Tightening Torque
- 40 in-lbs for Lugs / 22 in-lbs for Screws
- Operating Temperature
- -40°C to 65°C (-40°F to 150°F)
- Approximate Weight
- 0.45 kg
