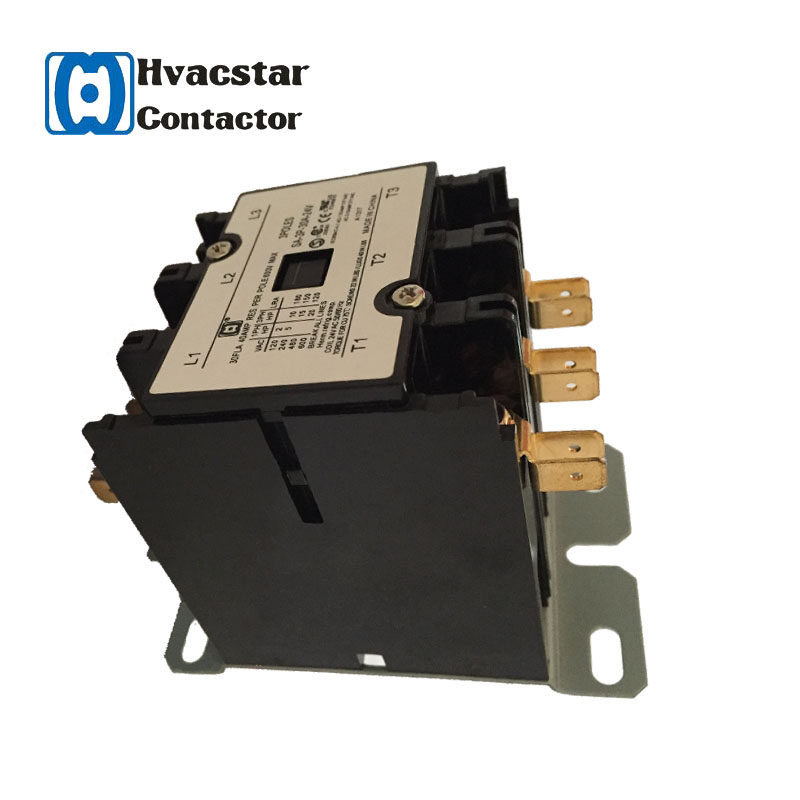

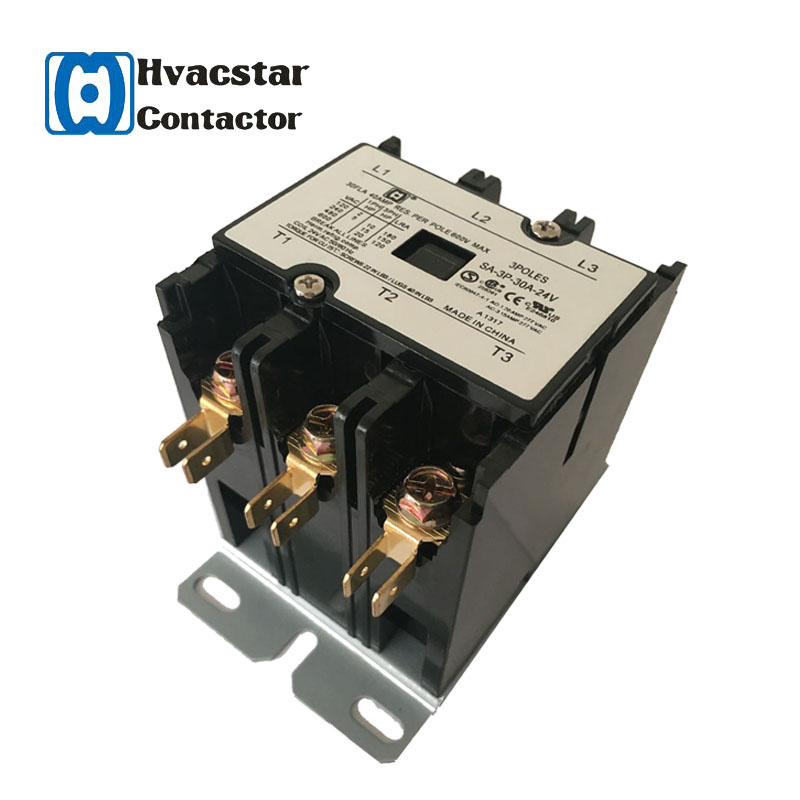

3-Pole AC Definite Purpose Contactor
These definite purpose contactors are used in heating, air conditioning, refrigeration, data processing, and food service equipment. The contactors are available in 2, 3, and 4-pole configurations.
Technical Specifications
Overview
Professional HVAC Contactor
This 3-pole definite purpose contactor is engineered specifically for reliable switching in HVAC and refrigeration systems. It features a robust magnetic design capable of handling high-current loads across multiple voltage configurations. Designed for durability and safety, this component is CUL certified and built to break all lines, ensuring optimal performance in demanding electrical environments.
Electrical Ratings
- Full Load Amps (FLA)
- 30 A
- Resistive Load per Pole
- 40 A
- Coil Voltage
- 24VAC
- Maximum Voltage Rating
- 600 V
Performance Specifications
Performance by Voltage
| Voltage (VAC) | Horsepower (HP) | Locked Rotor Amps (LRA) |
|---|---|---|
| 120 | 2 | 180 |
| 240 | 5 | 180 |
| 480 | 10 | 150 |
| 600 | 15 | 120 |
Mechanical & Installation
- Pole Configuration
- 3-Pole
- Terminal Torque
- 35-40 lb-in
Certifications & Compliance
- Certifications
- CUL CertifiedCE
- Country of Origin
- China
